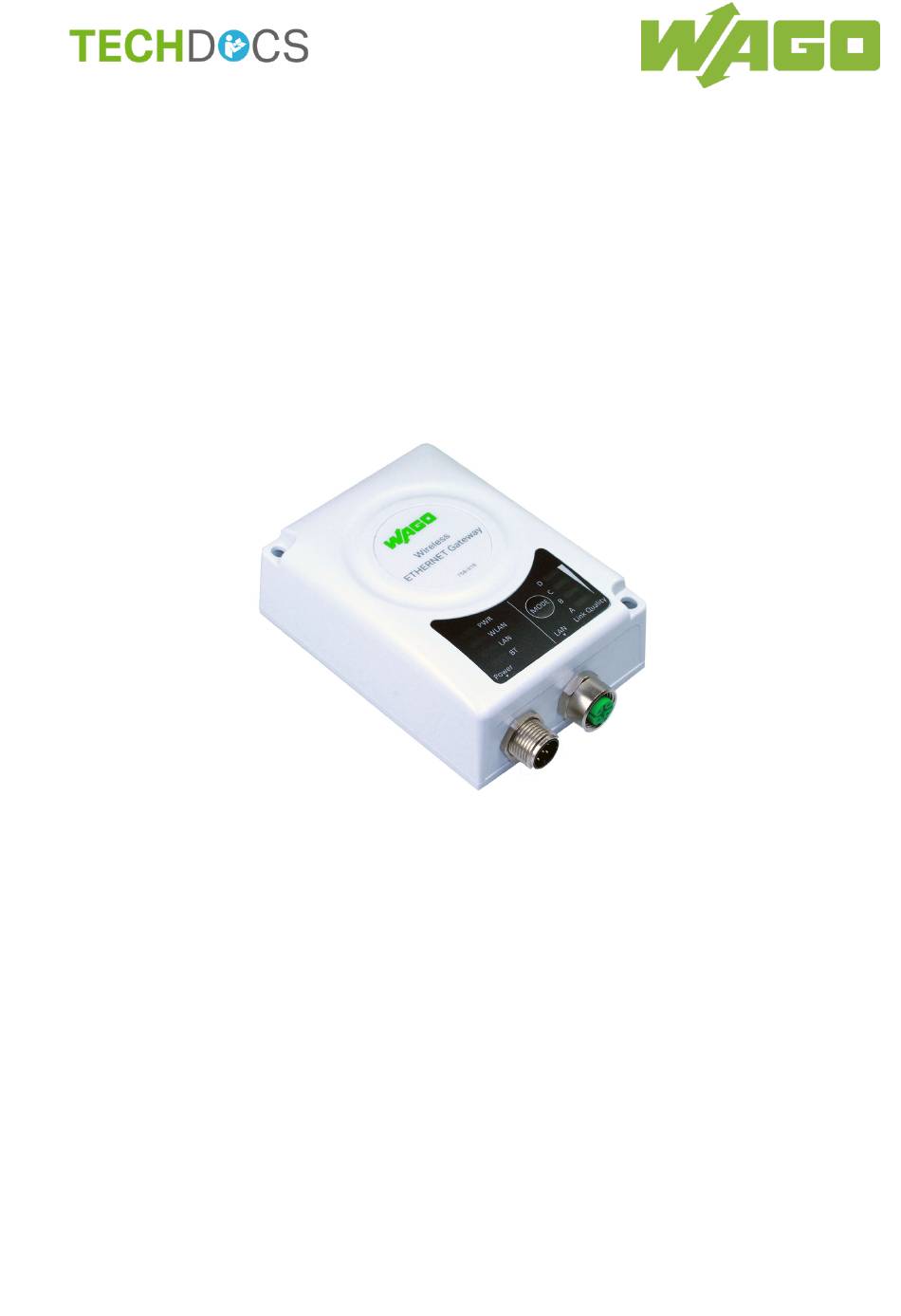

Pos: 2 /Dokumentation allgemein/Einband/Einband Handbuch - Frontseite 2017 - mit DocVariablen (Standard) @ 28\mod_1486477502910_0.docx @ 405388 @ @ 1
Manual

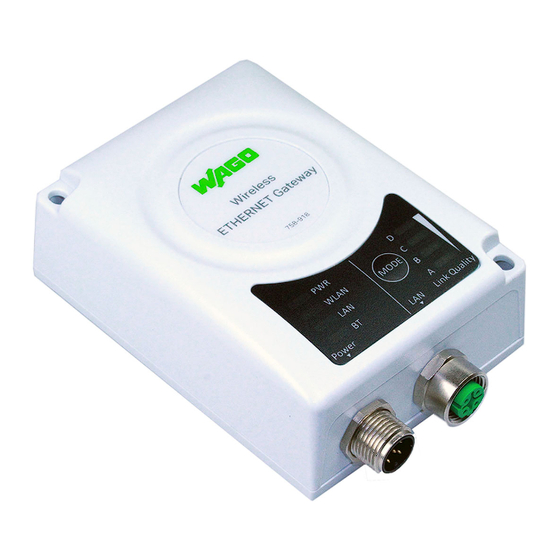

WAGO-I/O-SYSTEM 758
758-918
Wireless ETHERNET Gateway
Wireless Transmission Link
for ETHERNET Protocols
Version 1.0.2
Pos: 3 /Alle Serien (Allgemeine Module)/Rechtliches, Allgemeines/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.docx @ 21060 @ @ 1
Advertisement
Chapters
Table of Contents
Related Manuals for WAGO 758-918
Summary of Contents for WAGO 758-918
- Page 1 Pos: 2 /Dokumentation allgemein/Einband/Einband Handbuch - Frontseite 2017 - mit DocVariablen (Standard) @ 28\mod_1486477502910_0.docx @ 405388 @ @ 1 Manual WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Wireless Transmission Link for ETHERNET Protocols Version 1.0.2 Pos: 3 /Alle Serien (Allgemeine Module)/Rechtliches, Allgemeines/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.docx @ 21060 @ @ 1...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. === Ende der Liste für Textmarke Einband_vorne === Manual...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 758 Table of Contents 758-918 Wireless ETHERNET Gateway Pos: 5 /Dokumentation allgemein/Verzeichnisse/Inhaltsverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219151230875_21.docx @ 21063 @ @ 1 Table of Contents Notes about this Documentation .............. 5 Copyright....................5 Symbols ....................6 Number Notation ..................8 Font Conventions .................. - Page 4 Table of Contents WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Configurations via Web-Based Management (WBM) ......37 7.4.1 WBM “System Overview” Page ............38 7.4.2 WBM “Easy Config” Page ..............39 7.4.3 WBM “Network Settings” Page ............42 7.4.4 WBM “WLAN Settings” Page ............44 7.4.4.1...
-
Page 5: Notes About This Documentation
Pos: 9 /Serie 758 (Funk, IPC)/Hinweise zur Dokumentation/Gültigkeitsbereich Dokumentation WEG 758-xxxx, aufgelistete Varianten @ 31\mod_1517215734587_21.docx @ 474919 @ @ 1 This documentation applies to the Wireless ETHERNET Gateway 758-918 listed in the following table. Pos: 10 /Serie 758 (Funk, IPC)/Hinweise zur Dokumentation/Variantentabelle 758-918 @ 31\mod_1517215927655_21.docx @ 474923 @ @ 1 Table 1: Variants Item No./Variant... -
Page 6: Symbols
Notes about this Documentation WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 11.4 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Symbole - Überschrift 2 @ 13\mod_1351068042408_21.docx @ 105270 @ 2 @ 1 Symbols Pos: 11.5.1 /Alle Serien (Allgemeine Module)/Sicherheits- und sonstige Hinweise/Gefahr/Gefahr: _Warnung vor Personenschäden allgemein_ - Erläuterung @ 13\mod_1343309450020_21.docx @ 101029 @ @ 1... - Page 7 WAGO-I/O-SYSTEM 758 Notes about this Documentation 758-918 Wireless ETHERNET Gateway Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos: 11.6 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1 Manual...
-
Page 8: Number Notation
Notes about this Documentation WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 11.7 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Darstellung der Zahlensysteme - Überschrift 2 @ 23\mod_1435647128078_21.docx @ 184811 @ 2 @ 1 Number Notation Pos: 11.8 /Alle Serien (Allgemeine Module)/Rechtliches, Allgemeines/Zahlensysteme @ 3\mod_1221059454015_21.docx @ 21711 @ @ 1... -
Page 9: Important Notes
These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •... - Page 10 Further details are given in the contractual agreements. Please send your request for modified and new hardware or software configurations directly to WAGO Kontakttechnik GmbH & Co. KG. Pos: 20 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1 Manual...
-
Page 11: Special Use Conditions For Ethernet Devices
• Do not connect control components and control networks to an open network such as the Internet or an office network. WAGO recommends putting control components and control networks behind a firewall. • Limit physical and electronic access to all automation components to authorized personnel only. -
Page 12: Storage, Assembly And Transport
WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 23 /Serie 750 (WAGO-I/O-SYSTEM)/Systembeschreibung/Gerät und System/Lagerung, Kommissionierung und Transport @ 3\mod_1225446600609_21.docx @ 24897 @ 2 @ 1 Storage, Assembly and Transport Whenever possible, the components are to be stored in their original packaging. -
Page 13: Safety Advice (Precautions)
WAGO-I/O-SYSTEM 758 Important Notes 758-918 Wireless ETHERNET Gateway Pos: 25.1 /Serie 758 (Funk, IPC)/Wichtige Erläuterungen/Sicherheitshinweise- und sonstige Hinweise/Gefahr/Gefahr: 758-91x Wireless ETHERNET-Gateways (+ Ü2 und Einleitungssatz) @ 30\mod_1501769445391_21.docx @ 457317 @ 2 @ 1 Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the... - Page 14 Ethernet cable is used, in order to meet emission requirements. Pos: 25.7 /Serie 758 (Funk, IPC)/Wichtige Erläuterungen/Sicherheitshinweise- und sonstige Hinweise/Hinweis/Hinweise: 758-918 Wireless ETHERNET-Gateway @ 30\mod_1501769835690_21.docx @ 457327 @ @ 1 Device uses radio waves! Never use the device in areas where operation of radio equipment is prohibited.
- Page 15 Variants 758-918/000-001: Use the included antenna only! The scope of delivery for Variant 758-918/000-001 includes the right external antenna. Connecting any other external antenna may result in the loss of transmission approval. Use the included antenna only.
-
Page 16: Device Description
WEG is also possible via a Web-based Management System (WBM). Depending on the application, the unit can be operated in various modes. Pos: 28.3 /Serie 758 (Funk, IPC)/Wichtige Erläuterungen/Sicherheitshinweise- und sonstige Hinweise/Hinweis/Hinweis: 758-918 Einschränkungen @ 30\mod_1512650180521_21.docx @ 471589 @ @ 1 Manual... - Page 17 WAGO-I/O-SYSTEM 758 Device Description 758-918 Wireless ETHERNET Gateway Restrictions ® • The Bluetooth PAN (Personal Area Network) may not work with your ® own devices. The reason is the different implementation of Bluetooth various manufacturers. ® • 5 GHz WLAN cannot be used with 2.5 GHz WLAN or Bluetooth at the same time.
-
Page 18: View
Pos: 28.6 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Ansicht - Überschrift 2 @ 4\mod_1240984217343_21.docx @ 31958 @ 2 @ 1 View Pos: 28.7 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Ansicht/Ansicht 758-918 @ 30\mod_1501672083763_21.docx @ 457035 @ @ 1 Figure 2: View Table 4: Legend for Figure “View”... -
Page 19: Labeling
Pos: 28.9 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Bedruckung - Überschrift 2 @ 4\mod_1241082409515_21.docx @ 32035 @ 2 @ 1 Labeling Pos: 28.10 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Bedruckung/Bedruckung 758-918 @ 30\mod_1501672232181_21.docx @ 457039 @ @ 1 The device MAC address is included with other device data on the nameplate on the right side of the device: Figure 3: Marking on the Right Side –... -
Page 20: Connectors
Pos: 28.12 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Anschlüsse - Überschrift 2 @ 4\mod_1240984262656_21.docx @ 31961 @ 2 @ 1 Connectors Pos: 28.13.1 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Anschlüsse/Anschlüsse 758-918 Einleitung und Spannungsversorgung @ 30\mod_1501682098548_21.docx @ 457074 @ 3 @ 1 The device has two connections: Figure 5: Connections Table 5: Legend for Figure “Connections“... -
Page 21: Network Connection Pin Assignment
WAGO-I/O-SYSTEM 758 Device Description 758-918 Wireless ETHERNET Gateway Pos: 28.13.3 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Anschlüsse/Anschlüsse 758-918 Pinbelegung Netzwerkanschluss @ 30\mod_1501684900931_21.docx @ 457103 @ 3 @ 1 3.4.2 Network Connection Pin Assignment The device can be connected to an ETHERNET network via a 4-pole, D-coded M12 socket. -
Page 22: Display Elements
Pos: 28.15 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Anzeigeelemente - Überschrift 2 @ 4\mod_1240984390875_21.docx @ 31964 @ 2 @ 1 Display Elements Pos: 28.16 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Anzeigeelemente/Anzeigeelemente 758-918 @ 30\mod_1501672325682_21.docx @ 457047 @ @ 1 The current device status is indicated by the 4 LEDs (PWR, WLAN, LAN and BT) on the left side of the WEG. -
Page 23: Table 9: Led Indications - Recovery Mode
WAGO-I/O-SYSTEM 758 Device Description 758-918 Wireless ETHERNET Gateway In Recovery Mode the LEDs will indicate firmware update status: Table 9: LED Indications – Recovery Mode Color/state Meaning Green Firmware update in progress Green blinking Waiting for valid firmware WLAN, Alternating red/blue Firmware update in progress Firmware Update Please contact our Support to perform a firmware update. -
Page 24: Operating Elements
Pos: 28.18 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Bedienelemente - Überschrift 2 @ 4\mod_1239191655456_21.docx @ 30439 @ 2 @ 1 Operating Elements Pos: 28.19 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Bedienelemente/Bedienelement 758-918 - Folientaster @ 30\mod_1501685449116_21.docx @ 457134 @ @ 1 The MODE membrane button is used to reset the service or to trigger certain autoconfiguration operations. -
Page 25: Technical Data
Pos: 28.21 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Technische Daten - Überschrift 2 @ 3\mod_1232967587687_21.docx @ 26924 @ 2 @ 1 Technical Data Pos: 28.22 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Technische Daten/Technische Daten 758-918 @ 30\mod_1501672392134_21.docx @ 457051 @ 33333 @ 1 3.7.1 General Device Data Table 11: Technical Data –... -
Page 26: Ethernet Interface
Device Description WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway ® Table 13: Technical Data – Bluetooth Standard version Wireless standards (profiles) PAN (PANU & NAP) Operation modes Access point or client RF output power 10 dBm Maximum number of slaves 7 (for access point) ®... -
Page 27: Approvals
Device Description 758-918 Wireless ETHERNET Gateway Approvals Pos: 28.24 /Serie 758 (Funk, IPC)/Gerätebeschreibung/Zulassungen/Zulassungen 758-918 Einleitung @ 30\mod_1511273736193_21.docx @ 470975 @ @ 1 The following approvals have been grated for the Wireless ETHERNET Gateway (758-918): Pos: 28.25 /Alle Serien (Allgemeine Module)/Zulassungen/Standardzulassungen/CE (Konformitätskennzeichnung) @ 3\mod_1224494777421_21.docx @ 24276 @ @ 1 Conformity Marking Pos: 28.26 /Alle Serien (Allgemeine Module)/Zulassungen/Standardzulassungen/IC (Industry Canada) - IC ID: 5325A-0965, indoor only (5GHz) @ 30\mod_1511274428248_21.docx @ 470979 @ @ 1... -
Page 28: Mounting
Mounting WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 30 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/Montieren - Überschrift 1 @ 3\mod_1225446744750_21.docx @ 24900 @ 1 @ 1 Mounting Pos: 31 /Serie 758 (Funk, IPC)/Montieren/Aufstellort wählen 758-91x @ 13\mod_1343129095977_21.docx @ 100877 @ 2 @ 1... -
Page 29: Table 17: Selection Of Installation Location
WAGO-I/O-SYSTEM 758 Mounting 758-918 Wireless ETHERNET Gateway Table 17: Selection of Installation Location Ambient Conditions, Installation Location Radio link possible? Distance between devices is more than 400 m. Line-of-sight link between devices that are about 200 m apart. Devices have been optimally installed and configured. -
Page 30: Mounting
Mounting WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 33 /Serie 758 (Funk, IPC)/Montieren/Befestigen 758-918 @ 30\mod_1501767111077_21.docx @ 457266 @ 2 @ 1 Mounting Maintain a minimum distance of 50 cm between two WEGs! Maintain a distance of at least 50 cm between WEGs when installing them. Radio link quality can be degraded on failure to maintain this distance. -
Page 31: Connect Devices
Use a suitable cable, such as WAGO Item 756-3101/040-020, to connect the WEG to the external power supply unit. Pos: 36.3 /Serie 758 (Funk, IPC)/Anschluss Daten- und Versorgungskabel/Anschließen 758-918 - Bild @ 30\mod_1501672518854_21.docx @ 457055 @ @ 1 Figure 11: Connecting the WEG Pos: 36.4 /Serie 758 (Funk, IPC)/Anschluss Daten- und Versorgungskabel/Hinweis: Massebezug des Trigger-Eingangs entstören @ 30\mod_1510917825763_21.docx @ 470619 @ @ 1... -
Page 32: Commissioning
Commissioning WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 38 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/In Betrieb nehmen - Überschrift 1 @ 4\mod_1240901452750_21.docx @ 31570 @ 1 @ 1 Commissioning Pos: 39.1 /Serie 758 (Funk, IPC)/In Betrieb nehmen/In Betrieb nehmen 758-91x, Einleitung @ 20\mod_1406045155260_21.docx @ 159836 @ @ 1 The device is not equipped with a power switch, meaning it is put into operation simply by applying power. -
Page 33: Configuration
This can be done using the Mode membrane button. Pos: 42.2 /Serie 758 (Funk, IPC)/Konfigurieren/Werkseinstellungen 758-918 @ 30\mod_1501668576032_21.docx @ 456988 @ 2 @ 1 Factory Settings The following settings are active on initial startup of the WEG:... -
Page 34: Operating Modes In "Easy Config
You can also reset the WEG to the factory settings from the WBM or using AT commands. The process is explained in the sections below. Pos: 42.3 /Serie 758 (Funk, IPC)/Konfigurieren/758-918 Betriebsarten in „Easy Config“ @ 30\mod_1501774261227_21.docx @ 457382 @ 2 @ 1 Operating Modes in “Easy Config”... -
Page 35: Configurations Via The Mode Membrane Button
Configuration 758-918 Wireless ETHERNET Gateway Pos: 42.5 /Serie 758 (Funk, IPC)/Konfigurieren/Konfigurieren via MODE-Folientaster 758-918 @ 30\mod_1501751297254_21.docx @ 457197 @ 2333 @ 1 Configurations via the MODE Membrane Button The quickest and easiest method for configuring the device is using the MODE membrane button located at the bottom of the device. -
Page 36: Restoring Factoring Settings
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.3.2 Restoring Factoring Settings Supply the device with power and wait until the connection status LEDs (A ... D) light up and go out again. Press and hold the MODE membrane button for at least 10 seconds. -
Page 37: Configurations Via Web-Based Management (Wbm)
Configuration 758-918 Wireless ETHERNET Gateway Pos: 42.7 /Serie 758 (Funk, IPC)/Konfigurieren/Konfigurieren via WBM 758-918 @ 30\mod_1501844224765_21.docx @ 457434 @ 23333443443333 @ 1 Configurations via Web-Based Management (WBM) The WBM is called up by entering the IP address of the WEG in a web browser. -
Page 38: Wbm "System Overview" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.1 WBM “System Overview” Page Figure 13: WBM “System Overview” Page Grayed out buttons The [Save and Reboot] and [Cancel All Changes] buttons are enabled once you make changes to the configuration. •... -
Page 39: Wbm "Easy Config" Page
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway 7.4.2 WBM “Easy Config” Page You can switch the WEG to a preconfigured mode from the “Easy Config” page: Connect to the WBM of your WEG. Go to the WBM “Easy Config” page. -
Page 40: Figure 16: Wbm "Easy Config" Page - Confirm Operating Mode Selection
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Figure 16: WBM “Easy Config” Page – Confirm Operating Mode Selection The mode change goes into effect immediately. Do not refresh or excite the browser window too quickly When refreshing or closing the browser window, wait until the WEG has completed the change of mode. - Page 41 WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Table 20: WBM “Easy Config” Page – Dropdown Menu No. Mode Description Configure as Scans for devices running in mode 4. If at least 1 Bluetooth access such device is found, the WEG configures itself as a ®...
-
Page 42: Wbm "Network Settings" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.3 WBM “Network Settings” Page Figure 17: WBM “Network Settings” Page Table 21: WBM “Network Settings” Page Dropdown menu Selection option Notes Static Selection between static or IP Assignment dynamic IP addresses. Dynamic (DHCP) -
Page 43: Figure 18: Wbm "Network Settings" Page - Confirm Change
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Select the required network settings in the IP Assignment and Internal DHCP Server dropdown menus. If you make a new selection in the IP Assignment dropdown menu, the [Save and Reboot] and [Cancel All Changes] buttons are enabled. -
Page 44: Wbm "Wlan Settings" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.4 WBM “WLAN Settings” Page 7.4.4.1 Client Mode Figure 20: WBM “WLAN Settings” Page – “Client” Operating Mode Table 22: WBM “WLAN Settings” Page – “Client” Operating Mode Input/dropdown field Options Notes Enable Disables the WLAN interface ... - Page 45 WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Table 22: WBM “WLAN Settings” Page – “Client” Operating Mode Input/dropdown field Options Notes Open Without encryption or authentication Input field for Passkey WEP64/128 Password requirements: 5 or 13 characters; For hexadecimal: Begin with 0x...
-
Page 46: Access Point Mode
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.4.2 Access Point Mode Figure 21: WBM “WLAN Settings” Page – Access Point Mode Manual Version 1.0.2... -
Page 47: Table 23: Wbm "Wlan Settings" Page - "Access Point" Operating Mode
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Table 23: WBM “WLAN Settings” Page – “Access Point” Operating Mode Input/dropdown field Options Notes Enable Disables the WLAN interface Enables the WLAN interface Operating Mode Client Access Point Network (SSID) -
Page 48: Wbm "Bluetooth ® Settings" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway ® 7.4.5 WBM “Bluetooth Settings” Page ® Figure 22: WBM “Bluetooth Settings” Page Manual Version 1.0.2... -
Page 49: Table 24: Wbm "Bluetooth ® Settings" Page
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway ® Table 24: WBM “Bluetooth Settings” Page Input/dropdown field Options Notes ® Enable Disables the Bluetooth interface ® Enables the Bluetooth interface ® Operating Mode PANU (Client) The WEG is used as a Bluetooth “Personal Area Network User”... -
Page 50: Panu (Client) Mode
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.5.1 PANU (Client) Mode ® Figure 23: WBM “Bluetooth Settings” Page– “PANU (Client)” Operating Mode ® Table 25: WBM “Bluetooth Settings” Page– “PANU (Client)” Operating Mode Input/dropdown field Options Notes Connect to Click the button to generate a list of... -
Page 51: Nap (Access Point) Mode
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway 7.4.5.2 NAP (Access Point) Mode ® Figure 24: WBM “Bluetooth Settings” Page – “NAP (Access Point) Mode” ® Table 26: WBM “Bluetooth Settings” Page – “NAP (Access Point) Mode” Input/dropdown field Selection option... -
Page 52: Wbm "Firmware Update" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 7.4.6 WBM “Firmware Update” Page Firmware Update Please contact our Support to perform a firmware update. Figure 25: WBM “Firmware Update” Page Click the [Browse…] button to select a firmware version in the file system of your computer. -
Page 53: Wbm "At Commands" Page
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway 7.4.7 WBM “AT Commands” Page Figure 26: WBM “AT Commands” Page On the “AT Commands” page, you have the option of sending AT commands to the device, e.g., to set parameters that cannot be addressed via the WBM or to read out parameters in text format. -
Page 54: Wbm "System Settings" Page
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Overview of AT commands A list of all AT commands is also available on the “Help” page of the WBM. However, the list may also contain commands not supported by all device versions. For a list of valid commands for your device, use the “AT*” command. -
Page 55: Wbm "Help" Page
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Figure 29: Password Query To make further configurations in the WBM, you now have to enter the password just set again. Click the [Login] button to return to the WBM pages. 7.4.9 WBM “Help” Page Figure 30: WBM “Help”... -
Page 56: Configurations Via At Commands
Configuration WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 42.9 /Serie 758 (Funk, IPC)/Konfigurieren/Konfigurieren via AT-Befehle 758-918 @ 30\mod_1501844445800_21.docx @ 457509 @ 2 @ 1 Configurations via AT Commands You can configure your WEG via AT commands. Connect to the WBM (see section “Configurations via Web-Based Management (WBM)”. -
Page 57: External Trigger Input
WAGO-I/O-SYSTEM 758 Configuration 758-918 Wireless ETHERNET Gateway Pos: 42.11 /Serie 758 (Funk, IPC)/Konfigurieren/Konfigurieren 0758-0918 - Externer Triggereingang @ 30\mod_1505748347654_21.docx @ 461339 @ 2 @ 1 External Trigger Input It is the task of the digital input to trigger a roaming shift from one WEG to the other. -
Page 58: Appendix
Pos: 44 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/Anhang - Überschrift 1 @ 4\mod_1239874070437_21.docx @ 30560 @ 1 @ 1 Appendix Pos: 45.1 /Serie 758 (Funk, IPC)/Konfigurieren/758-918 Beispielkonfigurationen @ 30\mod_1510927477070_21.docx @ 470641 @ 2333333 @ 1 Configuration Examples The following examples require that you have installed the WEG and know how to connect to and use the WBM. - Page 59 WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway Power on the 2 WEG and wait for the LEDs to light up and go out again. Briefly press on the MODE membrane button once. • For connection via WLAN: Press on the MODE membrane button repeatedly until on the LEDs A + C light up (“Easy Config”...
-
Page 60: Easy Config: Profinet Network Via Bluetooth
Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway ® 8.1.2 Easy Config: PROFINET Network via Bluetooth Figure 32: PROFINET Network ® This example describes how to use 2 WEGs in “Easy Config” via Bluetooth connect a PROFINET device and a PROFINET PLC. You can select the relevant “Easy Config”... -
Page 61: Easy Config: Ethernet/Ip Network Via Bluetooth
WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway ® 8.1.3 Easy Config: EtherNet/IP Network via Bluetooth Figure 33: EtherNet/IP Network ® This example describes how to use 2 WEGs in “Easy Config” via Bluetooth connect an EtherNet/IP device and an EtherNet/IP PLC. You can select the relevant “Easy Config”... -
Page 62: Wbm: Connect An Ethernet Network To An Existing Wlan
Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 8.1.4 WBM: Connect an ETHERNET Network to an Existing WLAN Figure 34: Connect to WLAN This example describes how to connect a machine with internal ETHERNET network to an existing WLAN. This configuration allows transfers to layer 3 (“Network Layer”), but not to layer 2 (“Data Link Layer”). - Page 63 WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway If required, make a selection in the Authentication Mode selection list. Enter the respective password for the network in the Passkey input field. Make sure that the “Layer 3 IP forward” entry is selected in the Bridge Mode selection list (default setting): Click the yellow [Save and Reboot] button.
-
Page 64: Connecting Ethernet Nodes To An Existing Wlan
Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 8.1.5 Connecting ETHERNET Nodes to an Existing WLAN Figure 35: Add WLAN Connectivity This example shows how to connect a PLC to an existing WLAN that supports layer 2 and layer 3 transfers. The WLAN interface of the WEG clones the MAC address of the ETHERNET interface of the PLC for this purpose. - Page 65 WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway Enter the MAC address of the PLC in the Cloned MAC Address input field. Click the yellow [Save and Reboot] button. The WEG now works as a WLAN interface for the PLC by using the MAC address of the ETHERNET interface of the PLC.
-
Page 66: Connecting A Plc To A Mobile Device Via Wlan
Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway 8.1.6 Connecting a PLC to a Mobile Device via WLAN Figure 36: Connecting a PLC to a Tablet/Smartphone via WLAN The example describes how you can use the WEG to access a tablet or smartphone on the Web interface of a PLC (or of another device within a wired network). - Page 67 WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway The WEG assumes the role of DHCP server in the network. Do not enable the internal DHCP server if there is already a DHCP server in the network! Do not enable the internal DHCP server if there is already a DHCP server in the network! Doing so could lead to IP address problems.
- Page 68 Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Click the yellow [Save and Reboot] button. You should now be able to connection to the WEG SSID by tablet/smartphone. Enter the PLC IP address in the tablet/smartphone browser to access the Web interface of the PLC.
-
Page 69: Wireless Technology Basics
WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway Pos: 47.1 /Serie 758 (Funk, IPC)/Anhang/758-918 Fresnel-Zonen @ 30\mod_1510931075353_21.docx @ 470656 @ 2 @ 1 Wireless Technology Basics Wireless technology is based on the propagation and reception of electro- magnetic waves. These waves respond in different ways in terms of propagation, dispersion, diffraction and reflection depending on their frequency and the medium in which they are travelling. - Page 70 Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway reducing the transmission power. For determining the optimal configuration and placement of wireless devices it is therefore recommended to use a wireless signal analysis tool. Pos: 47.2 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1 Manual Version 1.0.2...
-
Page 71: Data Security For Radio Transmission
WAGO-I/O-SYSTEM 758 Appendix 758-918 Wireless ETHERNET Gateway Pos: 47.3 /Serie 758 (Funk, IPC)/Anhang/Datensicherheit Funkübertragung 758-91x @ 13\mod_1343136212356_21.docx @ 100917 @ 2 @ 1 Data Security for Radio Transmission It is often assumed that wireless communication systems are less secure than line-connected systems. -
Page 72: Internal Antenna Characteristics
Appendix WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 49 /Serie 758 (Funk, IPC)/Anhang/758-918 Eigenschaften der internen Antennen @ 30\mod_1512640711734_21.docx @ 471581 @ 2333 @ 1 Internal Antenna Characteristics The WEG has 3 independent quarter wave monopole antennas. The following radiation diagrams and tables show the characteristics of the different antennas as measured under laboratory test conditions. -
Page 73: 2.4 Ghz Mimo Antenna
−1.42 dBi (72.1 %) +2.76 dBi 4.2 dB Pos: 50 /Serie 758 (Funk, IPC)/Anhang/758-918 Eigenschaften der externen Antenne @ 33\mod_1543319073552_21.docx @ 510950 @ 2 @ 1 Properties of the External Antenna The product variant (758-918/000-001) comes with a dual-band antenna. This has an antenna gain of max. -
Page 74: List Of Figures
List of Figures WAGO-I/O-SYSTEM 758 758-918 Wireless ETHERNET Gateway Pos: 52 /Dokumentation allgemein/Verzeichnisse/Abbildungsverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219222916765_21.docx @ 21080 @ @ 1 List of Figures Figure 1: Wireless Transmission Between Two WEGs ........16 Figure 2: View ...................... 18 Figure 3: Marking on the Right Side –... -
Page 75: List Of Tables
WAGO-I/O-SYSTEM 758 List of Tables 758-918 Wireless ETHERNET Gateway Pos: 54 /Dokumentation allgemein/Verzeichnisse/Tabellenverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219222958703_21.docx @ 21084 @ @ 1 List of Tables Table 1: Variants ....................5 Table 2: Number Notation ..................8 Table 3: Font Conventions ..................8 Table 4: Legend for Figure “View”... - Page 76 Pos: 57 /Dokumentation allgemein/Einband/Einband Handbuch - Rückseite 2017 @ 28\mod_1486477503580_21.docx @ 405394 @ @ 1 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 – 0 Fax: +49 571 887 –...
