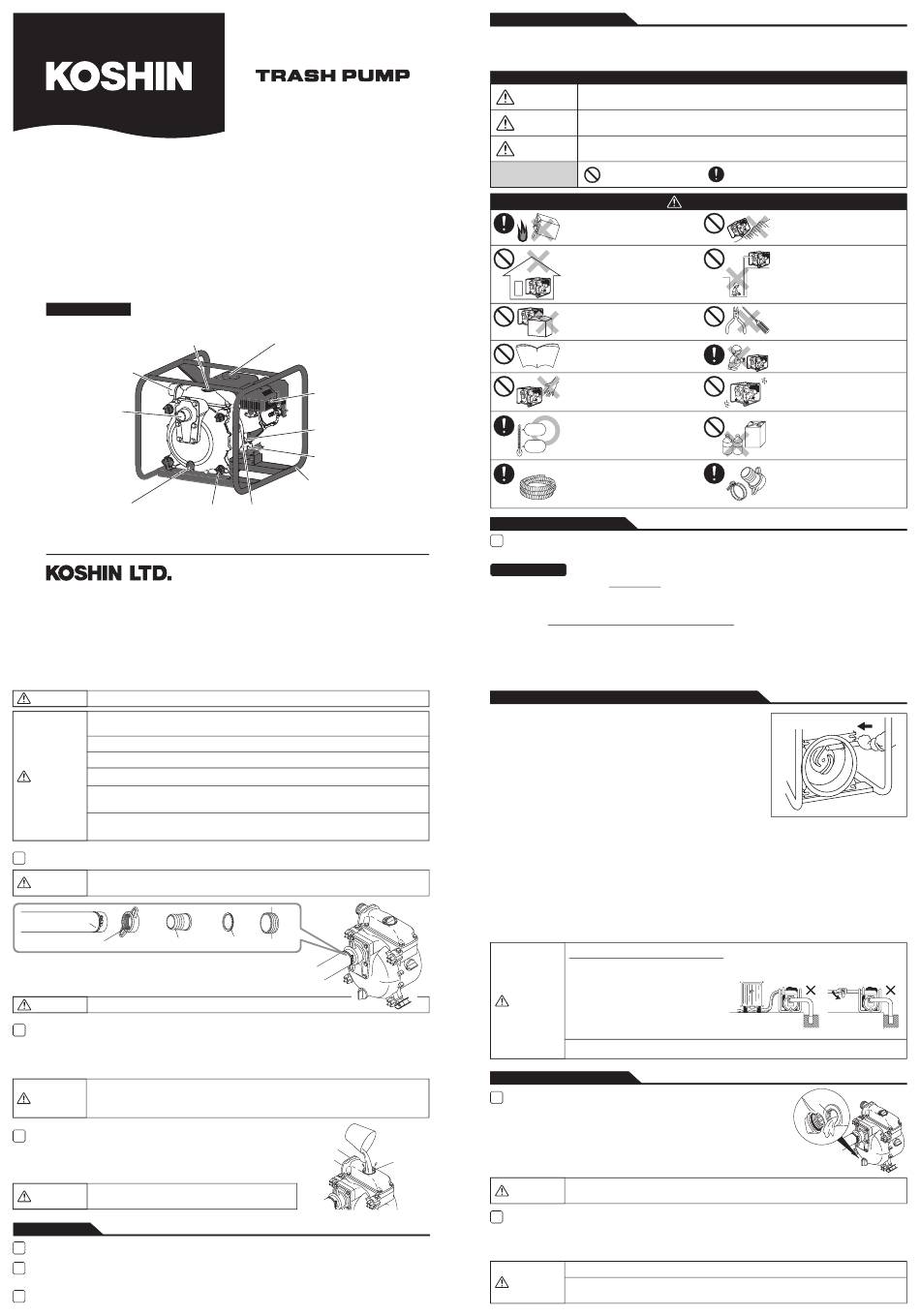

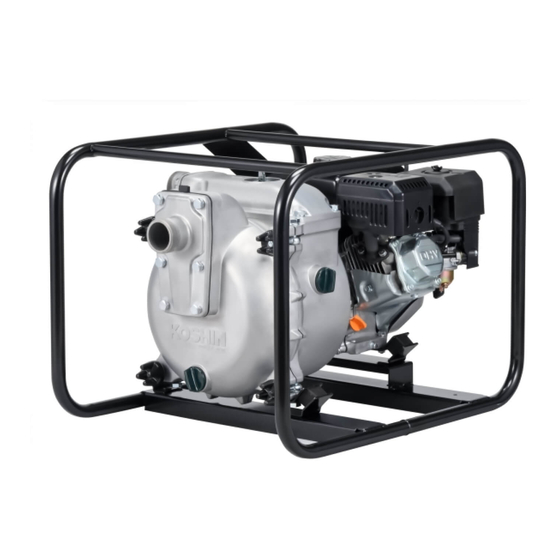

Koshin KTZ-50X Operation Manual

GASOLINE ENGINE PUMP
OPERATION MANUAL
• Thank you for choosing Koshin Trash Pump.
• This manual is prepared for your safety when operating pump.
Please read carefully and comprehend fully before use.
(Wrong usage could cause injury or death.)
• Please keep this manual handy for future reference.
NAME OF PARTS
Priming water filler cap
Discharge port
Suction port
Water drain plug
12 Kami-Hachinotsubo Kotari, Nagaokakyo City, Kyoto 617-8511 JAPAN
TEL.+81-75-953-2499 FAX.+81-75-954-6119
www.koshinpump.com
WARNING Inflammable!! Avoid fire when refuel or maintenance.
Before starting engine, please check if engine oil is filled to required level.
Without engine oil or shortage of engine oil can cause troubles for engine.
Please read carefully Engine Operation Manual for engine oil instructions.
Inflammable! Do not operate near open fire.
CAUTION
Any fuel spillage must be cleaned completely.
Check engine oil before operation. Check and refuel periodically.
Please read Engine Operation Manual for instructions.
Stop engine operation when refuel engine oil.
Engine oil can be very hot after operation.
How to install Coupling
3
Different accessories are suitable for different models.
CAUTION
Please check connection diameter and install correct parts.
Hose band
②Hose nipple ③Coupling packing
①Coupling
Please install coupling in order of :①⇒②⇒③.
If you install coupling packing not inabove order, air leakage
may result, affecting water suction efficiency.
CAUTION Do not change pump diameter by altering suction hose.
4 Make sure suction hose is connected properly
In case of no self-priming after filling pump with water and engine is started, check
suction hose connection carefully again. Most cases of no self-priming are caused
by improper hose connection.
Use suction hose for suction side. Use couplings/hose band as provided
CAUTION in accessory and attach hose properly. Installation of strainer at the end
of suction hose is necessary.
Fill pump with water before use
5
As pump is self-priming type, fill water fully from priming
port into pump before running.
Insufficient water can cause damage to pump.
Running without filling water can damage
CAUTION
mechanical seal.
HOW TO USE
1 Ensure pump is fully filled up with water.
2 Ensure strainer at the end of suction hose is in water.
(If any mud or sand is at the bottom of water, suspend hose avoiding the bottom.)
3 Ensure no obstacle is at discharge hose side.
Self-priming
for Sandy and muddy water
Fuel filler cap
Muffler
Oil filler cap /
dipstick
Oil drain plug
Frame
Knob Impeller
removing plug
19-12 012328001
SAFETY PRECAUTIONS
Read and understand this manual completely before operation.
Below information should not be neglected for proper use of this product.
Your understanding can prevent harm or danger to user or others.
Following information is very important for safety in handling this product. Be sure to observe them.
DANGER
WARNING
CAUTION
IM PORT ANT
Instruction
manual
45℃
5℃
BEFORE USE
1 Check accessories provided
List of accessories provided are printed on the pump manual.
4-stroke engine
4-stroke engine needs "engine oil" There is no engine oil in the engine.
Before starting engine, engine oil must be filled. If you start engine without engine oil,
engine will burn out and it is difficult to repair. (Warranty does not cover such claim.)
Please use "Non-Lead Gasoline for Automobile".
DISSAEMBLY AND CLEANING ( Parts replacement )
1. Turn the knob counterclock-wise and remove the knob.
2. Pull the handle towards you, and then both front cover
and volute casing can be removed.
3. Remove the peripheral plug before taking impeller out.
The impeller can be detached by giving it a shock
with a rod or the like.
4. Draw out the mechanichal seal from the engine shaft
along with the sleeve.
NOTE: Please do not hammer an impeller directly when you want to take it out from
the machine. It might damage the impeller.
Instead, take out the plug set first and then insert something like a stick which
is thin enough to get through the hole and hammer the stick at the other end.
The impeller can be removed out easily without damaging it.
NOTE: When assembling the parts, do not forget to place the adjusting washer,
O-ring, etc., in the right positions. Also, correctly install the front cover
and evenly tighten the right and left knobs.
Note that incomplete assembling may affect the performance of the unit.
CAUTION
ATTENTION AFTER USE
1 Drain water after use
After use, remove the drain plug at the bottom and pour water
from the suction/discharge ports so that the remaining sand
is forced out of the pump. If the pump is used to transfer
muddy water over a long period of time, a large volume of
sand will be piled up in the pump casing, making it difficult to remove
Priming port
the front cover. Therefore, clean the inside the pump periodically.
CAUTION
2 Long storage
Discharge fuel in fuel tank and carburetor completely. Unused fuel in
tank (if kept more than 30days) may cause engine failure.
*Please refer Engine Operation Manual.
CAUTION
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury, or property damage.
ALERT
PROHIBITED
DANGER
Avoid fire when refuel or
maintenance.
Highly inflammable!
Do not operate Trash pump
inside a room or under bad
ventilation condition. Harmful
substances are in exhaust gas.
There is danger of gas poisoning.
Do not put any obstacle
around engine muffler.
It may cause fire or breakage.
Read carefully and understand
fully before use.
Do not touch muffler or any
part of the engine. It could
cause burn.
Use correct type of suction hose.
Water temperature tolerance: 5
to 45℃. May cause breakage if
use outside the mentioned range.
Please use suction hose for
suction side. Please purchase
suitable hose to fit to connection
dia and suitable length.
Beware of water hammering
Do not allow any vehicle to run over the discharge hose.
Do not close the discharge valve
abruptly because water-hammer
may occur.
This may result in heavy
Do not close discharge
damage to the pump.
valve abruptly
For engine manual and notes, please refer Engine Operation Manual enclosed.
Water inside may freeze at below 0℃ in winter and may damage pump.
After use, drain water from drain plug before storing.
Do not smoke as fuel is highly inflammable.
Unused fuel must not remain in the tank for long term
storage. Unused fuel may cause future engine failure.
Do not use pump on slope.
Fuel spillage at tank cap or
carburetor may cause fire.
In case of operating Trash Pump in
a well or in a hollow, the person
operating the pump must not
enter the small space as there is
danger of gas poisoning.
Do not overhaul or repair,
except by person who is
trained to do so.
Keep children away from
pump when in operation.
Do not run pump without
water inside the pump.
This will cause pump damage.
This pump is not Suitable:
drinking water, seawater, kerosene,
light oil, heavy oil, gasoline,
chemical, acid, alkaline etc.
Please firmly connect hose
with coupling and hose band
when you connect suction or
discharge hose to pump.
Collapse of
discharge hose
Drain
