Robur Next-G Installation, Use And Maintenance Manual

Condensing gas unit heaters for use in industrial and commercial installations
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation, use and maintenance manual
Next-G
Condensing gas unit heaters
for use in industrial and commercial installations
Powered by natural gas/LPG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Next-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robur Next-G

Summary of Contents for Robur Next-G

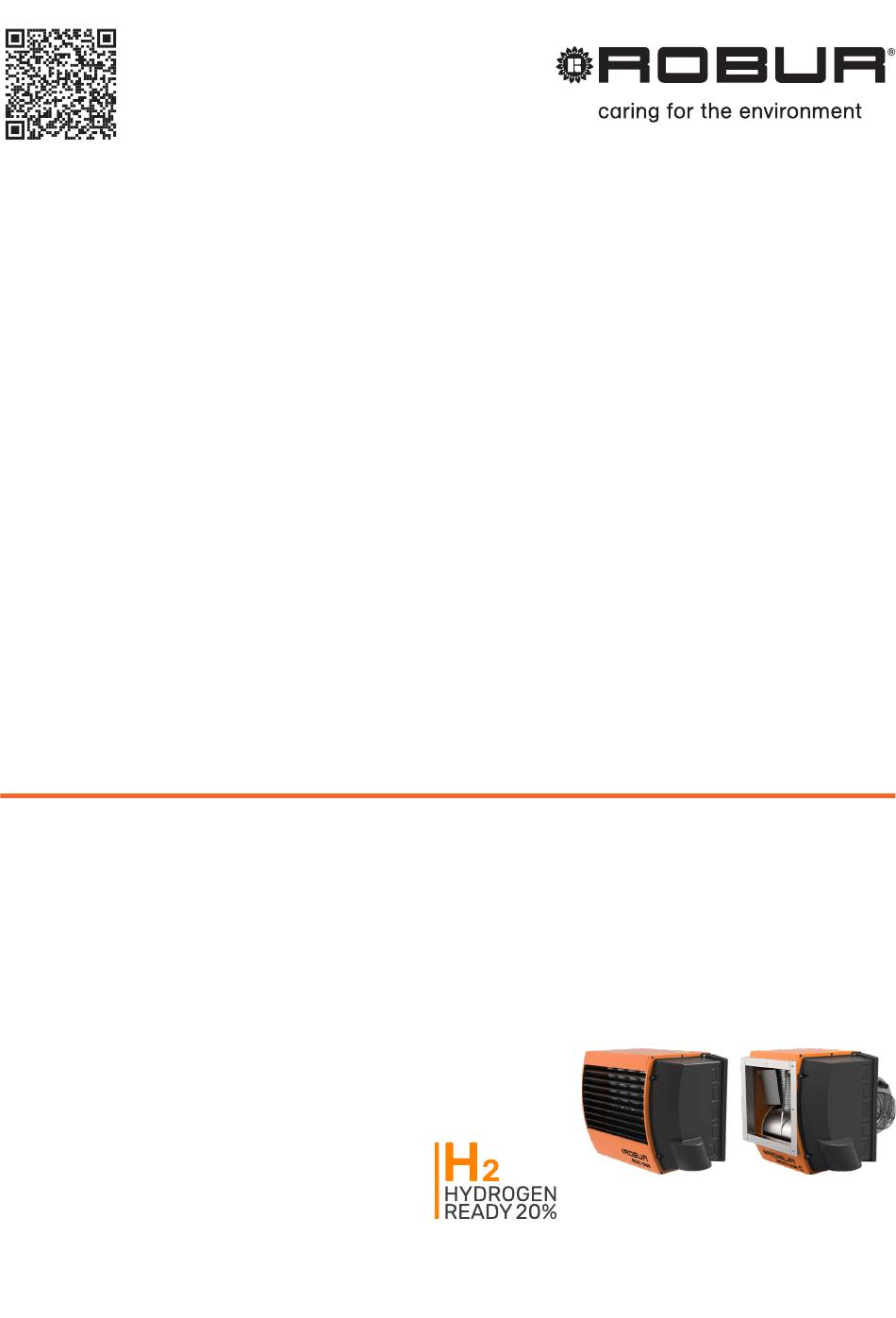

  • Page 1 Installation, use and maintenance manual Next-G Condensing gas unit heaters for use in industrial and commercial installations Powered by natural gas/LPG...
