RF Single Color Remote Controller
Important: Read All Instructions Prior to Installation

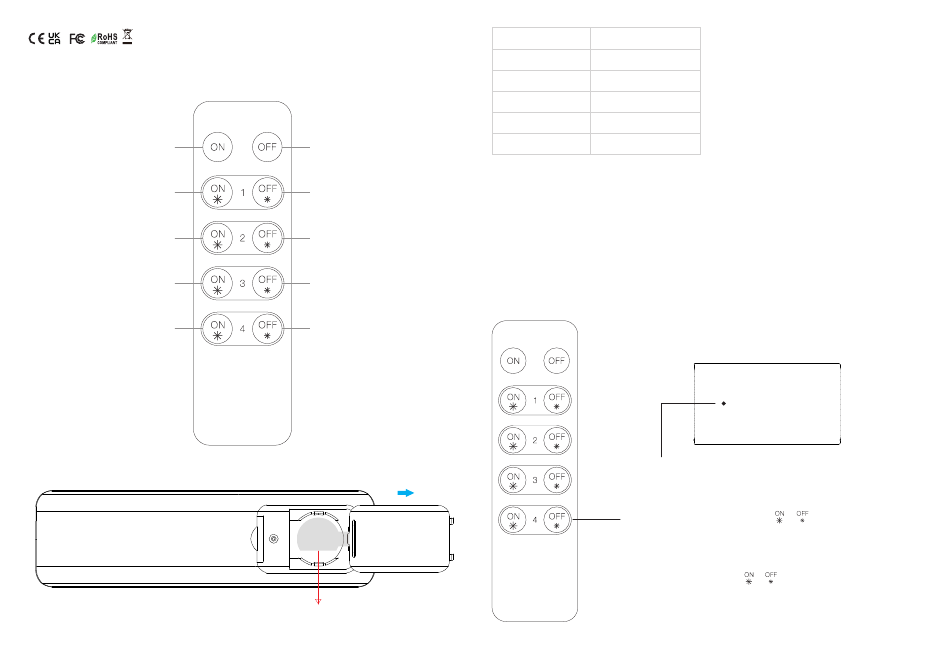

Function introduction
All on
Zone 1:Short press to turn on,
Press and hold down to increase
light intensity
Zone 2:Short press to turn on,
Press and hold down to increase
light intensity
Zone 3:Short press to turn on,
Press and hold down to increase
light intensity
Zone 4:Short press to turn on,
Press and hold down to increase
light intensity
Note:Before the first use, please remove the protective film on the battery.
All off
Zone 1:Short press to turn off,
Press and hold down to decrease
light intensity
Zone 2:Short press to turn off,
Press and hold down to decrease
light intensity
Zone 3:Short press to turn off,
Press and hold down to decrease
light intensity
Zone 4:Short press to turn off,
Press and hold down to decrease
light intensity
Front side
Back side
Product Data
70010015
Output
Operation Frequency
868/869.5/916.5/434MHz
Power Supply
3V(1xCR2025 battery)
Operating temperature
Relative humidity
Dimensions
• Control 4 zones of receivers separately
• Single color controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with RF receiver
RF signal
0-40°C
8% to 80%
136.3x38.9x10.7mm
Step 1: Wire the strip to the receiver and set the dip switches of the
receiver according to the strip type. Please see instructions of the
receiver for more info.
Remove the protective film from the battery compartment of the remote.
RF LED Receiver
Learning Key
Step 2: Short press the "Learning Key" button on RF receiver or re-power on the
receiver three times continuously to set it into pairing status
Step 3:Choose one zone and Short press
The LED lights connected with the receiver will flicker once which means the
receiver is paired with zone 4 successfully.
,
After pairing
Short press or hold
or
of 1/2/3/4 to control each zone separately
Note: one receiver can be paired with max 8 remote controls.
or
of the zone(e.g. zone 4),
