Integral LED ILRC005 Manual

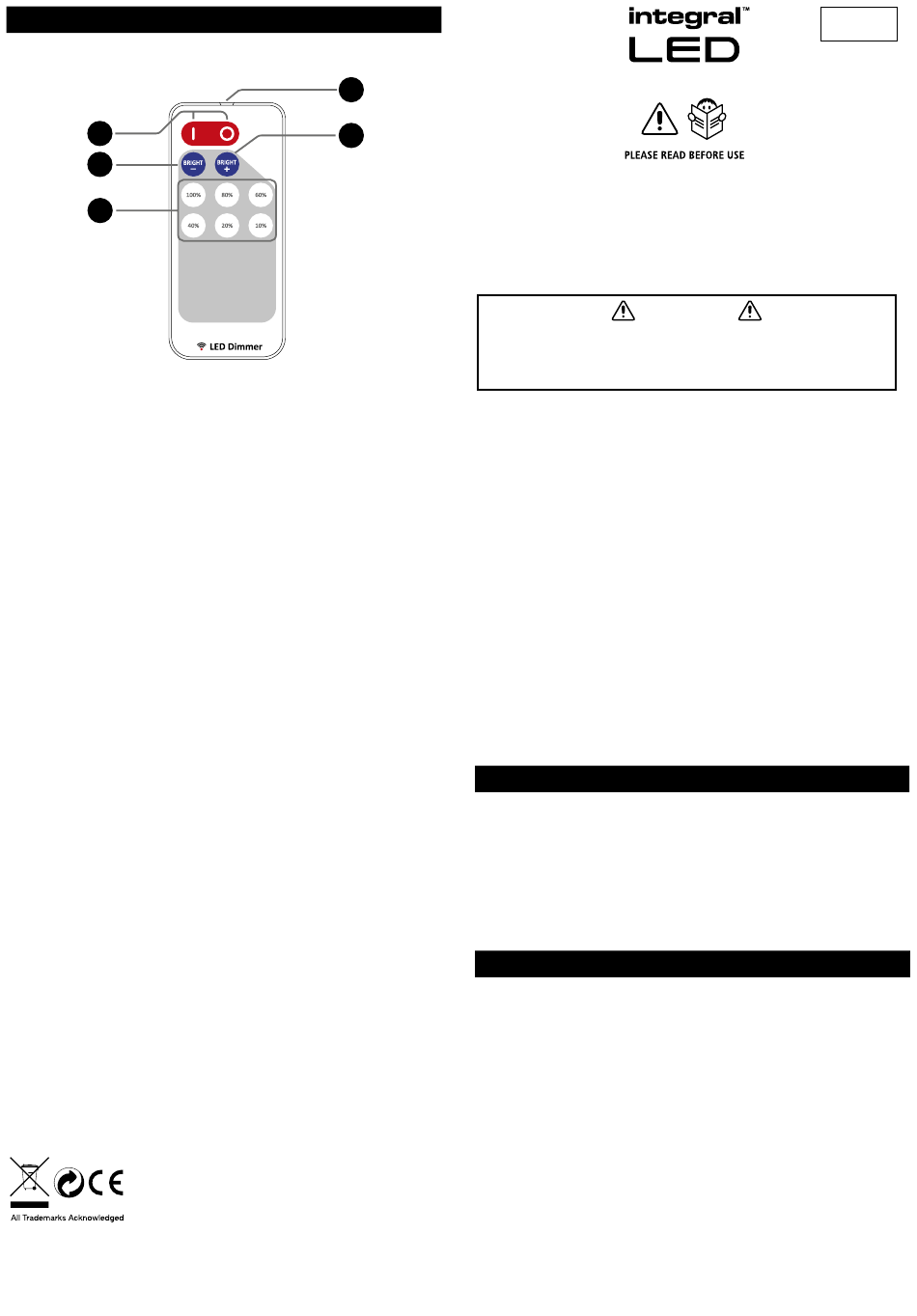

C. Remote control operating instructions
1
2
4
1. Turn On/ Standby
Press 'I' key to turn ON unit or press 'O' key to turn OFF. On
power up the unit will automatically restore to the previous
brightness setting.
2/3. Brightness Adjustment
To adjust LED brightness, Press (BRIGHT+) to increase
brightness or press (BRIGHT-) to reduce brightness.
4. Brightness Shortcut keys
Shortcut key to 100%, 80%, 60%, 40%, 20% or 10%
brightness.
5. Remote Controller Indicator
The blue LED will flash when the remote control is operated.
The remote control uses RF (Radio Frequency); therefore it is
not necessary to aim the remote control directly at the LED
Dimmer/ Receiver.
1 year warranty
Integral LED is a division of
Integral Memory plc London NW10 0UF
www.integral-led.com
5
3
DO NOT CONNECT THE RECEIVER TO A MAINS SUPPLY.
Fig. 2
TO A SUITABLE 5V-24V CONSTANT VOLTAGE LED DRIVER.
IMPORTANT NOTICE
• This product should be installed according to the instructions
in this guide and by a qualified electrical installer.
• All electrical work must be completed in accordance with
the latest IET wiring regulations (formally IEE) for the UK or
in accordance with all applicable regulations and laws in the
country in which it is being installed.
• Switch OFF power at the mains before installing the product.
• Always disconnect or switch off the power supply before
making any adjustment to the wiring.
• Observe the operating temperature of the product:
-30°C to +80°C
1. Introduction
INTRODUCTION
The Integral LED Single Colour Remote Control and Receiver
are designed to work with the Integral LED Single Colour
Strip. You will be able to adjust the brightness level of your
strip by using the supplied remote control.
2. Specifications
LED Dimmer/ Receiver:
• Power Input: DC5V - DC24V
• Max Current Load: Max 10A
• IP Rating: IP63
• Max Output Power:
120W (12V) / 240W (24V)
• Brightness Grade: 256 levels
• Brightness Shortcut: 6 levels
• Working Temperature: -30°C to 80°C
4
• Dimension: 87x21x8.5mm with
120mm AWG16 Red / Black cables
at both ends
• Weight (N.W.): 19g
Total Weight (G.W.): 42g
Integral LED Single Colour
Remote Control and Receiver
ILRC005
WARNING
THE RECEIVER MUST ONLY BE CONNECTED
IP63
RF Remote:
• Working Voltage:
3V (battery CR2025)
• Working Frequency: 433.92MHz
• PWM Frequency: 1 KHz
• Remote Distance:
within 15M in an open area
• Working Temperature: -30°C to 80°C
• Dimension: 40x86x6.5mm
1
• Weight (N.W.): 16g
