Integral LED ILRC021 Manual

Integral LED RF Colour Temperature Change
THE WALL-MOUNTED TOUCH REMOTE IS A 100-240V AC INPUT PRODUCT.
DO NOT INSTALL PRODUCT WITH METAL BOX WHICH CAN AFFECT THE SIGNAL TRANSMISSION.
SWITCH OFF POWER BEFORE CONNECTING THE PRODUCT TO A MAINS SUPPLY.
IMPORTANT NOTICE
• This product should be installed according to the instructions
in this guide and by a qualified electrical installer.
• All electrical work must be completed in accordance with the latest
IET wiring regulations (formally IEE) for the UK or in accordance
with all applicable regulations and laws in the country in which it is
being installed.
• Switch OFF power at the mains before installing the product.
• Always disconnect or switch off the power supply before making
any adjustment to the wiring.

1. INTRODUCTION

The Integral LED RF colour temperature change wall-mounted touch
remote is designed to work with the Integral LED receiver (ILRC014)
and colour temperature change strip. The wall-mounted touch remote
can be used to control four zones of strip lighting. You will be able to

2. PARAMETER

• Control interface: Touch control
• Input Voltage: 100-240V AC
• Power Consumption: 20mA
• Output: RF signal
• Working Frequency: 868MHz
• For use with ILRC014 RF receiver

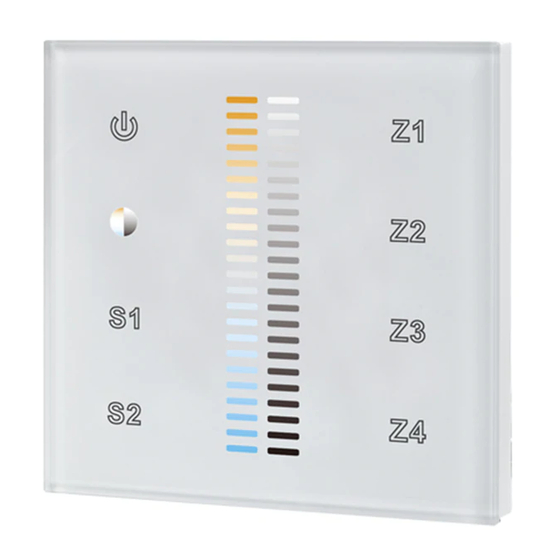

Wall-mounted Touch Remote
ILRC021
WARNING
• Control: Colour temperature change
• Control Zone: 4 zones synchronously and
independently
• Remote Distance: 20-30 metres
• IP rating: IP20
• Working Temperature: -20°C to 50°C
• Observe the operating temperature of the product: -20°C to 50°C
• Limited 5 Year Warranty. This LED wall-mounted touch remote is
for indoor use only. Improper installation, abuse or miss-powering
of the wall-mounted touch remote and receiver or failure to
use the wall-mounted touch remote and suitable receiver for its
intended use will void the warranty. Proof of purchase is required
for all returns. Your statutory rights remain unaffected.
Please see www.integral-LED.com/warranty.
Questions? Please contact your supplier or see integral-LED.com
switch on/off, change the colour temperature of the strip and dim the
strip to your ideal level for each independent lighting zone. You can
change the mood and look of your space instantly.
• Relative Humidity: 8% to 80%
• Product Colour: White (ILRC021)
interface available
• Dimensions: L86×W86×29.1(mm)
• Weight (N.W.): 200g
IP20
