Integral LED ILRC010 User Manual

Integral LED RGBW Colour Changing
Remote Control and Receiver ILRC010
DO NOT CONNECT THE RECEIVER TO A MAINS SUPPLY.
THE RECEIVER MUST ONLY BE CONNECTED TO A SUITABLE DC12-24V LED DRIVER.
• This product should be installed according to the instructions in this guide and by a qualified electrical
installer.
• All electrical work must be completed in accordance with the latest IET wiring regulations (formally IEE) for
the UK or in accordance with all applicable regulations and laws in the country in which it is being installed.
• Switch OFF power at the mains before installing the product.
• Always disconnect or switch off the power supply before making any adjustment to the wiring.
• Observe the operating temperature of the product: 0°C to +40°C.
• Limited 3 Year Warranty. This LED Remote control and Receiver is for indoor use only. Improper installation,
abuse or miss-powering of the remote control and receiver or failure to use the remote control and receiver
for its intended use will void the warranty. Proof of purchase is required for all returns. Your statutory rights
remain unaffected.
Please see www.integral-LED.com/warranty.
Questions? Please contact you supplier or see www.integral-LED.com
1. Introduction
INTRODUCTION

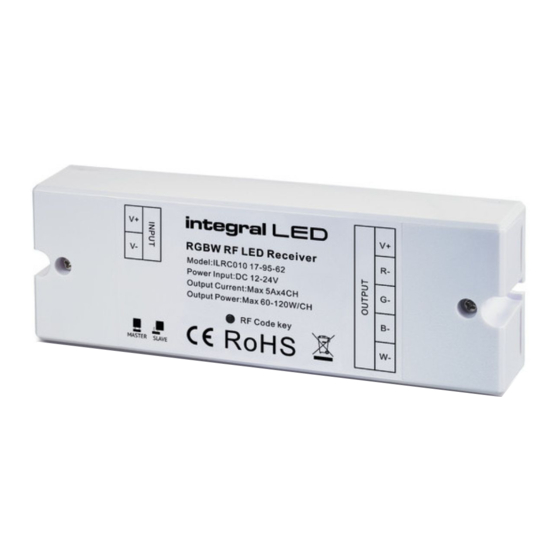

The Integral LED RGBW Colour Changing Remote Control and Receiver is designed to work with the Integral
LED RGBW Colour Strip. You will be able to change the colour of the strip to different colour modes changing
the mood and look of your space instantly. You can also dim the strip to your ideal level. The strip can also
switch between different colour modes on a continuous basis to add excitement.
2. Parameter
Receiver:
• Power Input: DC12V~DC24V
• Max Current Load: Max 20A, 5Ax4CH
• Max Output Power: 240W(12V) / 480W(24V)
WARNING
IMPORTANT NOTICE
• IP Rating: IP20
• Working Temp.: 0ºC~40ºC
• Dimensions: L145×W46.5×H16(mm)
• Weight (N.W.): 110g
IP20
