Integral LED ILRC1224VCV3F3A Manual

Integral LED RGB Colour Changing Remote Control and Receiver
ILRC1224VCV3F3A/ ILRC1224VCV3C3A
THE RECEIVER MUST ONLY BE CONNECTED TO A SUITABLE 12V/24V LED DRIVER.
IMPORTANT NOTICE
• This product should be installed according to the instructions in this guide
and by a qualified electrical installer.
• All electrical work must be completed in accordance with the latest IET
wiring regulations (formally IEE) for the UK or in accordance with all
applicable regulations and laws in the country in which it is being installed.
• Switch OFF power at the mains before installing the product.
• Always disconnect or switch off the power supply before making any
adjustment to the wiring.
• Observe the operating temperature of the product: -30C to +55C

1. Introduction

INTRODUCTION
The Integral LED RGB Colour Changing Remote
Control and Receiver is designed to work with
the Integral LED RGB Colour Strip. You will be
able to change the colour of the strip in different
colour modes to change the mood and look of
your space instantly. You can also dim the strip to
your ideal level. The strip can also switch between
different colour modes on continuous basis to
add excitement.

3. Operating Instruction for Receiver

The Remote control has been matched to the receiver before leaving the factory, if deleted accidentally you can restore the ID as follows.
Learning ID: Short press the ID learning button on the receiver until the indicator light is on, then press any key on the remote control, the indicator
light flashes several times. The ID is now activated.
Cancel ID: Press ID learning button on the receiver for 5 seconds.
One receiver can be matched to up to 10 remote controls.

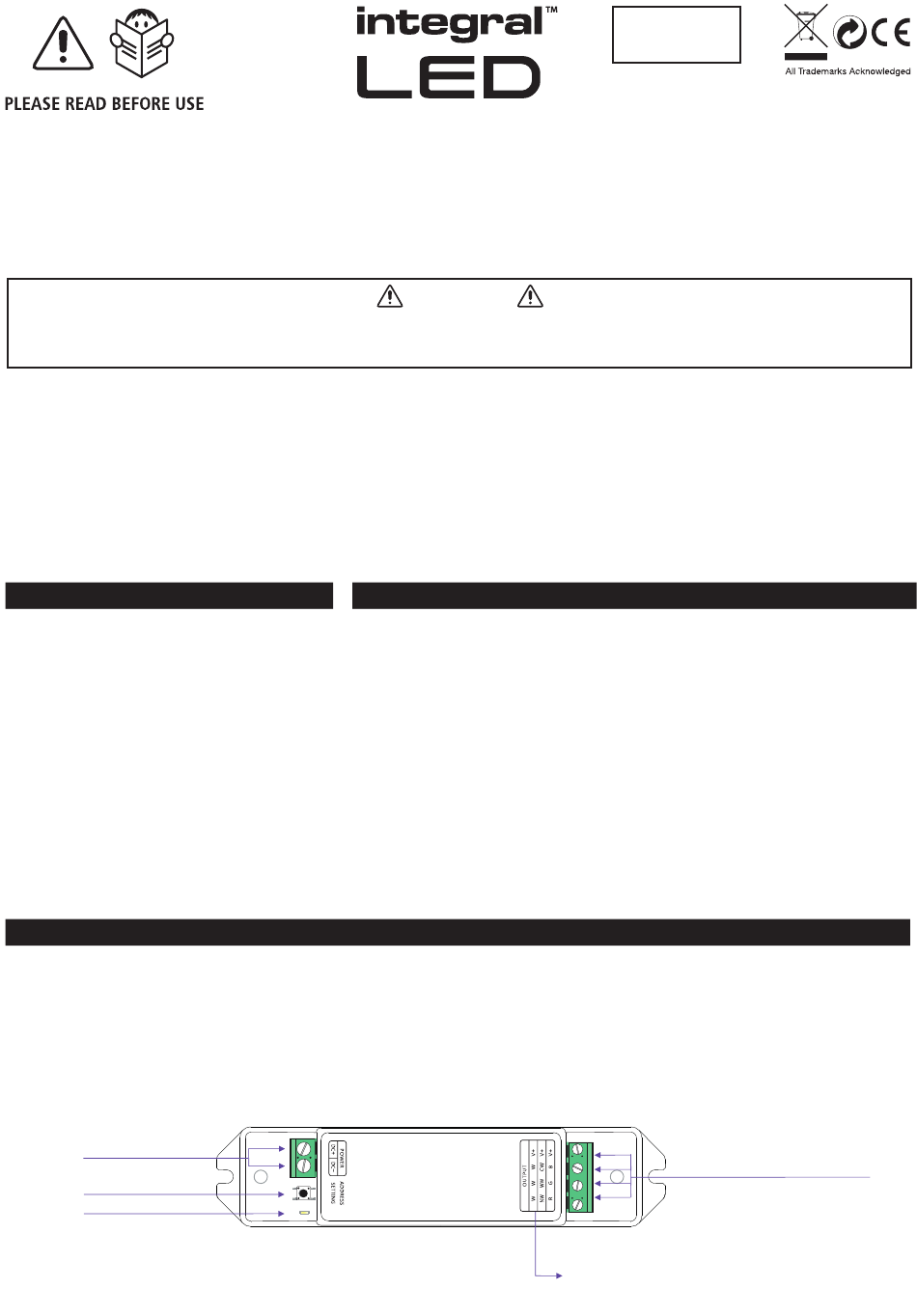

Power input socket
Remote ID learning
button
Indicator light
WARNING
DO NOT CONNECT THE RECEIVER TO A MAINS SUPPLY.

2. Parameter

Receiver:
• Compatible Remote: M3/M6
• Power Input: DC12V~DC24V
• Max Current Load: Max 3Ax3CH
• Max Output Power: 108W(12V)/216W(24V)
• Gray Scale Level: Max4096×4096×4096
• Working Temp.: -30ºC~55ºC
• Dimensions: L135×W30×H20(mm)
• Weight (N.W.): 47g
Total Weight (G.W.): 135g
IP00
• Limited 5 Year Warranty. This LED Remote control and Receiver is for
indoor use only. Improper installation, abuse or miss-powering of the
remote control and receiver or failure to use the remote control and
receiver for its intended use will void the warranty. Proof of purchase is
required for all returns. Your statutory rights remain unaffected.
Please see www.integral-LED.com/warranty.
Questions? Please contact you supplier or see integral-LED.com
RGB V+ RGB control
Integral LED is a division of Integral Memory plc
London NW10 0UF

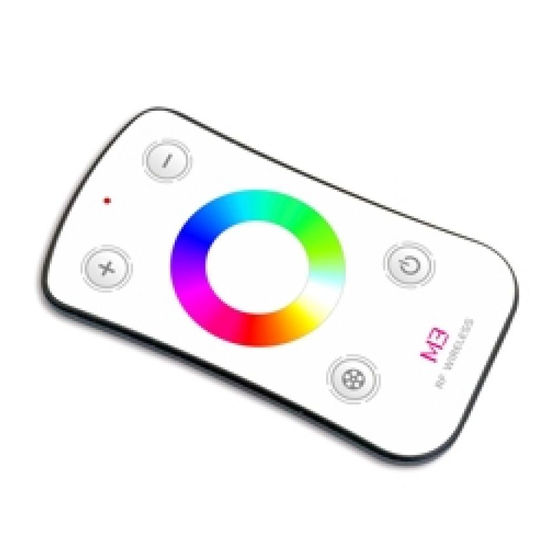

Remote:
• Working Voltage: 3V (battery CR2032)
• Working Frequency: 433.92MHz
• Remote Distance: 40m~50m
• Working Temp.: -20ºC~55ºC
• Remote Dimensions: L104×W58×H9(mm
• Remote Holder Dimensions:
L108×W63×H14(mm)
• Weight(N.W.): 42g
LED lamp connection socket
