XQBM20-E

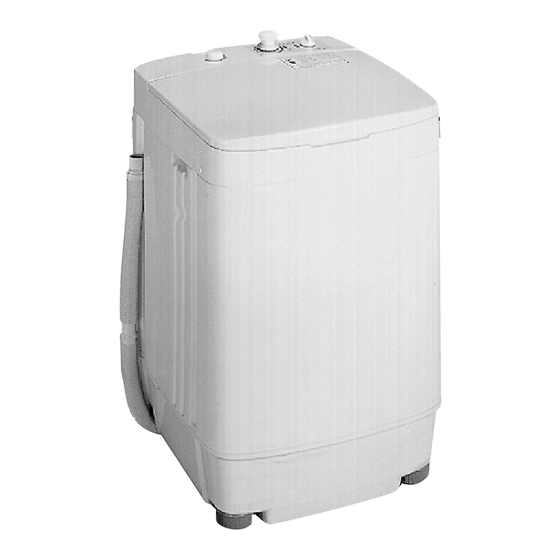

Fully-auto Washing Machine
Please read this manual carefully before using.
Retain it for reference
Please check if the power receptable is earthed
reliably before usage to guarantee your safety.
The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.
Contents
Before using
Names of the parts.............the 2
Safety precautions .............................1
Installation and adjustment .................3
Install the water inlet hose..................5
Preparation before washing .............7
Put in the laundries ............................8
Add the detergent ..............................9
Close the top lid ...............................10
Select water level .............................10
Select program .................................10
Turn the knob. .................................12
The washing is finished ...................12
Disposal after washing .....................13
Packing list .......................................15
Specification.................the back cover
cover
nd
......14
Advertisement
Table of Contents
Related Manuals for Haier XQBM20-E
Summary of Contents for Haier XQBM20-E
-
Page 1: Table Of Contents
XQBM20-E Fully-auto Washing Machine Please read this manual carefully before using. Retain it for reference Please check if the power receptable is earthed reliably before usage to guarantee your safety. The manufacturer is not responsible for any risks occurred owing to disobey these stipulations. -
Page 2: Names Of The Parts
Names of the parts Top lid Control panel seat lint filter Inner tub Pulsator Cabinet Cabinet,lower Adjustable foot Accessories the end connecting to the washing machine the end connecting to the water inlet hose jointer Power line Water level knob Back cover Meaning and description of the symbols bottom plate... -
Page 3: Safety Precautions
Safety precautions Be sure to earth the earthing wire reliably. If the power line is bad, to avoid risk it is required to have it replaced by the technicians of our special shop or our agent or the after-sale service department. Keep the pin of the power plug clean. - Page 4 Safety precautions Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children. Do not put any hot or heavy items (such as the kettle with hot water ) on the washing machine.
-
Page 5: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. After you open the package, please lean the washing machine gently down on soft items ( like the towel cloth, blanket, etc. -
Page 6: Usage Of The Drain Hose
How to change the direction of the drain hose 1.Lean the machine down gently with the front surface facing the ground. Loosen the eight screws by a cross screwdriver. Back Front 2.Pull out the drain hose from the groove at the right side. -
Page 7: Install The Water Inlet Hose
Install the water inlet hose Confirm the water faucet 1. Insert a new flat washer into the end of the inlet hoses. Firmly put the washers in the coupling. Note: You may have to use pliers to tighten the coupling. Do not over tighten because you may cause damage to the valve. -
Page 8: Using Process
1 Preparation before washing Pay attention to followings before washing the laundries Confirm Clear the pocket. there's special Take out the requirment for coins , sand, the laundries. hairpins etc. a.Please check if the laundries are applicable for washing. b.Separate those not colorfast from other laundries. c.For laundries not waterabsorbing,please put them into water with hands. -
Page 9: Put In The Laundries
2 Put in the laundries Reference weight of the laundries: working suit up,down cotton,about 1120g blanket cotton,about 900g pajamas shirt cotton,about 300g undershirt cotton,about 180g The capacity of washing and spinning of the machine refer to the largest weight of the standard laundries under dry condition that can be washed or spinned in one time. -
Page 10: Add The Detergent
Add the detergent How to use the whitener Inlet the water to desired level, dilute the whitener with container, and pour it into the tub slowly. Laundries with colors or patterns are more prone to loose color. Do not use whitener on them. The whitener should not be made to contact the laundries directly. -
Page 11: Close The Top Lid
Close the top lid Water level selection Water level selection High Reset Choose the wash process according to laundries. Program Function selection The dirtiest Choose the process for the heavy and dirtier laundries. Dirtier Usually overclothes and soft clothes. Ordinary Thin and soft clothes. -
Page 12: Turn The Knob
Procedure selector knob (procedure running time: Process Time Soak Wash Procedure The dirtiest(1~6) Dirtier(1~6) Ordinary(3~6) Rinse(4~6) Spin(5~6) Wash(6~7) * Turn the knob and push-in clockwise for the start and finish of selected process, pull out the knob to start washing program. * When the washing is finished, push the knob in. -
Page 13: The Washing Is Finished
Choose the wash procedure according to the above instruction. Push in the procedure controller knob and turn it clockwise to the expected procedure and then pull out the knob, the machine begins to work. The washing is finished * For the dirtiest clothes, the soak procedure is designed. -
Page 14: Disposal After Washing
Disposal after washing Cleaning the lint filter The lint filter must be used during washing. It must be cleaned in time after each using. 1. Take off the lint filter Put hand at the indicated position. Push down to take it off. ( See to Figure 1) 2. -
Page 15: Trouble Shooting Answer To Question
Trouble-shooting Answer to question (If trouble appears, please first pull off the power plug, then check it). Followings are not trouble sometimes. Please check again before you send it to repair. If there are real troubles, please call to service department or local dealer . Do not repair it by yourself. Problems The machine stops in spinning The draining function is not work-... -
Page 16: Packing List
Packing list User s manual Components of the water inlet hose Fully-auto washing machine Lint filter... -
Page 17: Specification
Water level / Water quantity (about) Max water consumption Injection pressure Rated washing power Rated spinning power Weight Dimension (mm) XQBM20-E 220-240V .50Hz 2.0kg High / 20L, Middle / 15L, Low / 7L About 60L (High water level; Normal procedure) 0.03MPa-0.78MPa...
