LS110 is used for the transmittance testing of glass, plated film, solar film,
glass, filmed glass etc.

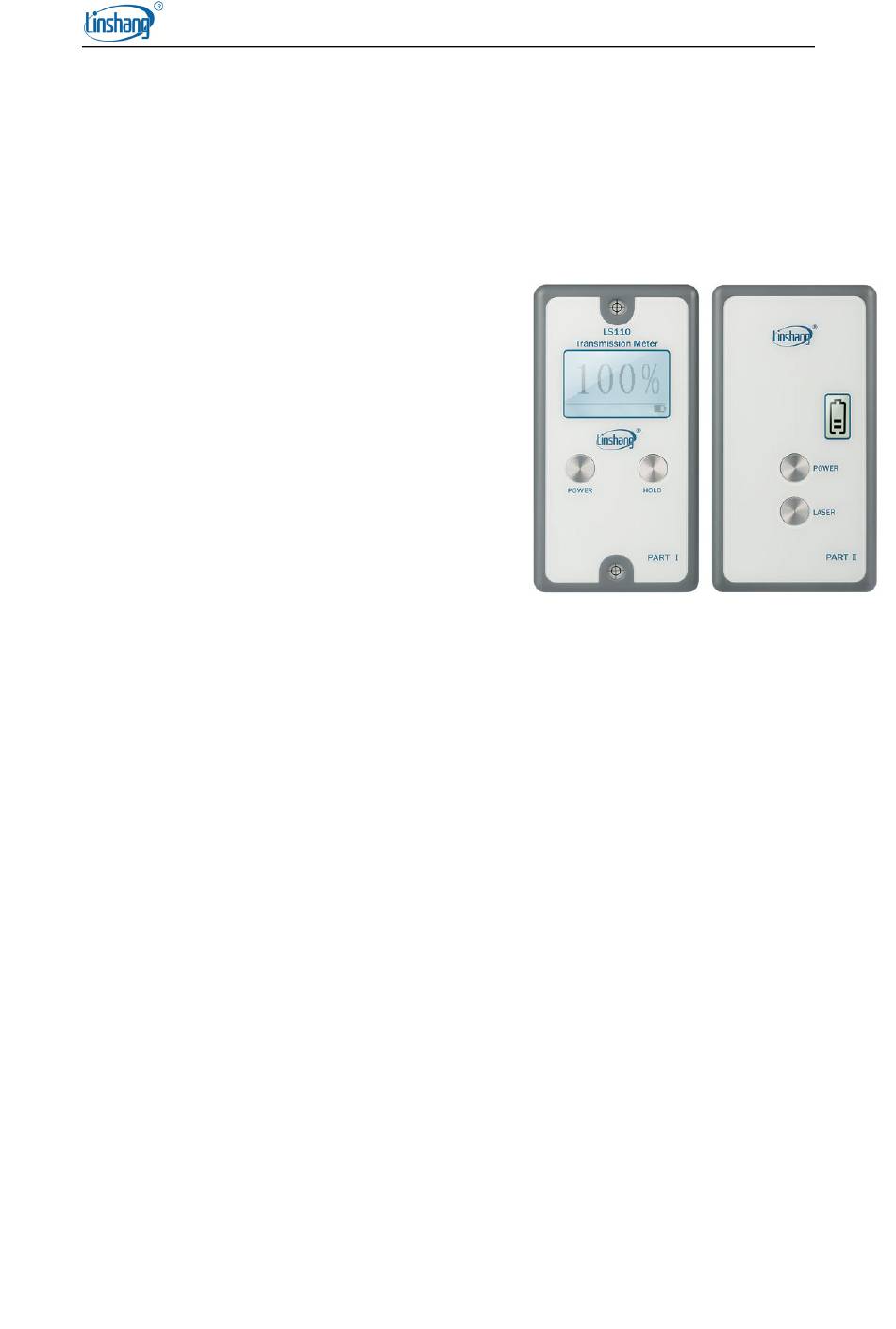

LS110 consist of two parts: PART Ⅰ (main part) for measuring and displaying
functions; PARTⅡ (the auxiliary part) for light source and laser, the laser is used for two
part alignment.
I. LS110 Parameters
1.Dimension: 130mm × 70mm × 84mm (L × W ×
H)
2.Weight: 630g
3.Resolution: 0.1% for measured value<10%
and 1% for other ranges
4.Accuracy: better than ±2% (Colorless and
transparent material)
5.Test sample size: > 40mm×40mm
6.Visible light wavelength: 380nm-760nm, CIE
function of photopic vision
7.Power supply: built-in lithium rechargeable battery
II．Key Operation
1．Power on/off
Short press "Power" key to power the instrument on/off，main and auxiliary part
required to perform the operation of power on/off.
The meter is shut down automatically for no action within 15 minutes.
2. "HOLD" Key of the main part
Under the measurement mode, short press "HOLD" to hold the data on LCD, up right
corner of LCD will display the icon "HOLD" .
Short press "HOLD" again to release the hold mode and the icon "HOLD" disappears.
Long press "HOLD" for 3 seconds to 3 value display mode. Long press "HOLD" for 3
seconds again to 1 value display mode. In fact, the instrument is composed of three sets
of independent transmittance meter. 1 value mode is the mean values of three 3 value
mode.
3."Laser"key of the auxiliary part
Short press "Laser" key to power the laser on/off，
III. Instrument operation
1. SELF-TEST
Attracting the main and auxiliary part together, press down "POWER" key to power
them respectively and align the upper and lower laser points with the alignment bull's
eyes simultaneously. Wait for the completion of "SELF-TEST" and enter the
Measurement interface(100% displayed on the LCD). The following reasons for failed
"SELF-TEST"("Please refer to the manual" display on the LCD) :

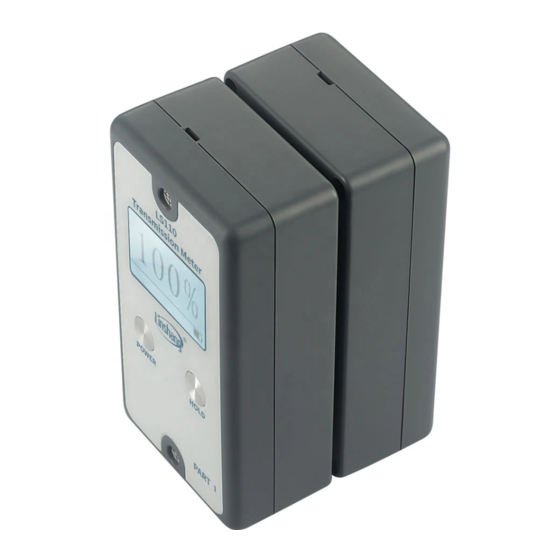

LS110 split transmission meter
User Manual V8.1
Shenzhen Linshang Technology Co., Ltd.
1-3-2019 Page 1 of 3
insulating
are
Advertisement
Table of Contents
Related Manuals for LINSHANG LS110
Summary of Contents for LINSHANG LS110
- Page 1 Shenzhen Linshang Technology Co., Ltd. LS110 split transmission meter User Manual V8.1 LS110 is used for the transmittance testing of glass, plated film, solar film, insulating glass, filmed glass etc. LS110 consist of two parts: PART Ⅰ (main part) for measuring and displaying functions;...
- Page 2 Shenzhen Linshang Technology Co., Ltd. a) Battery power is low, please charge the main and auxiliary part. b) No alignment the main and auxiliary part with laser point with the bull’s eyes. c) Power on the main and auxiliary part with clamped some testing sample Equipment damage, need to send back to the factory repair 2.
- Page 3 Shenzhen Linshang Technology Co., Ltd. VI. Points for attention 1. Since the main and auxiliary part has strong magnetic magnet inside for measurement, avoid pinch hands or damage the glass samples in the use. 2. The laser position and accuracy of each set of meter (main and auxiliary part) has been perfectly matched and calibrated.
