Summary of Contents for Baumatic SUPREMA1SS/W

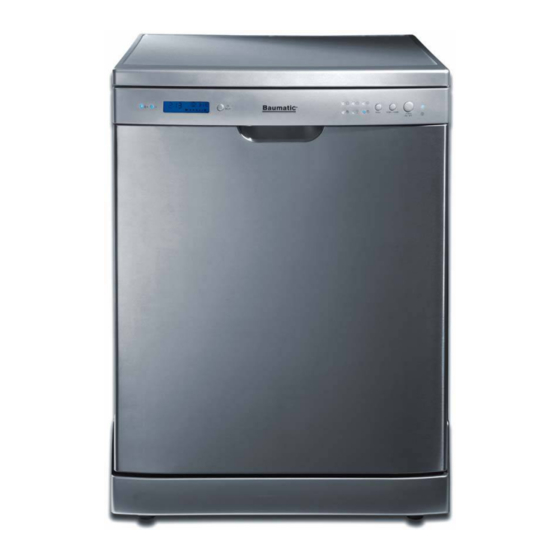

- Page 1 SUPREMA1SS/W 60 cm freestanding dishwasher...
- Page 2 USER MANUAL FOR YOUR BAUMATIC SUPREMA1SS/W 60 cm freestanding dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications 8 - 9 Product dimensions Product specifications Energy efficiency details Electrical details Description of the appliance 9 - 10 Control panel LCD display Using your dishwasher 11 - 24 Before first use Filling with dishwasher salt 11 - 12 Setting the water softener level... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your dishwasher. - Page 6 This appliance is only designed to wash normal domestic washloads. If you use your dishwasher in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
- Page 7 Child Safety o Your dishwasher should only be used by adults. You should not allow children in the area of the machine unsupervised. You should not let them touch the controls or play with the appliance. o It could be possible for a child or pet to gain access to the dishwasher if the door is left open.
-
Page 8: Specifications
Specifications Product dimensions Height: 850 - 855 mm Width: 600 mm Depth: 600 mm Product specifications o 14 Place settings o 6 Programs: Normal Intensive Economy Rinse Glass Soak o 4 Wash temperatures: 40°C, 45°C, 50°C, 60°C o Electronic aqua stop o LCD display o Residual drying o Delay timer... -
Page 9: Energy Efficiency Details
Energy efficiency details Energy efficiency class: Washing performance class: A Drying performance class: Electrical details Rated voltage: 230 Vac 50 Hz Supply connection: 13 A (double pole switched fused outlet with 3 mm contact gap) Description of the appliance Upper basket Cup shelf Spray arms Cutlery basket... -
Page 10: Control Panel
Control panel LCD display Program indicator neons Power on indicator neon ON/OFF button Start/pause button Program selection button Door handle Delay start button Rinse aid indicator neon Salt indicator neon LCD display 1) Timer symbol: Will show a delay start time, time remaining on a wash program and fault codes. -
Page 11: Using Your Dishwasher
Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet. o Fill the water softener with 1 litre of tap water and then fill with specialist dishwasher salt. After this you should set the water softener level. -
Page 12: Setting The Water Softener Level
o It is perfectly normal for a small amount of water to come out of the water softener container, whilst you are filling it with salt. This does not mean that the container is filled with the correct amount of salt. o Refit and fully tighten the water softener cap. -
Page 13: Filling With Rinse Aid
4. The “middle” selector position is halfway between the minus and plus symbols. o IMPORTANT: If you are using 3 in 1 dishwasher tablets and live in a medium or hard water area, then you should still fill the water softener container with salt. The water softener arrow should be turned to the minus setting. -
Page 14: Setting The Rinse Aid Level
Setting the rinse aid level The amount of rinse aid that the dishwasher requires also depends on the hardness of your water. You should experiment with the rinse aid setting, until you find a level that gives the best results. o On the first wash cycle, we would recommend that the rinse aid level is set to number 2. -
Page 15: Loading The Upper Basket
o The section marked 2 in the diagram can have separate detergent placed in it for any wash cycle that has a pre-wash element to it, however this is optional. This must be a liquid or powder detergent, not another detergent tablet. o Shut the detergent dispenser lid and position the clip on the outer edge, so that it holds the lid shut. -
Page 16: Adjusting The Upper Basket
Adjusting the upper basket Your dishwasher has an adjustable upper basket which you can alter to the most suitable position for the items you are going to wash in the upper basket. The height of the upper basket can be adjusted by pulling the handle on either side of the basket upwards until it clips into place. -
Page 17: Loading The Lower Basket
IMPORTANT: Care should be taken to make sure that the spray arms can move freely when items have been loaded into the baskets. Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. -
Page 18: The Cutlery Basket
The cutlery basket Cutlery should be placed inside of the cutlery basket. The cutlery basket should then be placed in the appropriate position in the lower basket. Forks Soup spoons Dessert spoons Teaspoons Knives Serving spoon Ladle Serving fork o For the best washing performance, cutlery should be placed through the slots in the top of the cutlery basket. -
Page 19: Loading Dishes And Cutlery
Loading dishes and cutlery Household cloths, sponges or any other object that may absorb water SHOULD NOT be washed in a dishwasher. o Remove leftovers and soften the remnants of burnt food in pans, prior to loading dishes in the appliance. o Once the dishwasher has been loaded, check that the spray arms can move freely. - Page 20 The following items are NOT suitable for washing inside a dishwasher:- o Cutlery with a handle of mother-of-pearl, wood, horn or china. o Plastic items that are not resistant to heat. o Cutlery that consists of glued parts that are not resistant to heat. o Cutlery items or crockery that are bonded.
-
Page 21: Program Table
Program table Program Cycle Program Description Detergent information of cycle pre/main Normal * For normally soiled loads, Pre-rinse 5 grams (pre- such as pots, plates, Pre-rinse rinse) glasses and lightly soiled Wash (50°C) 22 grams pans, standard daily cycle. Rinse (70°C) (main wash) Drying Intensive... -
Page 22: Changing A Wash Program
o Use the program selection button, to choose the wash program that you require. The program indicator neons will light, to show you which wash program you are selecting. o Select any program option that you want to use (e.g. delay start). -
Page 23: At The End Of A Wash Program
At the end of a wash program o The program indicator light will stop blinking and remain on; there will also be an audible signal that sounds for a period of time. The LCD display will show the word “END”. o Use the ON/OFF button to switch the dishwasher off. -
Page 24: Rinse Aid And Salt Indicator Neons
o Press the display start button to set the period of time that you want to delay the wash cycle for. o The period of time will increase in 30 minute intervals, each time that you press the delay start button. The period of time that you have set will appear on the LCD display. -
Page 25: Cleaning And Maintenance
Cleaning and maintenance IMPORTANT: The appliance should be disconnected from your mains supply before commencing any cleaning process. The filter system Your appliance is fitted with three levels of filtering; these are located in the base of the dishwasher for ease of access. Main filter Coarse filter Fine filter... -
Page 26: Cleaning The Filters
Cleaning the filters For best performance and results, the entire filter assembly should be thoroughly cleaned regularly (ideally after each wash cycle). 1. Turn the coarse filter anti-clockwise and then lift it upwards. Rinse out this section under a tap to remove any food debris that remains in it. -
Page 27: Cleaning The Spray Arms
Cleaning the spray arms The spray arms should be cleaned regularly, to prevent hard water deposits from clogging the spray arm jets and bearings. o IMPORTANT: Remove the lower basket before attempting to remove the lower spray arm. o To remove the spray arms, unscrew the nut and take out the washer that sits on top of the spray arms. -
Page 28: Cleaning The Door
Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them. - Page 29 Call Baumatic Service Department. IMPORTANT: If any other fault code appears in the display window, you should not attempt to clear it yourself and contact the Baumatic Service Department. IF THE FAULT CODE REAPPEARS AFTER FOLLOWING THE ABOVE ADVICE AND CLEARING THE FAULT CODE.
-
Page 30: General Troubleshooting
Utensils are not Ensure that everything is loaded as secure in the baskets per Baumatic’s loading instructions. or something small has dropped into the basket Motor hums If the dishwasher is not going to be... - Page 31 Dishes are not Rinse aid dispenser is Make sure that the rinse aid fully dried empty dispenser is filled with rinse aid. Dishes and Improper program Select a more intense wash pans are not program. clean Improper loading Make sure that the spray arms and the detergent dispenser are not being impeded by large dishes.
-
Page 32: Installation
Installation IMPORTANT: THIS INSTALLATION MUST BE COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION THE INSTALLATION GIVEN IN THIS INSTRUCTION MANUAL. YOU SHOULD DISPOSE OF ALL PACKAGING IN AN ENVIRONMENTALLY FRIENDLY MANNER. Positioning and levelling the appliance Remove all packaging from the outside and inside of the dishwasher. -
Page 33: Connecting To The Mains Water Supply
Adjust each of the four feet until the appliance is level. IMPORTANT: When the dishwasher is positioned in the location where it will be used. Make sure that all four feet are resting firmly on the floor, by pressing down on each corner and checking that the appliance stands still. -
Page 34: Water Outlet
Water outlet Secure the drain hose, so that it cannot move whilst the dishwasher is in use. Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. IMPORTANT: Do not insert the drain hose too deeply into the water pipe, as this may cause siphoning. -
Page 35: Before First Use
Consult the rating plate, located on the right hand side of the drop down door BEFORE making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the rating plate. DO NOT REMOVE THE RATING PLATE AS THE INFORMATION ON IT IS IMPORTANT. -
Page 36: Contact Details
Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, +420 800 185 263 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovak Republic Baumatic Slovakia, s.r.o. Sales Telephone Skultetyho 1...
