LUA8C
Install Column Loudspeaker

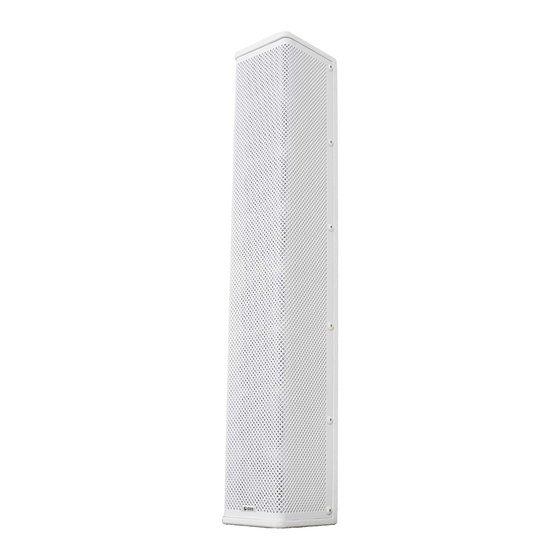

LUA8C is a versatile, powerful, Mid/High Frequency loudspeaker featuring
eight 3" wide-band high power transducers. This column loudspeaker features
all the expected benefits of this kind of driver arrangement: very focused and
controlled directivity, extremely natural and defined midrange reproduction
and surprising "throw" of acoustic energy for such contained dimensions.
For installations requiring very refined audio reproduction and superior
directivity control, it features a 4/16 Ohm selectable impedance switch, that
makes the LUA8C ideal for distributed audio solutions in highly reverberant
spaces or in locations where speech intelligibility is paramount.
IDEA provides for LUA8C recommended DSP settings for different processing
platforms, and with many different IDEA subwoofers, particularly with
BASSO12, BASSO12i, BASSO12t and BASSO24t.
LUA8C is available in all RAL colours as well as in weatherized versions (with
optional micro-perforated protection grill), and offers both adjustable angle
wall-mount and pole-mount accessories.
OPTIONAL INSTALLATION ACCESSORIES
LUA8C feature optional wall-mount dedicated accessort for ease of
installation in distributed audio environments in order to easily integrate with
the venue, as well as a pole-mount accessory for easy setup in mobile sound
applications.
The U-Bracket WM-L48C (shown in the image above) uses the cabinet's four
M8 insert to attach the bracket and M6 bolts to to lock the desired angulation
points with 7 horizontal positions and 4 vertical tilt angles
Screw the back plate to the wall, fit the anglulation parts to the cabinet
and slide down the LUA8C with the accesory into the back plate brackets to
assemble both parts. This easy, convenient installation process saves time
at the setup operation while allowing for precise vertical and horizontal
positioning of the loudspeaker.
The WM-LUA48 optional accessory couples to the bottom side of the cabintet
with 4 M6 insterts and features a 36-mm pole mount cup to use with any
standard 35-mm distance rod.
Quick Start Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUA8C and is the answer not in the manual?

Questions and answers

Summary of Contents for Idea LUA8C

  • Page 1 IDEA subwoofers, particularly with BASSO12, BASSO12i, BASSO12t and BASSO24t. LUA8C is available in all RAL colours as well as in weatherized versions (with optional micro-perforated protection grill), and offers both adjustable angle wall-mount and pole-mount accessories.
  • Page 2 ® Cabinet Construction 12 mm Birch Plywood Grille 1.5 mm perforated weatherised steel with protective foam Finish Durable IDEA proprietary Aquaforce high-resistance paint coating process Installation Dedicated install and pole-mount accessories Accessories Pole Mount Accessory (PM-L48) Wall Mount Accessory (WM-L48) IEC filtered pink noise with a 6dB crest factor, 2 hours.
  • Page 3 • IDEA declines any responsibility from misuse that may result in malfunction or damage of the equipment. WARRANTY • All IDEA products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical parts and 2 years from date of purchase for electronic devices.
  • Page 4 For further information scan the QR Code or refer to the following web address: www.ideaproaudio.com/lua8c IDEA is always in pursuit of better performance, greater reliability and design features. Technical specifications and minor finish details may vary without notice in order to improve our products.
