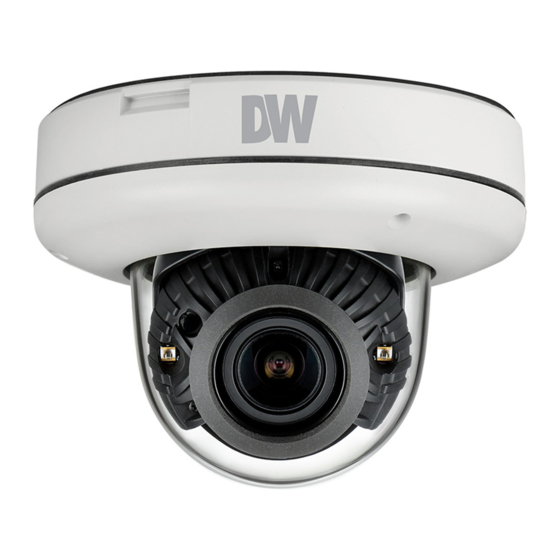

Digital Watchdog MEGApix DWC-MV82WiA Quick Start Manual

Quick Start Guide
DWC-MV82WiA
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set Mount Plate
Template Sheet
Screw & Plastic
for installing by 1 Set
Anchor – 3pcs
Bolt & Nut
Template Sheet
for installing by 1 Set Torx Wrench
Plate
Mount Bolt &
1 Set
Nut – 2pcs
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. For the installation process, remove the dome cover from the camera module
by loosening the three (3) screws on the dome. Use the wrench provided with
the camera.
4. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power Requirements
DC 12V
1 Set PoE IEEE 802.3atPoE+ / PoE Class 3
1 Set
Step 3 – INSTALLING THE CAMERA
1 Set
6. For soft installation surfaces, use the included metal mount plate. Fix the mount
plate on the mounting surface using the included screws. Then, press the
bottom case onto the mount plate. The three bezels on the case will align and
snap lock onto the plate.
7. Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
camera's maximum tilting angle is 75.
8. Assemble the dome cover over the camera body and detach the protecting film
from the dome bubble.
WARNING
digital-watchdog.com
Power Consumption
Auto Focus Working: MAX 7.5W
LED On: 4.2W
LED Off: 2.5W
DO NOT TOUCH THE SURFACE OF THE BUBBLE.
™
CleanView Hydrophobic Dome Coating Repels.

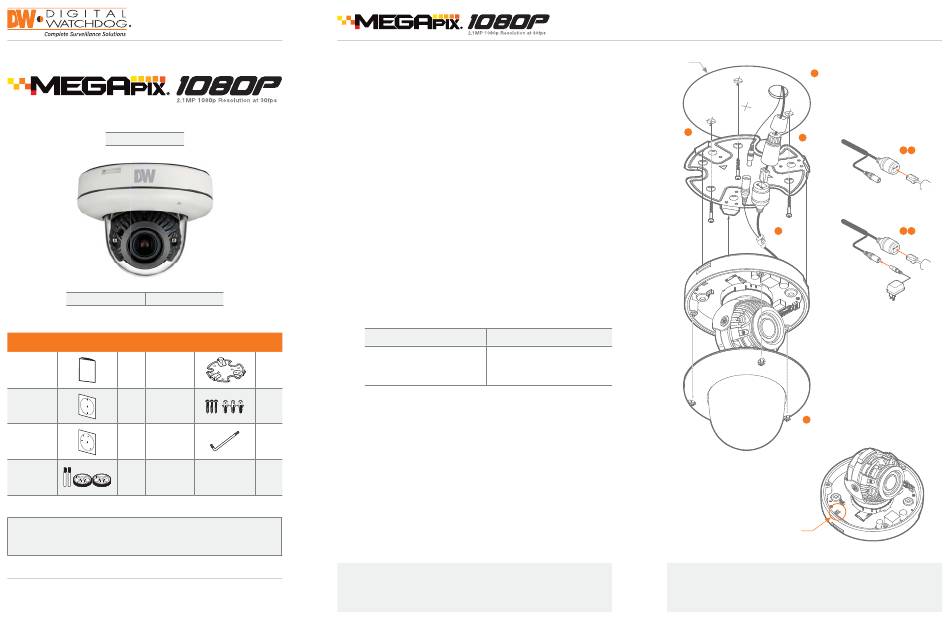

Quick Start Guide
Template
Sheet
1
4
5
2
3
Reset
Button
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
5 a
Ethernet
Cable
5 b
Ethernet
Cable
Power
