Item #1006867925, 1006867919, 1007349488, 1007315717
Model #WFC1830, WFC3018, WFC1830-G, WFC3018-G
USE AND CARE GUIDE

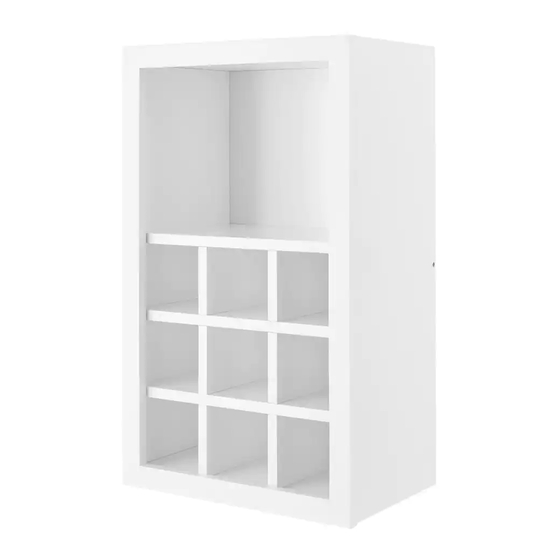

WALL FLEX CABINET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wall cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY WFC1830
Summary of Contents for HAMPTON BAY WFC1830
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wall cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Assembly. -
Page 3: Pre-Assembly
Pre-Assembly BEFORE YOU BEGIN Compare all parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not assemble this product. Contact Customer Service. Assemble the cabinet on a soft surface such as carpet or the cardboard container of this product. TOOLS REQUIRED Phillips Rubber mallet... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Back Panel Side Panels Face Frame Top Panel Bottom Panel Middle Shelves 1 – 2* Top Shelf Dividers 2 – 4* * 18x30 Flex cabinets have 2 middle shelves and 2 dividers. * 30x18 Flex cabinets have 1 middle shelf and 4 dividers. -
Page 5: Assembly
Assembly Attaching the posts to the panels □ Align four posts (AA) with pre-drilled holes on each of the panels and frame (A – C) and secure with four screws (BB) on each panel and frame (A – C). Attaching the side panels into the face frame □... - Page 6 Assembly (continued) Attaching the top and bottom panels □ Slide top and bottom panels (D and E) into the grooves of the assembly. □ Snap four corner locks (CC) over the posts to secure the assembly, as shown. Installing the shelves □...
- Page 7 Assembly (continued) Installing the dividers □ Slide dividers (H) into mating grooves on the shelves. Attaching the back panel □ Install the back panel (A) and attach the four remaining corner locks (CC), as shown. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Assembly (continued) Securing the corner locks □ Insert a screw (BB) through the hole in each of the eight corner locks (CC), and screw into the top/bottom panels. Securing the back and side panels in place □ Insert screws (BB) into countersunk holes in the back (A) and side panels (B). NOTE: Wall cabinets 27 in.
-
Page 9: Care And Cleaning
Care and Cleaning □ For normal spills, a damp cloth is sufficient. Dry the surface immediately. □ Do not use caustic agents and/or abrasive scrubbers, or oven cleaners. □ Cabinets can be cleaned with a damp sponge or cloth using soapy water, or most general purpose household cleaners. Do not use any abrasive cleaner or scrubbers. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
