DESCRIPTION
Demonstration circuit
DC1872A
a high efficiency, high density switch mode step-down
power µModule
regulator. The input voltage range is
®
from 4.5V to 20V. The output voltage is jumper pro-
grammable from 1.0V to 1.8V with a rated load current
of 20A. Derating is necessary for certain V
quency and thermal conditions. The DC1872A offers the
TRACK/SS pin, allowing the user to program output track-
ing or soft-start period. The DC1872A allows the user to
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Voltage V
OUT
Maximum Continuous Output Current
Operating Frequency
Efficiency
Load Transient

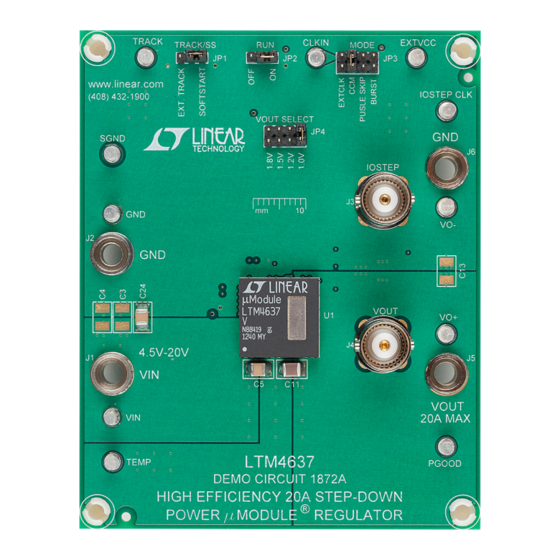

BOARD PHOTO
features the
LTM
4637EV,
®
, V
, fre-
IN
OUT
CONDITIONS / NOTES
Jumper Selectable
Derating Is Necessary for Certain Operating
Conditions. See Data Sheet for Details
R
=124kΩ
fSET
V
= 12V, V
= 1.0V, I
IN
OUT
V
= 12V, V
= 1.0V
IN
OUT

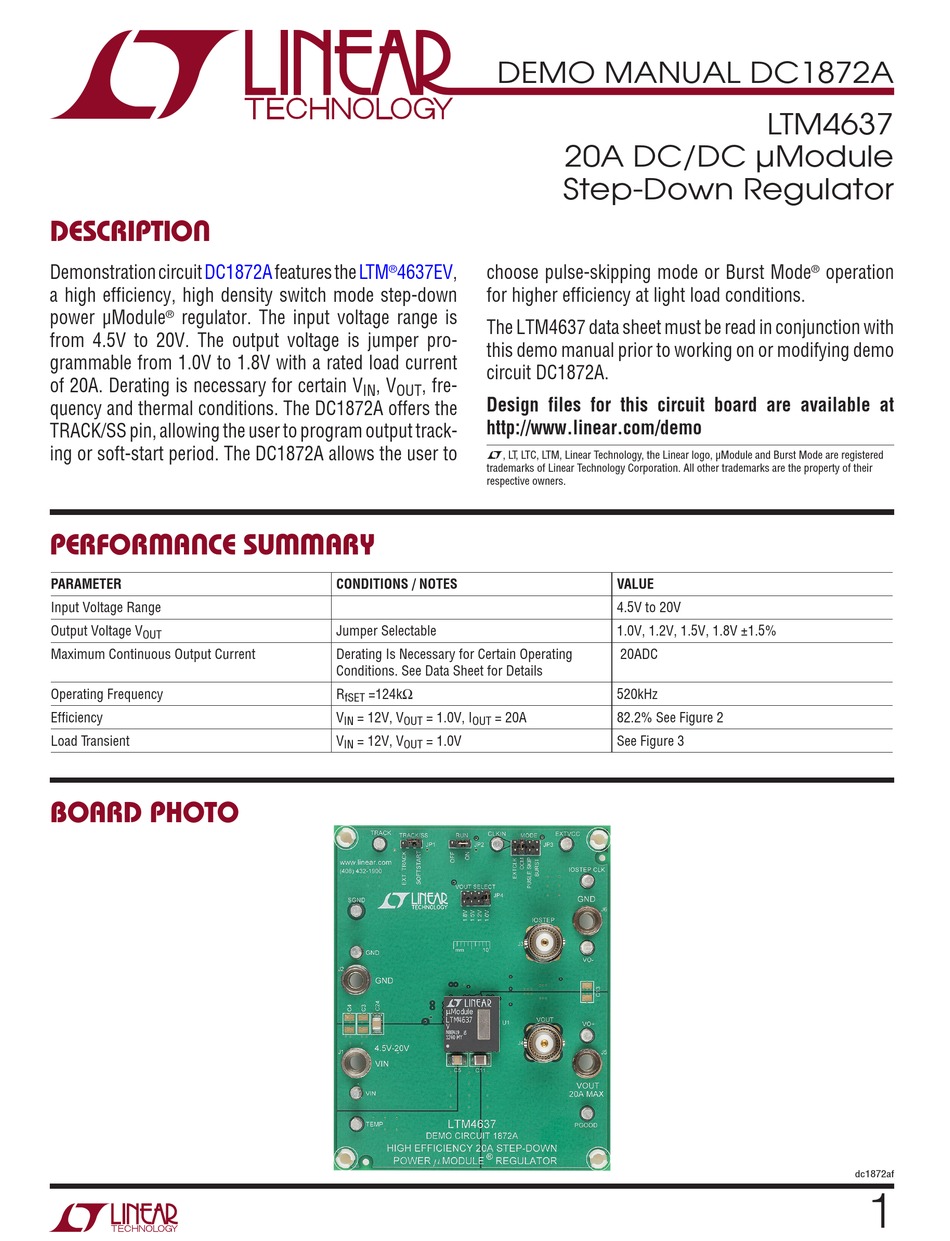

DEMO MANUAL DC1872A
20A DC/DC µModule
Step-Down Regulator
choose pulse-skipping mode or Burst Mode
for higher efficiency at light load conditions.
The LTM4637 data sheet must be read in conjunction with
this demo manual prior to working on or modifying demo
circuit DC1872A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule and Burst Mode are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
VALUE
4.5V to 20V
1.0V, 1.2V, 1.5V, 1.8V ±1.5%
20ADC
520kHz
= 20A
82.2% See Figure 2
OUT
See Figure 3
LTM4637
operation
®
dc1872af
1
