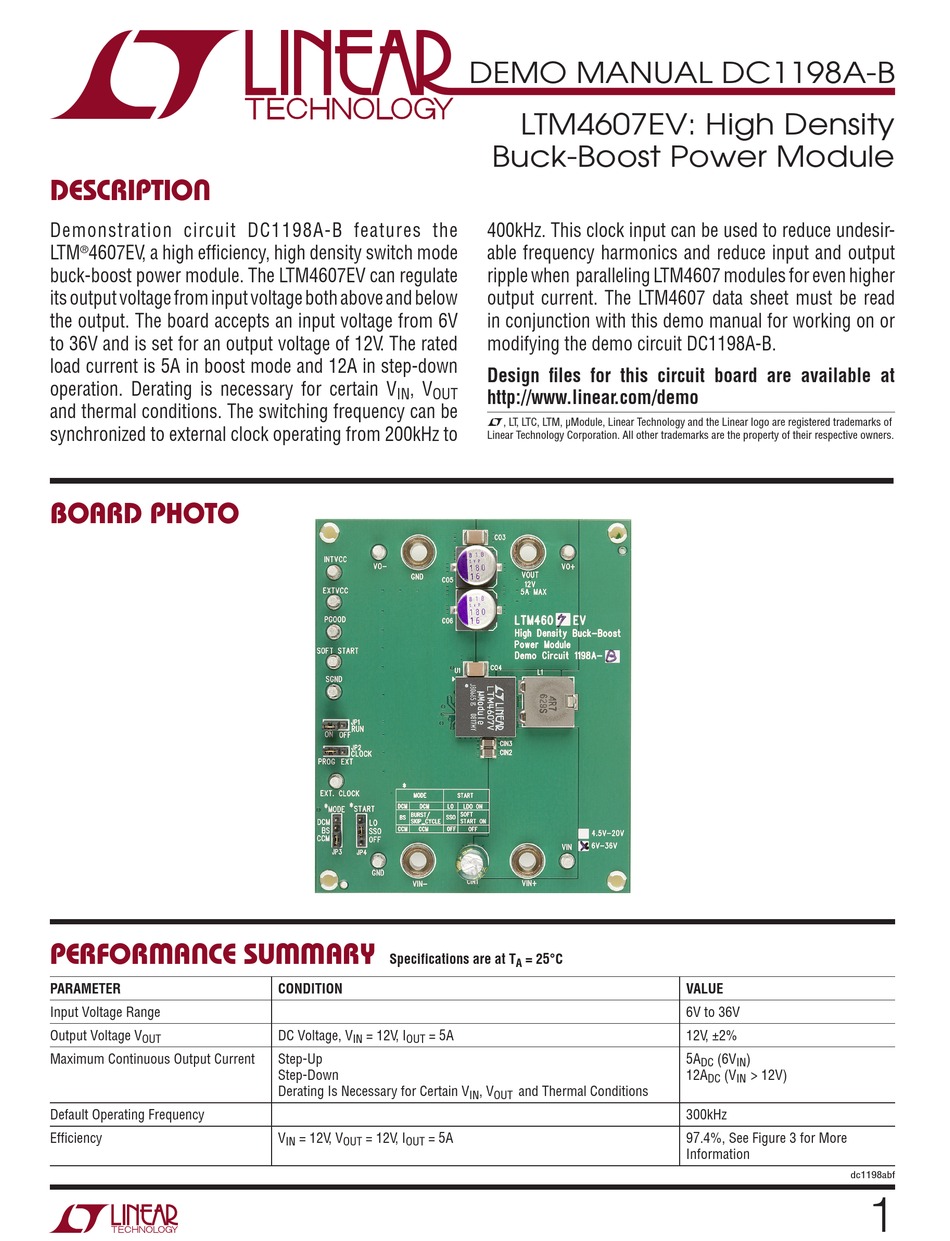

DESCRIPTION
Demonstration circuit DC1198A-B features the
LTM
4607EV, a high efficiency, high density switch mode
®
buck-boost power module. The LTM4607EV can regulate
its output voltage from input voltage both above and below
the output. The board accepts an input voltage from 6V
to 36V and is set for an output voltage of 12V. The rated
load current is 5A in boost mode and 12A in step-down
operation. Derating is necessary for certain V
and thermal conditions. The switching frequency can be
synchronized to external clock operating from 200kHz to

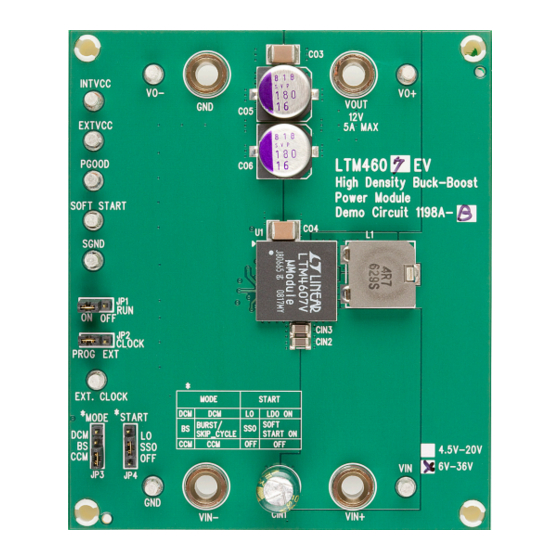

BOARD PHOTO
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Voltage V
OUT
Maximum Continuous Output Current
Default Operating Frequency
Efficiency
, V
IN
OUT
Specifications are at T
CONDITION
DC Voltage, V
= 12V, I
= 5A
IN
OUT
Step-Up
Step-Down
Derating Is Necessary for Certain V
V
= 12V, V
= 12V, I
= 5A
IN
OUT
OUT
DEMO MANUAL DC1198A-B
LTM4607EV: High Density
Buck-Boost Power Module
400kHz. This clock input can be used to reduce undesir-
able frequency harmonics and reduce input and output
ripple when paralleling LTM4607 modules for even higher
output current. The LTM4607 data sheet must be read
in conjunction with this demo manual for working on or
modifying the demo circuit DC1198A-B.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
= 25°C
A
, V
and Thermal Conditions
IN
OUT
VALUE
6V to 36V
12V, ±2%
5A
(6V
)
DC
IN
12A
(V
> 12V)
DC
IN
300kHz
97.4%, See Figure 3 for More
Information
dc1198abf
1
Advertisement
Related Manuals for Linear Technology DC1198A-B
Summary of Contents for Linear Technology DC1198A-B
- Page 1 The switching frequency can be L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of synchronized to external clock operating from 200kHz to Linear Technology Corporation. All other trademarks are the property of their respective owners.
- Page 2 DEMO MANUAL DC1198A-B QUICK START PROCEDURE Demonstration circuit DC1198A-B provides a simple way 4. Once the proper output voltage is established, adjust to evaluate the performance of the LTM4607EV. Please the load within the operating range and observe the refer to Figure 1 for the proper measurement equipment...
-
Page 3: Quick Start Procedure
DEMO MANUAL DC1198A-B QUICK START PROCEDURE O(AC) 100mV/DIV STEP 2A/DIV = 6V DC1198AB F04 200µs/DIV = 12V = 6V, V = 12V = 32V CONTINUOUS CURRENT MODE (CCM) 1.25A TO 3.75A LOAD STEP = 2 × 22µF CERAMIC (1812, X7R, 16V), LOAD CURRENT (A) 2 ×... -
Page 4: Parts List
DEMO MANUAL DC1198A-B PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components Cap., Alum, 100µF , 20%, 50V Sanyo 50ME100WXV+TS Cap., X5R, 4.7µF , 10%, 50V, 1206 Taiyo Yuden UMK316BJ475KL-T Cap., X7R, 0.01µF , 25V, 10%, 0603 AVX 06033C103KAT4A CO3, CO4 Cap., X7R, 22µF , 16V, 20%, 1812... -
Page 5: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
