Linear Technology LTM8021 Manual

36vin, 500ma step-down dc/dc umodule

Advertisement

Quick Links

FeaTures
Complete Switch Mode Power Supply
n
Wide Input Voltage Range: 3V to 36V
n
500mA Output Current
n
0.8V to 5V Output Voltage
n
Fixed 1.1MHz Switching Frequency
n
Current Mode Control
n
(e4) RoHS Compliant Package with Gold
n
Pad Finish
Programmable Soft-Start
n
Tiny, Low Profile (11.25mm × 6.25mm × 2.82mm)
n
Surface Mount LGA Package
applicaTions
Automotive Battery Regulation
n
Power for Portable Products
n
Distributed Supply Regulation
n
Industrial Supplies
n
Wall Transformer Regulation
n

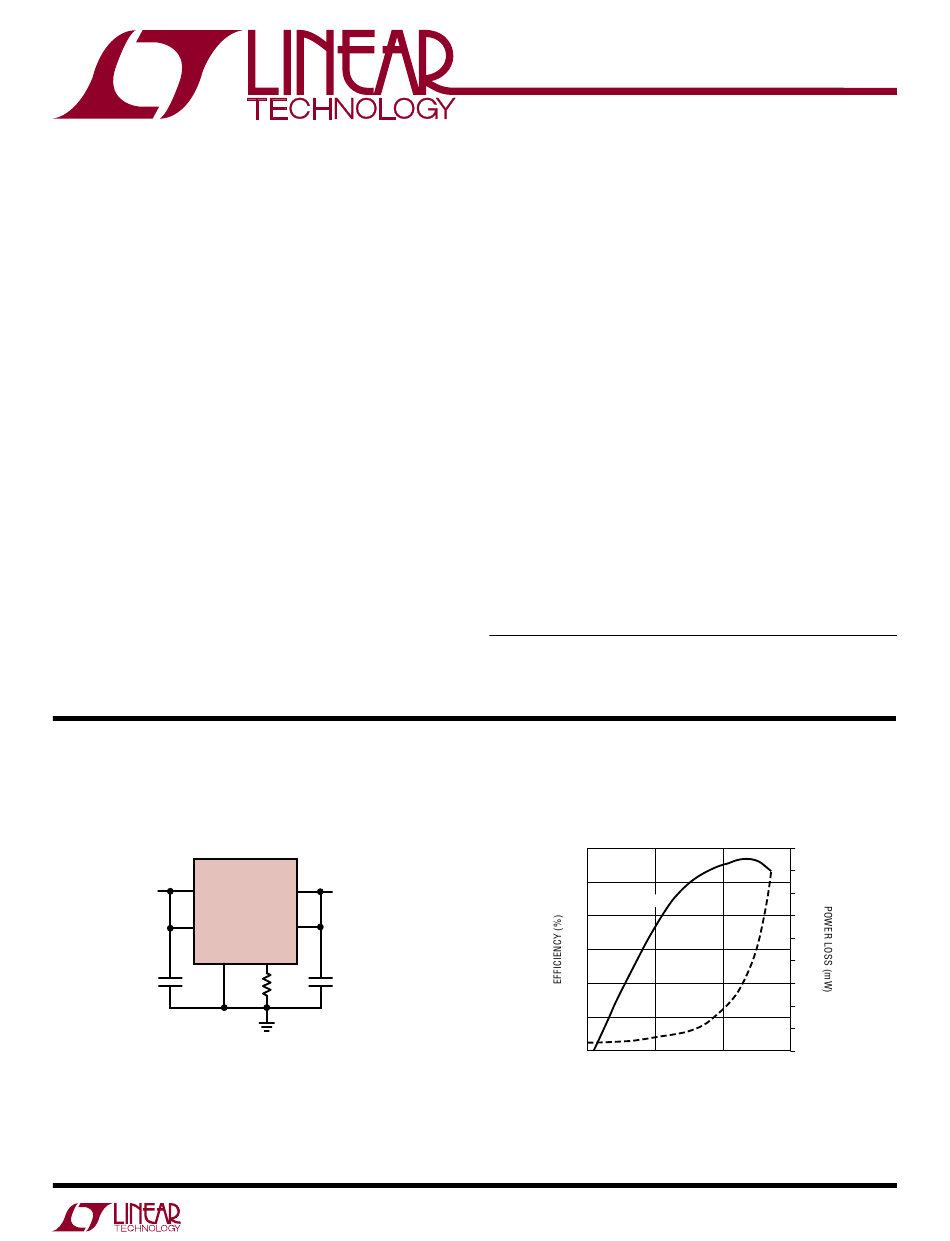

Typical applicaTion
7V
to 36V
, 5V/500mA µModule Regulator
IN
IN
LTM8021
V
*
IN
7V TO
IN
36V
RUN/SS
GND
1µF
*RUNNING VOLTAGE RANGE. PLEASE REFER TO THE
APPLICATIONS INFORMATION SECTION FOR START-UP DETAILS.
V
OUT
OUT
5V AT 500mA
BIAS
ADJ
2.2µF
19.1k
8021 TA01a
For more information
Step-Down DC/DC µModule
DescripTion
The
LTM
8021
is a 36V
®
µModule
. Included in the package are the switching
®
controller, power switches, inductor, and all support
components. Operating over an input voltage range of 3V
to 36V, the LTM8021 supports an output voltage range of
0.8V to 5V, set by a single resistor. Only an output and
bulk input capacitor are needed to finish the design.
The low profile package (2.82mm) enables utilization of
unused space on the bottom of PC boards for high den-
sity point of load regulation. A built-in soft-start timer is
adjustable with just a resistor and capacitor.
The LTM8021 is packaged in a thermally enhanced,
compact (11.25mm × 6.25mm) and low profile (2.82mm)
overmolded land grid array (LGA) package suitable
for automated assembly by standard surface mount
equipment. The LTM8021 is RoHS compliant.
L, LT, LTC, LTM, µModule, PolyPhase, Linear Technology and the Linear logo are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
Efficiency and Power Loss
90
80
EFFICIENCY
70
60
50
40
30
1.00
www.linear.com/LTM8021
LTM8021
36V
, 500mA
IN
500mA, step-down DC/DC
IN
450
400
350
300
250
200
150
POWER
100
LOSS
50
0
10.00
100.00
1000.00
LOAD CURRENT (mA)
8021 TA01b
8021fd
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTM8021 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology LTM8021

  • Page 1 The LTM8021 is RoHS compliant. Industrial Supplies Wall Transformer Regulation L, LT, LTC, LTM, µModule, PolyPhase, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
  • Page 2: Absolute Maximum Ratings

    LTM8021 absoluTe MaxiMuM raTings pin conFiguraTion (Note 1) TOP VIEW , RUN/SS Voltage ..........40V RUN/SS Above V ............3V ADJ Voltage ..............5V BANK 1 BANK 2 BIAS Voltage ...............7V Voltage .............10V BIAS Internal Operating Temperature Range (Note 2) ........–40°C to 125°C...
  • Page 3 LTM8021 elecTrical characTerisTics denotes the specifications which apply over the full operating temperature range, otherwise specifications are at T = 25°C, V = 10V, V = 10V, V = 3V, R = 31.6k. RUN/SS BIAS SYMBOL PARAMETER CONDITIONS UNITS DC Output Voltage = 24V, 0 ≤...
  • Page 4: Typical Performance Characteristics

    LTM8021 Typical perForMance characTerisTics = 25 C, unless otherwise noted ° Efficiency vs Load Current Efficiency vs Load Current Efficiency vs Load Current = 1.8V = 2.5V = 3.3V = 5V = 5V = 5V = 12V = 12V = 12V...
  • Page 5 LTM8021 Typical perForMance characTerisTics = 25 C, unless otherwise noted ° Input Current vs Output Current Input Current vs Output Current Input Current vs Output Current = 24V = 5V = 12V = 3.3V = 5V = 5V = 3.3V = 3.3V...
  • Page 6: Pin Functions

    GND (Bank 3): The GND connections serve as the main output load between these pins and GND pins. signal return and the primary heat sink for the LTM8021. Tie the GND pins to a local ground plane below the LTM8021 BIAS (Pin H3): The BIAS pin connects to the internal and the circuit components.
  • Page 7: Operation

    . The input voltage range is 3V the module in the event of a short circuit or overload fault. to 36V. Given that the LTM8021 is a step-down converter, The LTM8021 is based upon a 1.1MHz fixed frequency make sure that the input voltage is high enough to support PWM current mode controller, equipped with cycle skip the desired output voltage and load current.
  • Page 8 LTM8021 applicaTions inForMaTion Table 1. Recommended Component Values and Configuration RANGE BIAS 3.4V to 36V 0.8V 4.7µF 100µF 1210 8.2M 3V to 7V 3.4V to 36V 1.2V 4.7µF 100µF 1210 200k 3V to 7V 3.4V to 36V 1.5V 4.7µF 100µF 1210...
  • Page 9 TO START TO START RUN/SS ENABLED RUN/SS TO RUN ENABLED TO RUN 0.001 0.01 0.001 0.01 LOAD CURRENT (A) LOAD CURRENT (A) 8021 F01 Figure 1. The LTM8021 Requires More Voltage to Start Than to Run 8021fd For more information www.linear.com/LTM8021...
  • Page 10 Care needs to be taken in systems where the output will 1. Place the C capacitor as close as possible to the V be held high when the input to the LTM8021 is absent. and GND connection of the LTM8021. This may occur in battery charging applications or in battery backup systems where a battery or some other 2.
  • Page 11 (5c) 8021 F05 20µs/DIV Figure 5. Ensures Reliable Operation When the LTM8021 is Connected to a Live Supply 4. Connect all of the GND connections to as large a source forms an under damped tank circuit, and the volt- copper pour or plane area as possible on the top layer.
  • Page 12 Thermal Considerations enclosure. This environment is sometimes referred to as The LTM8021 output current may need to be derated if it still air although natural convection causes the air to move. is required to operate in a high ambient temperature or This value is determined with the part mounted to a JESD deliver a large amount of continuous power.
  • Page 13 LTM8021. The bulk of the heat flow out of the LTM8021 operating condition of a µModule converter. Thus, none is through the bottom of the μModule converter and the of them can be individually used to accurately predict the LGA pads into the printed circuit board.
  • Page 14: Typical Applications

    LTM8021 Typical applicaTions 1.8V Step-Down Converter 0.8V Step-Down Converter LTM8021 LTM8021 3.4V TO 36V 1.8V AT 500mA 3.4V TO 36V 0.8V AT 500mA BIAS BIAS RUN/SS RUN/SS 100µF 100µF 1µF 1µF 78.7k 8021 TA02 8021 TA03 *RUNNING VOLTAGE RANGE. PLEASE REFER TO THE APPLICATIONS INFORMATION SECTION FOR START-UP DETAILS.
  • Page 15: Package Description

    LTM8021 package DescripTion Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings. LGA Package 35-Lead (11.25mm × 6.25mm × 2.82mm) (Reference LTC DWG # 05-08-1805 Rev B) 2.72 – 2.92 11.250 aaa Z MOLD SUBSTRATE 6.250 0.27 – 0.37 2.40 –...
  • Page 16 LTM8021 package DescripTion LTM8021 Pinout (Sorted by Pin Number) SIGNAL DESCRIPTION RUN/SS BIAS 8021fd For more information www.linear.com/LTM8021...
  • Page 17: Revision History

    12, 13 8021fd Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation For more information www.linear.com/LTM8021 that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 18: Package Photo

    ≤ 5V, 11.25mm × 9mm × 2.82mm, Pin-Compatible to the LTM8022 8021fd Linear Technology Corporation LT 0314 REV D • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 For more information www.linear.com/LTM8021 (408) 432-1900 FAX: (408) 434-0507 www.linear.com/LTM8021  LINEAR TECHNOLOGY CORPORATION 2008 ● ●...
