Names Of Parts - Sharp XL-3500H Service Manual

XL-3500H
1
2
3
4
1 2 3
9
10
1
2
3
4
5
<The bottom of the unit>
MODEL NO. XL-3500H
COMPACT AUDIO SYSTEM
230 V 50 Hz 45 W
SERIAL NO.
SHARP CORPORATION
(For Europe)
1
2
3

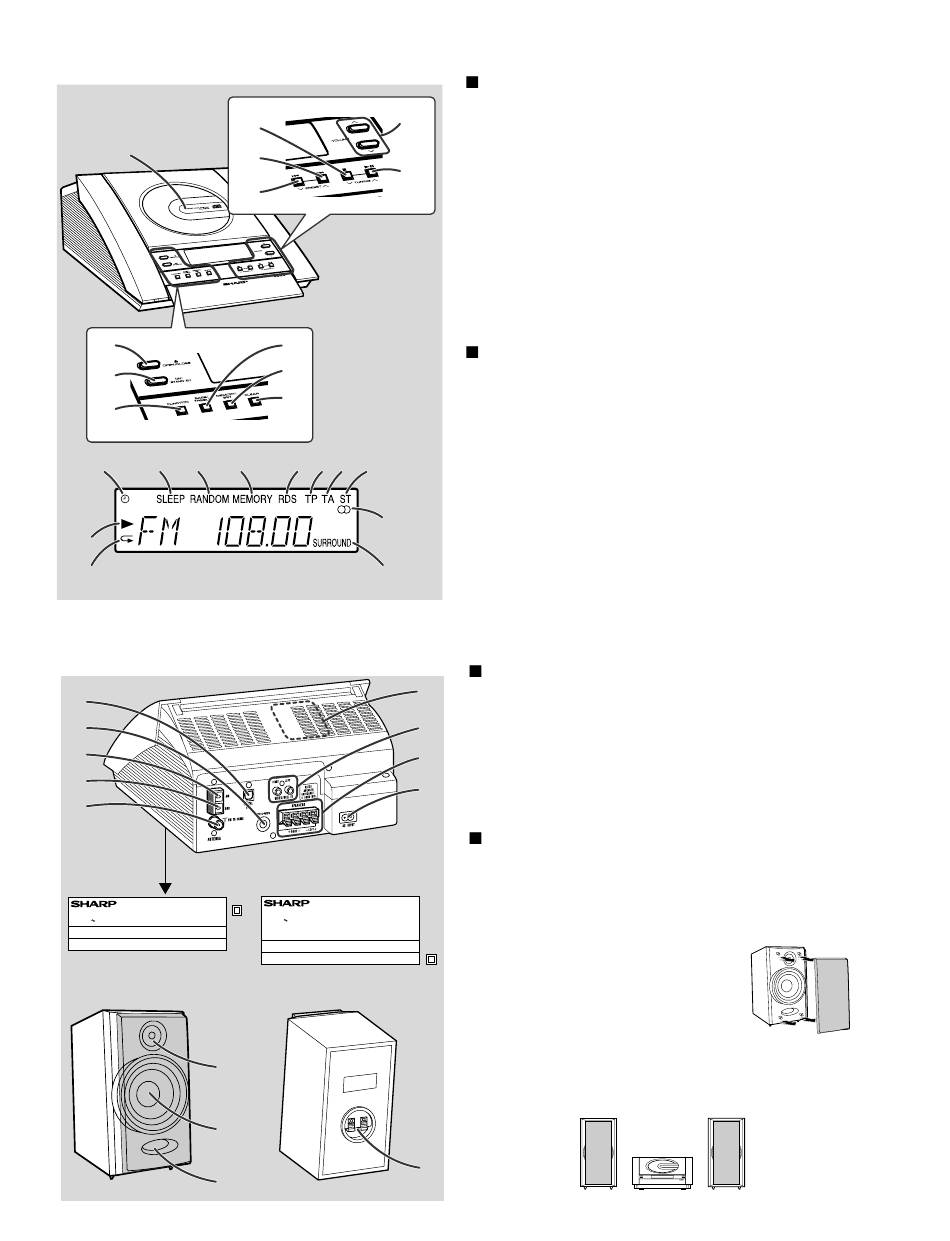

NAMES OF PARTS

11
8
9
12
10
5
6
7
4 5 6 7 8
11
12
MODEL NO. XL-3500H
COMPACT AUDIO SYSTEM
230 V 50 Hz 45 W
FREQUENCY RANGE : FM 87.5 – 108 MHz
FREQUENCY RANGE : AM 522 – 1620 kHz
SERIAL NO.
SHARP CORPORATION
(For U.K.)
Front panel
1. CD Compartment
2. CD Open/Close Button
3. On/Stand-by Button
4. Function Selector Button
5. Bass/Treble Selector Button
6. Memory/Set Button
7. Clear Button
8. CD Stop, Tuning Down Button
9. CD Track Up or Fast Forward,
Tuner Preset Up Button
10. CD Track Down or Fast Reverse,
Tuner Preset Down Button
11. Volume Up and Down Buttons
12. CD Play or Pause, Tuning Up Button
Display
1. Timer Play Indicator
2. Sleep Indicator
3. CD Random Play Indicator
4. Memory Indicator
5. RDS Indicator
6. Traffic Programme Indicator
7. Traffic Announcement Indicator
8. FM Stereo Mode Indicator
9. CD Play Indicator
10. CD Repeat Play Indicator
11. FM Stereo Receiving Indicator
12. Surround Indicator
Rear panel
6
1. CD Digital Output Socket
2. Headphone Socket
7
3. AM Aerial Terminal
4. Aerial Earth Terminal
8
5. FM 75 Ohms Aerial Socket
6. Cooling Fan
7. Video/Auxiliary (Audio Signal) Input Sockets
9
8. Speaker Terminals
9. AC Power Input Socket
Speaker system
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Terminals
Speaker grilles are removable:
Make sure nothing comes into contact with the
speaker diaphragms when you remove the
speaker grilles.
Placing the speaker system:
There is no distinction between the right and the left speakers.
Left speaker
4
– 4 –
Right speaker
