COMPACT AUDIO SYSTEM
MODEL
XL-3000
OPERATION MANUAL
XL3000(FRONT)
1
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please
read this manual carefully. It will guide you in operating
your SHARP product.

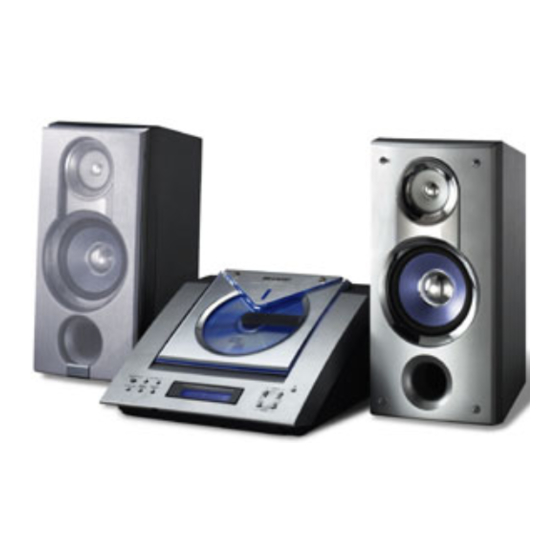

XL-3000 Compact Audio System consisting of XL-3000 (main
unit) and CP-XL3000U (speaker system).
01.2.14, 10:25 AM
Advertisement
Table of Contents
Related Manuals for Sharp XL-3000
Summary of Contents for Sharp XL-3000
- Page 1 Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. XL-3000 Compact Audio System consisting of XL-3000 (main unit) and CP-XL3000U (speaker system). 01.2.14, 10:25 AM...
-
Page 2: For Your Records
For your assistance in reporting this unit in case of loss or theft, please record below the model number and serial number which are located on the bottom of the unit. Please retain this information. 0012 Model number Serial number Date of purchase ... Place of purchase ... 0012 01/1/17 XL-3000(U2)1.fm 0010... -
Page 3: Important Safeguards
Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. 01/1/17 XL-3000(U2)1.fm 0010... -
Page 4: Table Of Contents
Programmed Play ........21 As an NERGY TAR® Partner, SHARP has determined that this product meets the registered mark. WHY PURCHASE Many Electrical /Electronic Products use energy both when they are on and when they are off. -
Page 5: Precautions
Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified. -
Page 6: Care Of Compact Discs
Accessories Please confirm that the following accessories are included. AC power cord 1 Remote control 1 (QACCD0001SJ00) (RRMCG0029SJSA) AM loop antenna 1 FM antenna 1 (QANTL0001SJZZ) (QANTW0002SJZZ) Speaker wire 2 (QCNWH0005SJZZ) Note: Only the above accessories are included. 01/02/22 XL-3000(U2)1.fm... -
Page 7: Controls And Indicators
3. CD Random Play Indicator 4. Memory Indicator 5. FM Stereo Mode Indicator 6. CD Play Indicator 7. CD Repeat Play Indicator 8. FM Stereo Receiving Indicator 9. Surround Indicator Description of remote control (See page 9.) 01/1/17 XL-3000(U2)1.fm Reference page... -
Page 8: Rear Panel
8. Speaker Terminals ......12, 14 9. AC Power Input Jack ......12, 14 01/1/17 XL-3000(U2)1.fm Reference page... -
Page 9: Remote Control
27. Treble Up and Down Buttons ......16 Battery installation for remote control (See page 11.) 01/1/17 XL-3000(U2)1.fm Reference page... -
Page 10: Speaker System
If the color variation is still present... Move the speakers further away from the TV. z If any kind of magnet or an electromagnet is placed too close to the TV and the system, irregular colors may appear on the TV screen. 01/1/17 XL-3000(U2)1.fm Right speaker... -
Page 11: Remote Control
Face the remote control directly to the remote sensor on the unit. The remote control can be used within the range shown below: Press the POWER button. Does the power turn on? Now, you can enjoy the music. Remote sensor 8" - 20' (0.2 m - 6 m ) 01/1/17 XL-3000(U2)2.fm... -
Page 12: System Connections
System Connections Right speaker AM loop antenna not supplied FM antenna Left speaker Speaker with a built-in amplifier (This speaker is not included.) not supplied MD recorder 01/1/17 XL-3000(U2)2.fm VCR, DVD, etc. not supplied AC outlet (AC 120 V, 60 Hz) -
Page 13: Antenna Connection
When an outdoor FM antenna is used, disconnect the supplied FM antenna wire from the FM 75 OHMS jack. z When using an outdoor AM antenna, be sure to keep the wire of the AM loop antenna connected. 01/1/17 XL-3000(U2)2.fm... -
Page 14: System Connections
Unplug the unit if it will not be used for a prolonged period of time. z Never use a power cord other than the one supplied. Otherwise, a malfunction or an accident may occur. 01/1/17 XL-3000(U2)2.fm Speaker with a built-in amplifier... -
Page 15: General Control
(OPEN/CLOSE) button. Caution: z Do not stop or move the CD compartment cover manually. It may cause malfunctions to the unit. z Be careful not to jam your fingers in the CD compartment cover. 01/1/17 XL-3000(U2)2.fm... -
Page 16: Sound Control
Press the SURROUND button to allow you to enjoy music that seems to surround you. "SURROUND" will appear. To cancel the surround mode, press the SURROUND button again. SURROUND Indicator Note: The surround effect cannot be obtained from monaural sound sig- nals. 01/1/17 XL-3000(U2)2.fm... -
Page 17: Setting The Clock
Perform "Setting the Clock" from the beginning. To change the 12-hour or 24-hour display: 1 Clear all the programmed contents. [Perform to step 3 under "If trouble occurs" on page 30 for details.] 2 Perform "Setting the Clock" from the beginning. 01/1/17 XL-3000(U2)2.fm... -
Page 18: Listening To A Cd
CD com- partment. Total number of Total playing time tracks Press the ( ) button to start playback from track 1. When the last track on the disc has finished playing, the CD player will stop automatically. 01/1/17 XL-3000(U2)2.fm... - Page 19 If it is left open, the lens may be covered with dust and the unit may not operate properly. z If TV or radio interference occurs during CD operation, move the unit away from the TV or radio. 01/1/17 XL-3000(U2)2.fm...
-
Page 20: Repeat Or Random Play
After performing repeat or random play, be sure to press the ton. Otherwise, the disc will play continuously. To cancel repeat or random play: Press the RANDOM/REPEAT button on the remote control repeat- edly to select the normal playback mode. 01/1/17 XL-3000(U2)2.fm Random playback mode but-... -
Page 21: Programmed Play
Even if you press the POWER button to enter the stand-by mode or the function is changed from CD to some other function, the programmed selections will not be cleared. z During program operation, random play is not possible. 01/1/17 XL-3000(U2)3.fm... -
Page 22: Listening To The Radio
When radio interference occurs, auto scan tuning may stop automatically at that point. z Auto scan tuning will skip weak signal stations. z To stop the auto tuning, press the TUNING button again. 01/1/17 XL-3000(U2)3.fm ) button... - Page 23 If the FM reception is weak, press the FUNCTION (BAND) button to extinguish the "ST" indicator. The reception changes to mon- aural, and the sound becomes clearer. After use: Press the POWER button to enter the power stand-by mode. 01/1/17 XL-3000(U2)3.fm...
-
Page 24: Listening To The Memorized Station
) button again when the de- sired station is located. „ To clear a memorized station Recall the memorized station. 2 While it is displayed, press the MEMORY/SET (MEMORY) but- ton. Within 5 seconds, press the CLEAR button on the remote con- trol. 01/1/17 XL-3000(U2)3.fm... -
Page 25: Timer And Sleep Operation
Within 1 minute, press the PRESET ( specify the hour to start, then press the MEMORY but- ton. Continued to the next page Setting the Clock (See page 17.) / Listening to the Radio (See page 22.) 01/1/17 XL-3000(U2)3.fm ) button to... - Page 26 It will enter the power stand-by mode 1 hour after the timer playback starts. (Another unit will not be turned on or off.) 01/1/17 XL-3000(U2)3.fm...
-
Page 27: To Use Timer And Sleep Operation Together
While the sleep timer is set, set the desired playback time (steps 4 - 6, pages 25 - 26). 1.Sleep timer setting 2.Timer playback setting End time 15 minutes - 3 hours Desired time Sleep operation will Timer playback automatically stop. start time 01/02/19 XL-3000(U2)3.fm... -
Page 28: Enhancing Your System
Be sure your headphones have a 1/8" (3.5 mm) diameter plug and are between 16 ohms and 50 ohms impedance. The recom- mended impedance is 32 ohms. z Plugging in the headphones disconnects the speakers automati- cally. Adjust the volume using the VOLUME buttons. 01/1/17 XL-3000(U2)3.fm... -
Page 29: Troubleshooting Chart
Troubleshooting Chart Many potential "problems" can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorized SHARP dealer or service center. „ General Symptom Possible cause... -
Page 30: Maintenance
Caution: z Do not use chemicals for cleaning (gaso- line, paint thinner, etc.). It may damage the cabinet finish. z Do not apply oil to the inside of the unit. It may cause malfunctions. AC INPUT 01/1/17 XL-3000(U2)3.fm... -
Page 31: Specifications
Specifications As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification fig- ures indicated are nominal values of production units. There may be some deviations from these values in individual units. -
Page 32: Consumer Limited Warranty
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer.
