Programmable Presets - Geo Knight Digital DK20 16x20 Manual

Programmable Presets

Programmable presets are stored
programs where commonly used
Temperature, Time and Height
(pressure) settings can be stored and
retrieved.
Presets can be recalled simply by
pressing the PRG key, selecting the
program desired with the arrow keys,
and pressing the PRG key again. This
will update the current settings on the
press with the settings in the preset.
Presets can be edited by pressing
the TEMP key while inside the programs.
When the display shows "SEt", press
the TEMP key to change the
temperature, time and PRS (height)
settings for that preset. The TEMP key
moves the flashing value from Temp to
Time to PRS and back to "SEt". The
arrow keys change the value.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
So... the PRG key enters into the
presets, and also exits the presets. When
exiting the presets, the press'
temperature & time is updated with the
values that were stored in the preset,
and the PRS display tells the operator
what height level to adjust the pressure
to.
8

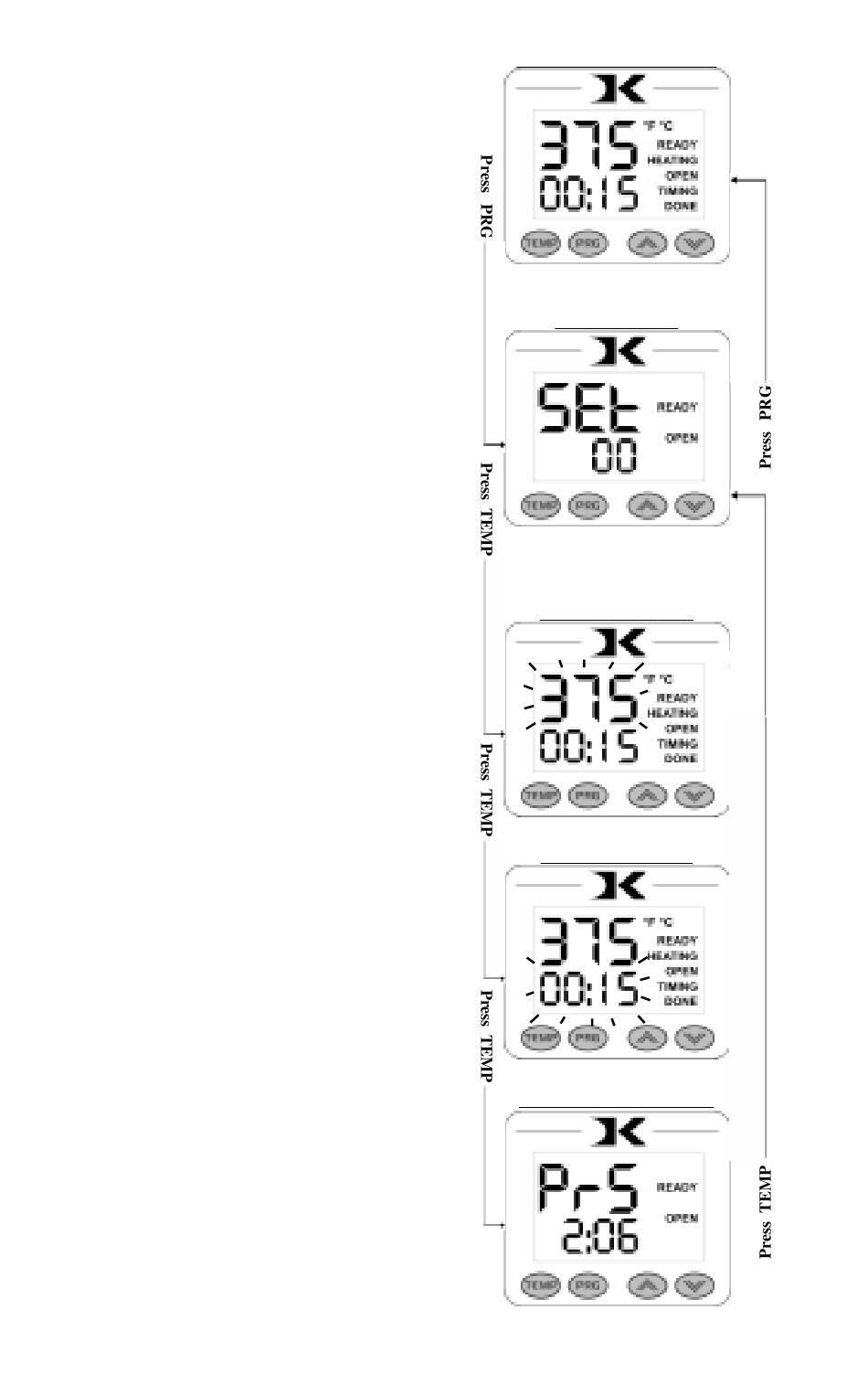

Normal Default Mode
Presets Mode
Edit Preset Temp
Edit Preset Time
Edit Preset Pressure/Height
