ProBuilder 24 CF Fireplace.
Installation Warnings
NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance
before installing the log set. If using firebacks, install them prior to installing the log set.
The logs are fragile, especially after being exposed to heat.
Make sure the gas control valve is OFF and the heater is cool prior to conducting service.
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
The burner must be correctly positioned before installing the log set. Make sure the burner is fully seated
and the pilot is properly aligned. See owner's manual for details on burner removal.
Log Set Overview

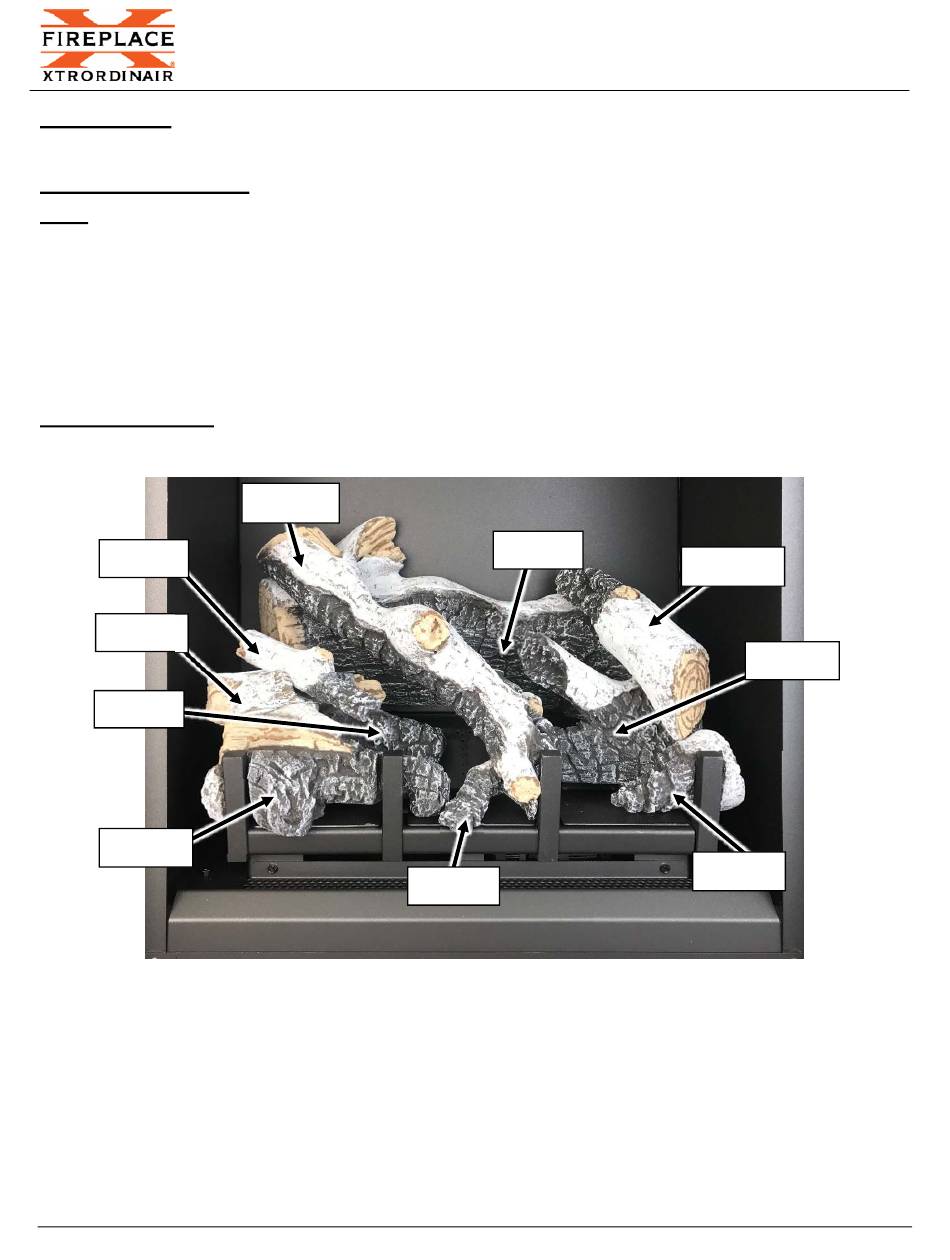

When installed, the ten (10) logs should appear as shown below.
Log #5
Page 1 of 9
PB24 CF Deluxe Log Set - Birch
17602093 - 2/5/20
(sku# 94500619)
Log #7
© Travis Industries, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB24 CF Deluxe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FireplaceXtrordinair PB24 CF Deluxe

Summary of Contents for FireplaceXtrordinair PB24 CF Deluxe

  • Page 1: Table Of Contents

    PB24 CF Deluxe Log Set - Birch (sku# 94500619) Compatibility  ProBuilder 24 CF Fireplace. Installation Warnings NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance before installing the log set. If using firebacks, install them prior to installing the log set.
  • Page 2 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Installation Log #1 Log #1 has two holes that fit over two pins on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes.
  • Page 3 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log #2 Log#2 has a groove in the bottom of the left side. The groove fits over a metal ridge on the left end of the bottom burner. Slide the log backwards until it contacts the sloped portion of the burner. Make sure the log does not block any burner holes.
  • Page 4 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log #4 Log #4 has (2) channels that align the log with the log grate. Place the log as shown below. Log #5 Place log #5 as shown below. The hole on the bottom of log #5 fits over the pin on Log #4.
  • Page 5 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log #6 Place log #6 as shown below. The hole on the bottom of log #6 fits over the pin on Log #5. The charred end points towards the center of the burner.

  • Page 6: Log #9

    PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log #8 Place log #8 as shown below. Log #8 has a notch that aligns the log with the finger of the log grate. Log #9 Place log #9 as shown below. The hole on the bottom of log #9 fits over the pin on left end of Log #1. The right end of log #9 rests on Log #7.
  • Page 7 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log #10 Place log #10 as shown below. There are (2) holes on the bottom of log #10. The round hole fits over the pin on right end of Log #1 and the slotted hole fits on the pin on log #3. The right end of log #10 rests on Log #8.
  • Page 8 PB24 CF Deluxe Log Set - Birch (sku# 94500619) Ember Installation NOTE: The embers are included with the fireplace. Consult the installation manual for details on installing the embers. If using the Ember-Glo light, the embers are installed with the Ember-Glo light glass.

  • Page 9: Log #6

    PB24 CF Deluxe Log Set - Birch (sku# 94500619) Log Replacement Part Numbers Log #1 250-05431 Log #2 250-05432 Log #3 250-05433 Log #4 250-05434 Log #5 250-05435 Log #6 250-05436 Log #7 250-05437 Log #8 250-05438 Log #9 250-05439...
