MASINGO Ostinato M7 User Manual

Hide thumbs Also See for Ostinato M7:

Advertisement

Quick Links

Download this manual
It's time to
like a pro
1

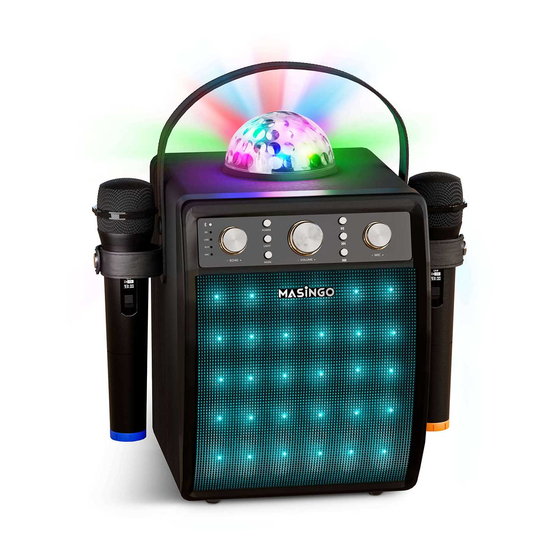

Karaoke Machine Ostinato M7
USER
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ostinato M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MASINGO Ostinato M7

Summary of Contents for MASINGO Ostinato M7

  • Page 1 It’s time to like a pro Karaoke Machine Ostinato M7 USER MANUAL...
  • Page 3 User manual Karaoke Machine - Ostinato M7...
  • Page 5 - your parties will be peppier with this beautifully - designed, deceptively-compact Ostinato M7 - Karaoke Machine from Masingo. Choose from Bluetooth, AUX, USB, MicroSD or FM mode to fill the room with melody.

  • Page 6: Parts And Features

    It’s the Whole Package! Parts & Features What’s included… 1x Masingo Karaoke Machine 2x UHF wireless microphone 1x 3.5 mm AUX cable 1x3.5 mm AUX - RCA cacle 1x Type C Charging cable 1x Performer’s manual What you’ll need... 4x AA batteries (2 for each wireless microphone) 1x USB plug or USB compatible device for charging What you’ll want...
  • Page 7 Function Board Front POWER LIGHT - ECHO + - MIC + - VOLUME + MODE 1. Bluetooth Mode Indicator 8. LED/Disco Ball Settings 2. MicroSD Mode Indicator 9. Switch Playback Mode 3. USB Mode Indicator 10. Speaker Volume +/- 4. AUX Mode Indicator 11.
  • Page 8 Function Board Back MICRO-SD POWER DC 5V LINE IN LINE OUT MIC 1 MIC 2 1. 6.5 mm Mic One Input 6. USB Slot 2. 6.5 mm Mic Two Input 7. Power Input 3. 3.5 mm AUX Line in 8. Charging Indicator Light 4.
  • Page 9 Take note: Review before using 1. Keep this manual for any future reference. 2. Adhere to all warnings. 3. Keep ventilation openings clear; do not black any of this machine’s vents/openings. 4. Install and sert up the machine according to the manufacturer’s instructions provided in this manual.
  • Page 10 1 #1 Charge the machine before use; insert two AA batteries into each microphone. Power on the machine and microphones. Select your preferred playback mode. Display lyrics on your smart device or the big screen. Grab a friend and sing away! i r f Do not expose the battery Do not expose this product...
  • Page 11 Machine How to charge the machine Plug the included USB charging cable into the machine’s power ’ input. Connect the included USB charging cord to a compatible USB plug or a compatible USB port. Be sure to charge the machine fully before each use.
  • Page 12 To connect your own wired microphones The Ostinato M7 is also compatible with wired microphones. Simply plug one or two 6.5mm microphones into the corresponding ports on the back of the machine. You may connect both wired and...
  • Page 13 To connect additional wireless microphones In order to connect additional wireless microphones, purchase a compatible wireless microphone receiver set. Connect it with the Ostinato M7 per the instructions provided by the wireless microphone receiver manufacturer. Music How to set up playback Your machine has six different playback options: Bluetooth, MicroSD, AUX, USB, FM, PA.
  • Page 14 How to use MicroSD mode (i.e playing music from an SD card) When the machine is on, plug your MicroSD card into the designated slot on the back of the machine. Press the Mode button until the indicator light appears next to MicroSD. Press the button on the front to begin playback or pause music.
  • Page 15 To play your music or voice from an external speaker rather than the Ostinato M7, plug the AUX cable into the line-out port on the back of the machine. Then, plug the other end of the adapter into the designated input on your chosen speaker.
  • Page 16 Maintenance How to Clean Turn the machine and microphones off. Unplug the machine from any connections to AUX, RCA, or power. Gently wipe the outside of the machine using a clean, dry cloth. Keep all vents, buttons, and openings free of lint and dirt. Do not n i l immerse the machine in water and do not use any harsh cleaners.
  • Page 17 Problem Solution Battery Icon on Microphone is a t t The Microphone battery is low red. or depleted. Replace the AA batteries in the microphone. Microphone will not turn on. The battery is depleted. Be sure tt t Machine will not turn on to charge the machine after each use.
  • Page 18 Ensure that the microphone volume control is raised to the Machine is not playing proper level. microphone vocals Ensure that each microphone is on. Ensure that the volume on the machine, remote, and your device (if applicable) are all turned up. No sound is playing from the Also check to see whether you speaker...
  • Page 20 If you encounter any issues with your machine—or if you have Warranty any questions or comments—please feel free to contact us. Have your warranty information on hand for faster service. 844-262-7464 support@masingo.net www.masingo.net Love your new machine? We want to hear about it!

  • Page 21: Fcc Warning

    FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
