www.satel-iberia.com

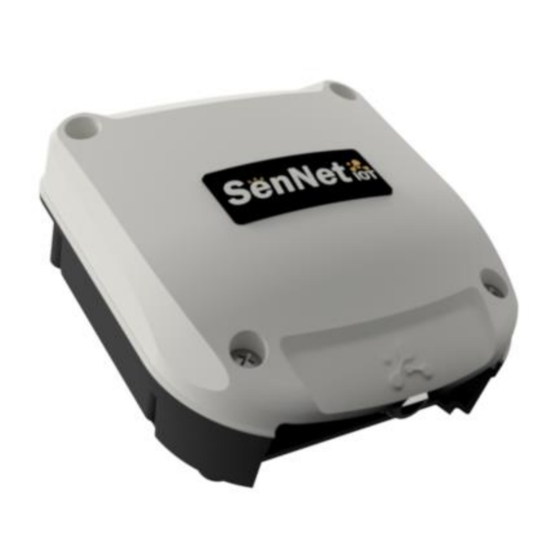

SenNet IoT Pulse Counter Sigfox
General description
SenNet IoT Pulse Counter Sigfox is a device that has 2 input standalone for impulse, type supported are reed or
transitorized output, specific from watermeter / electricity meter / heat meter etc..
Use sigfox network to connect with your cloud, you only need define interval to send.
These are the reference at depend of power supply type battery or AC power:
Reference
Pulse Counter Sigfox bat ++
Pulse Counter Sigfox AC
Wired & Setup
For transistorized output type is necessary take care polarity, and follow terminal's polarity.
Power supply type
Battery
3.6v@18000mAh (LS26500 x2)
AC Power supply
100-265Vac
1
Basic steps to intall:
1.
Set interval to send (by default 15 minutes).
2.
Set the type of uplink message , by default type 1 (counter 1 value)
,or type 2 (counter 1 value + counter 2 value).
3.
Take note ID / PAC to sign the device on Sigfox Cloud.
4.
Plug-in pack batteries to connector or AC power supply.
Setup parameters methods:
•
Throught donwlink message (see donwlink message seccion) ,
recommend method.
•
By cable micro-USB with PC console enter menu to set these
parameters.
SenNet Pulse Counter Sigfox
Advertisement
Related Manuals for SenNet IoT Pulse Counter Sigfox
Summary of Contents for SenNet IoT Pulse Counter Sigfox
- Page 1 SenNet IoT Pulse Counter Sigfox General description SenNet IoT Pulse Counter Sigfox is a device that has 2 input standalone for impulse, type supported are reed or transitorized output, specific from watermeter / electricity meter / heat meter etc.. Use sigfox network to connect with your cloud, you only need define interval to send.
- Page 2 Type message 1 / 20 minutes sends 7 years* Type message 2 / 20 minutes sends 6 years* *Main condition, low rate of pulse. If your rate of pulse counter is very high, use power supply versión. *specify on your order SenNet Pulse Counter Sigfox...
- Page 3 A common point in all types of messages is the head (defined with 2 bytes) that includes important information embedded in the message (type device/type message/errors.. etc). In the next table are defined the mean of SenNet IoT Pulse Counter Sigfox is an very low power device capable to measure up to 2 impulse input. Client these info-fields.
- Page 4 (by default) Bit 0 (by default) Example for downlink message: B0 00 00 00 00 01 0F 00 → With this downlink message set the remote with type of message 01 and interval to send 15minutes. SenNet Pulse Counter Sigfox...
-
Page 5: Warranty
For exposing the equipment to extreme temperatures, which exceed the operating or storage temperature limit. • Due to a modification of the product by the client without prior notice to Satel Spain. Faced with possible errors in this technical sheet, keep it updated in our website. SenNet Pulse Counter Sigfox...
