Quick Start Guide
LXC cameras (Camera Link
)
®
Download latest camera software:
www.baumer.com/vision/software
Download latest technical documentation:
www.baumer.com/cameras/docs

Conformity / Safety

Conformity
Saety Precautions
▪ Protect the sensor from dirt and
moisture.
▪ Never open the camera housing.
▪ Avoid camera contamination by foreign
We declare, under our sole responsibility, that the
objects.
described Baumer LXC cameras conform with the
directives of the CE.
Environmental requirements:
Storage temp.
Operating temp.
Several of the described Baumer LXC cameras con-
Housing temp.
form with the directives of the Korean Conformity.
Humidity
Please refer for the User's guide or technical
documentation.
Further Information
For further information about our products, please visit
www.baumer.com
For technical issues, please contact our technical support:
support.cameras@baumer.com
· Phone +49 (0)3528 4386-845 · Fax +49 (0)3528 4386-86
© Baumer Optronic GmbH · Badstrasse 30 · DE-01454 Radeberg, Germany
Technical data has been fully checked, but accuracy of printed matter is not guaranteed.The
information in this document is subject to change without notice.
Printed in Germany 08/21.
v18

Product Specification

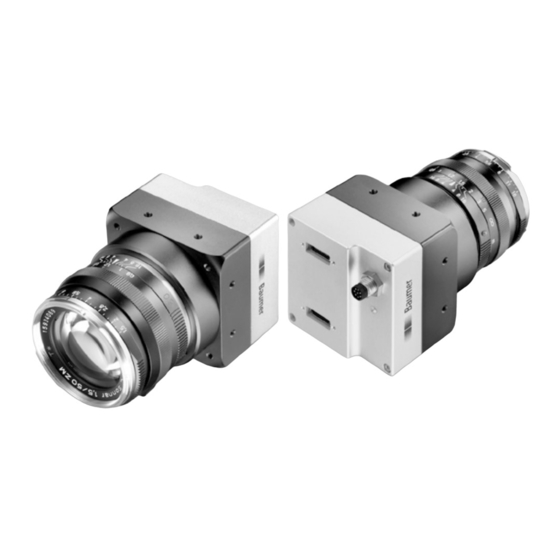

LXC cameras – Extremely high resolution and speed
▪ Camera Link
®
progressive scan CMOS camera
▪ Excellent image quality
▪ Global shutter architecture for minimized motion blur
▪ Binning and true partial scan function (ROI) for increased frame rates
▪ High Dynamic Range (HDR) image acquisition
▪ External synchronization via industrial compliant process interface (trigger / flash)
▪ Power over Camera Link
®
▪ Two standard 26 pin Mini-Camera Link
▪ Support for Camera Link
®
▪ Camera parameter programmable via GenCP protocol
Notice
Further technical details are available in the respective data sheet.

Lens Adapter for M58-Mount

▪ Adapter M58 / F-mount (Art. No.: 11117852)
▪ Adapter M58 / M42x1-mount (26.8mm) (Art. No.: 11127232)
▪ Adapter M58 / M42x1-mount (45.5 mm) (Art. No.: 11137781)
Notice
suitable for Zeiss (e.g. Distagon T* 2/25 Z-M42-I, Planar T* 1.4/50 Z-M42-I,
Makro-Planar T* 2/50 Z-M42-I) and KOWA M42 lenses (e.g. LM28LF P-Mount,
LM35LF P-Mount)
▪ Adapter M58 / C-mount (Art. No: 11115198)

Installation

Installation using
Camera Link
®
Base:
▪ Connect the camera using
an appropriate cable to the
framegrabber board on your
PC using the lower sdr-26
jack on the camera side
▪ If required, connect a strobe
to the connector
-10 °C ... +70 °C
+5 °C ... +50 °C
▪ Connect the camera to
max. +50 °C
power supply
10 % ... 90 %
Non-condensing
Installation using
Camera Link
®
Medium / Full
/ EightyBit:
▪ Connect the camera using
two appropriate cables to
the framegrabber board on
your PC.
▪ If required, connect a strobe
to the connector
▪ Connect the camera to
power supply
11160606
(PoCL) support
®
connectors
Base, Medium, Full and EightyBit configurations
Installation sample
1 - Framegrabber board; 2 - CameraLink
®
cable;
3 - Process interface cable; 4 - Power cable
Installation sample
1 - Framegrabber board; 2 - CameraLink
®
cable;
3 - Process interface cable; 4 - Power cable

Dimensions Camera with C-Mount

8
4,9
6
60
47
18,035 ±0,025
8
Pixel 0,0
47,95
4 x M3 x 6
43,05
8
8 x M3 x 6
38,45

Dimensions Camera with M58-Mount

8
60
47
12 ±0,025
8
Pixel 0,0
47,95 /
*)
50,02
4 x M3 x 6
43,05 /
45,12
*)
8
8 x M3 x 6
38,45 /
40,52
*)
48,8
(LXC-40C)
20
19,2
48,8
20
19,2
*)
LXC-250
