Connections

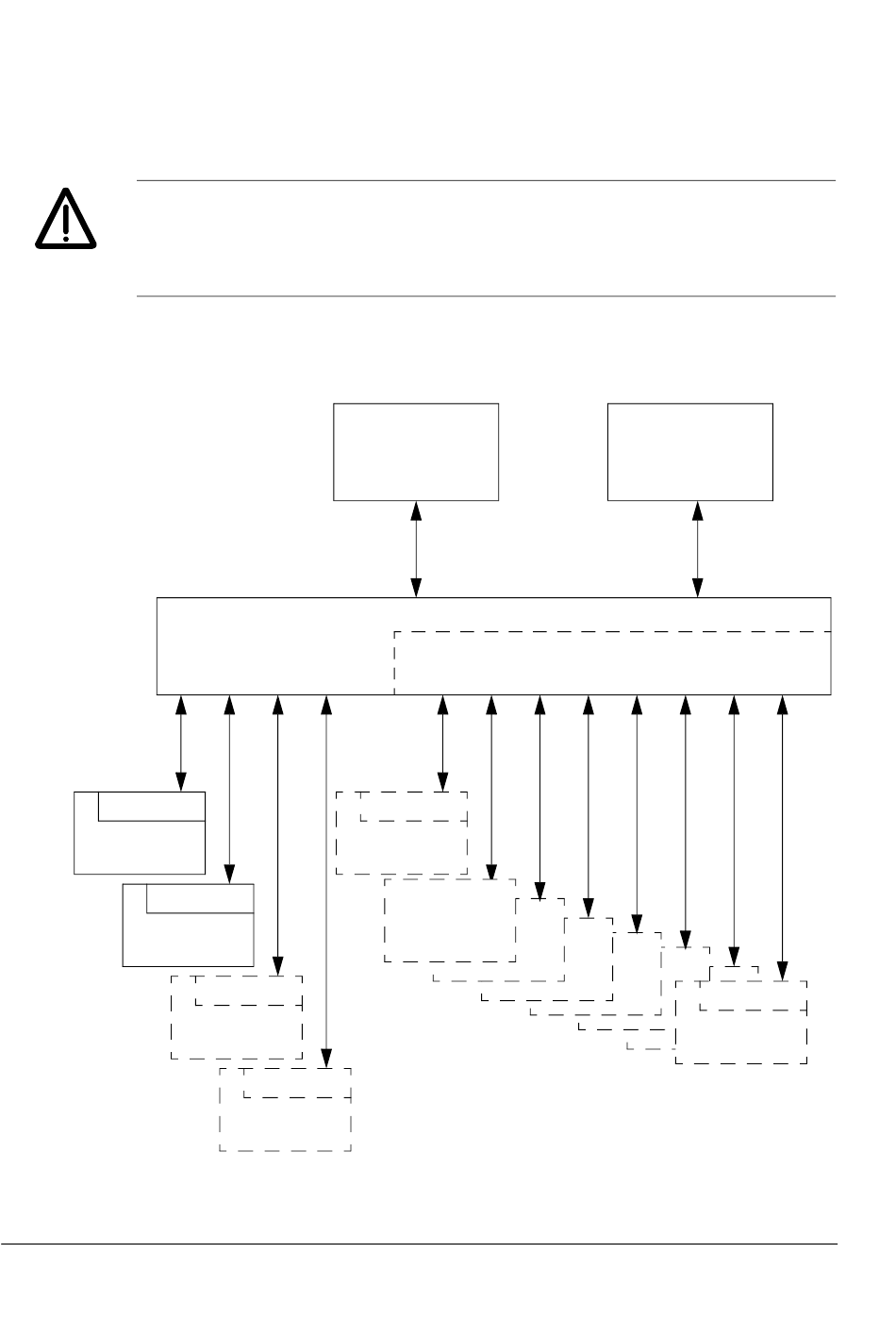

Fibre optic connections (V1...14, also V21...36 with APBU-44CE)
WARNING! Handle the fibre optic cables with care. When unplugging optic cables,
always grab the connector, not the cable itself. Do not touch the ends of the fibres
with bare hands as the fibres are extremely sensitive to dirt. The minimum allowed
bend radius is 35 mm.
When connecting the fibre optic cables, make sure that receivers (RXD) are
connected to transmitters (TXD). Do not remove the protective rubber plugs from
unisued optical connectors.
APBU-44C(E)
CH1 CH2 CH3 CH4
AINT: V1/V2
Inverter or IGBT
supply module 1
AINT: V1/V2
Inverter or IGBT
supply module 2
Installation
RDCU-xx Drive
Control Unit
Inverter or IGBT
supply module 5
AINT: V1/V2
Inverter or IGBT
supply module 3
AINT: V1/V2
Inverter or IGBT
supply module 4
V57/V68
CNTL 1
(APBU-44CE only)
CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12
AINT: V1/V2
PC for reading
contents of
datalogger
DDCS
AINT: V1/V2
Inverter or IGBT
supply module 12
