Regency LPFS2121 Installation Instructions

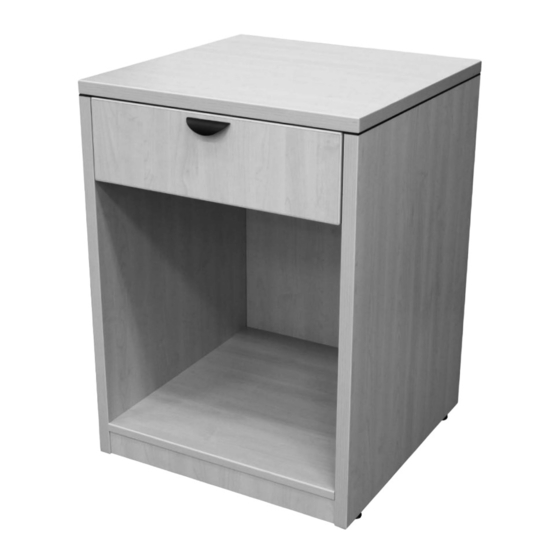

LEGACY FAX/PRINTER CABINET • LPFS2121 • INSTRUCTIONS
Organize your parts and hardware. You will need a Phillips head and flat head screw driver and rubber mallet.

Hardware :

A: Cam Pins(14) • B: Cam Covers(14) • C: Small Screw(6) • D: Medium Screws(8) • E: Large Screws(4)
F: Handle Screws(2) • G: Drawer Handle(1)
A
B

Parts :

H: Runner • I: Base • J: Back Panel • K: Sides(2) • L: Suspension Slide(2) • M: Top • N: Drawer Front • O: Drawer Box
H I
STEP 1 : Attach Runner(H) to Base(I) by inserting
dowels into coordinating holes.
H
IMPORTANT NOTICE:
Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten all screws/bolts until completely assembled.
Keep all hardware parts out of reach of children.
C
D
E E
J K
I
Any problems or questions call Regency Office Furniture at 1-866-816-9822
F G
L M
STEP 2 : Insert 1 Cam Pin(A) into Back Panel(J).
Figure 1: To open
Cam, point arrow toward
Cam Pin hole. To lock
Cam, turn clockwise.
N
O
J
A
