Regency LEGACY STORAGE CABINET LSC3535 Instructions

LEGACY STORAGE CABINET • LSC3535 • INSTRUCTIONS
Organize your parts and hardware. You will need a Phillips head and flat head screw driver and rubber mallet.

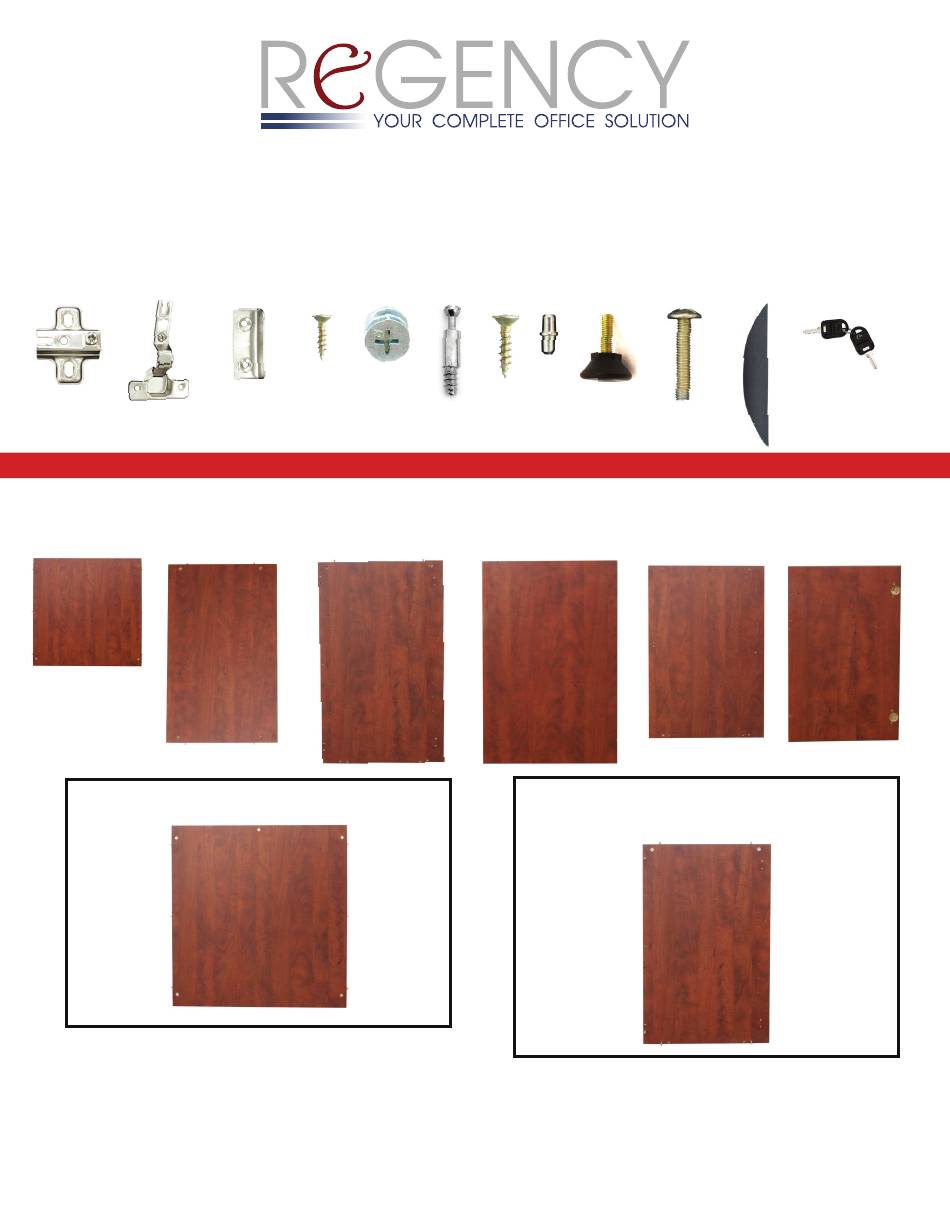

Hardware :

A: Mounting Bracket(4) • B: Hinge(4) • C: Lock Lip • D: Door Tooth(2) E: Small Screw(2) F: Cam Locks(13)
G: Cam Pins(13) • H: Medium Screws(16) • I: Shelf Pins(8) • J: Feet(4) K: Large Screws(4) •
L: Door Handles(2) • M: Keys(2)
A B

Parts :

N: Back • O: Bottom • P: Sides(2)• Q: Shelf R: Top• S: Door(2)
N

STEP 1 : Place 5 cam locks(F) in back(N)

F
F

IMPORTANT NOTICE:

● Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
● Check to be sure that you have all parts and hardware.
● Remove all wrapping materials, including staples & packing straps before you start to assemble.
● Do not tighten all screws/bolts until completely assembled.
● Keep all hardware parts out of reach of children.
C F
E
P
O
F
F
N
F
Any problems or questions call Regency Office Furniture at 1-866-816-9822
H J
G I
Q
F
STEP 2 :Place 4 cam pins(G) and 2 cam
locks(F) into each side(P).
K
L
R
F F
G
P
G
G
G
M
S
