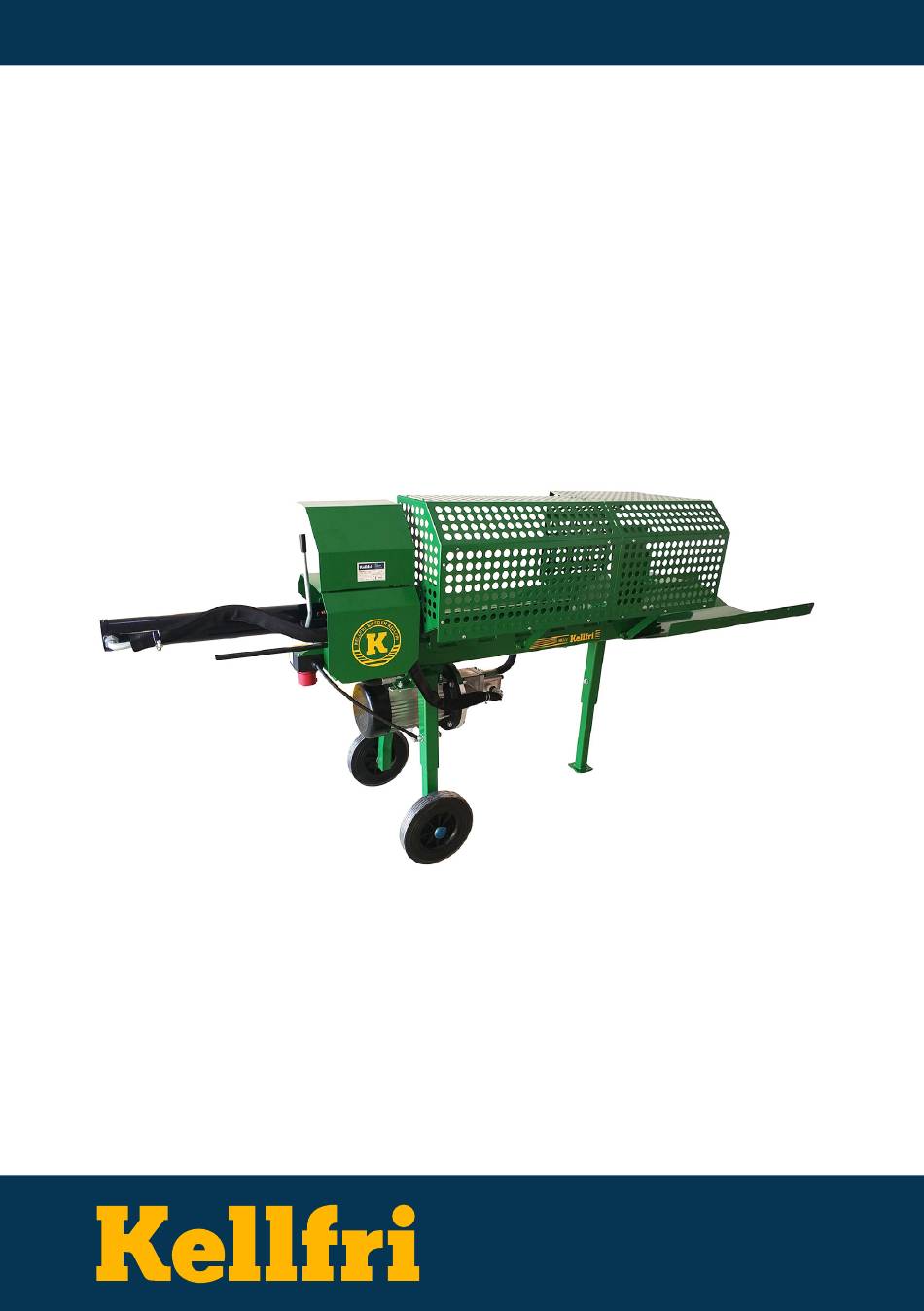

- Page 1 13-HK777 LOG SPLITTER WITH CAGE ELECTRIC-POWERED, 7 TONNES Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine's operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri's equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511 242 50 The safety instructions can also be downloaded from Kellfri's website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use them in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: Firewood Machines
FIREWOOD MACHINES • Read the instruction manual carefully and familiarise yourself with the machine before starting to use it. • Electric-operated machines may only be connected to an earthed socket with an appropriate fuse. The socket must be installed by a qualified electrician. •... -
Page 9: Machines/Equipment Connected To Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. •... -
Page 10: Warning Labels
WARNING LABELS Make sure warning labels are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning label. If a part with a label is replaced, or the label becomes worn or in any other way unusable, order a new set of labels. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 11: Chemicals
We recommend degreasing to achieve thorough cleaning and to remove all residues of old lubricant, which may contain destructive particles. The degreasing agent we supply at Kellfri is OKQ8, in a 20-litre can. Table of Contents... -
Page 12: Measures Before Use
STEPS TO TAKE BEFORE USE • The log splitter is supplied with a five-pole CEE 16 A connection glove. By law, the glove must be connected to a corresponding socket, which must be fitted by a qualified electrician. • The log splitter is test-operated before delivery, and is supplied in a package with filled SHS 32 hydraulic oil, engine protection and a fitted connection glove. -
Page 13: Assembly
ASSEMBLY INSTRUCTIONS Stop screw 1. This stop screw is used to regulate the stroke of the hydraulic cylinder. Mounting of cylinder 2. Mounting of hydraulic cylinder with three bolts. 3. It is very important to mount the stroke regulation as illustrated, in order to avoid damage to the splitter, engine and engine protection. -
Page 14: Asembly Of Cage
MOUNTING CAGE Time required for mounting: approx. 45 min Tools: screwdriver, 10 mm spanner, 13 mm spanner, hex key no. 5. Remember not to over-tighten the bolts. Tighten all bolts when mounting is completed. 3 pcs 4 pcs 9 pcs 26 pcs 1 pcs Table of Contents... - Page 15 The plate is positioned Mounting uppermost. top side. 4 pcs Mounting bottom side. NOTE: Right and left The third support is mounted under the short plate on the other side. Table of Contents...
- Page 16 The plates are mounted with: Table of Contents...
- Page 17 The plate is mounted with: The plate is mounted with: The cage roof is mounted together with the washer. Table of Contents...
- Page 18 Mounting plate on inside. Mounting plate on outside. Table of Contents...
- Page 19 The cage seen from various angles. When mounting is completed, tighten all bolts. Table of Contents...
-
Page 20: Sevice - Troubleshooting
SERVICE INTERVAL MEASURE • Change after the first 10 hours. Oil change • Thereafter every 50 hours or once • Use hydraulic oil SHS 32 or SHS 46. per year. • The tank is emptied by removing the plug under the tank. Oil quantity - see technical data, page 3 •... - Page 21 The cutter returns slowly to return position. Over time, dirt, sawdust and sap have built up in the groove in which no. 3 pressure plate and no. 24 positioning rod run. Check and clean the groove regularly. • Extend the pressure plate to its end position. •...
-
Page 22: Valve For 35-Hk777
VALVE FOR 35-HK777 1. to Pump 2. to Cylinder - forwards 3. to Cylinder - backwards 4. to Tank 5. Lever holder Replacement of worn-out spring pin: 1. Loosen 2 bolts and remove lever holder (no. 5) 2. Disassemble the valve block. (See illustration below.) 3. -
Page 23: Spare Parts
SPARE PARTS ITEM NO. SPARE PART DESIGNATION R13-HK777.001 Wheels R13-HK777.002 Valve block R13-HK777.003 Pressure plate R13-HK777.004 Hydraulic cylinder HK777 R13-HK1100.001 Hydraulic cylinder HK1100 R13-HK777.005 4-way splitting wedge R13-HK777.006 Hydraulic engine R13-HK777.007 Hydraulic pump R13-HK777.028 Control lever Table of Contents... -
Page 24: Exploded Diagrams And Materials List
Table of Contents... - Page 25 ITEM NO. DESIGNATION QUANTITY Frame Cylinder Pressure plate Valve block 4.16 Lever holder 4.17 Handle 4.18 Control lever 4.19 Axle 4.20 Nut M10 Cross blade Pump housing Cog wheel pump Switch Hydraulic coupling 90 degrees Hydraulic hose - suction Nut M12 M6 x 30 bolt 13.1 Magnet...
- Page 26 Table of Contents...
- Page 27 ITEM NO. DESIGNATION QUANTITY Wheels Positioning rod Bolt M8x20 Protection arch over lever Washer 10 Nut M10 Coupling Sealing washer 22 Return line Hydraulic coupling - straight Top-up pipe - oil pump Return Hydraulic hose Bolt M10 x 65 Lock nut M10 Bolt M12 x 55 Bolt M8 x 16 Bolt M8 x 60...
- Page 28 Table of Contents...
-
Page 29: Notes
NOTES: Table of Contents... - Page 30 NOTES: Table of Contents...
- Page 31 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri's general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied.
-
Page 32: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
