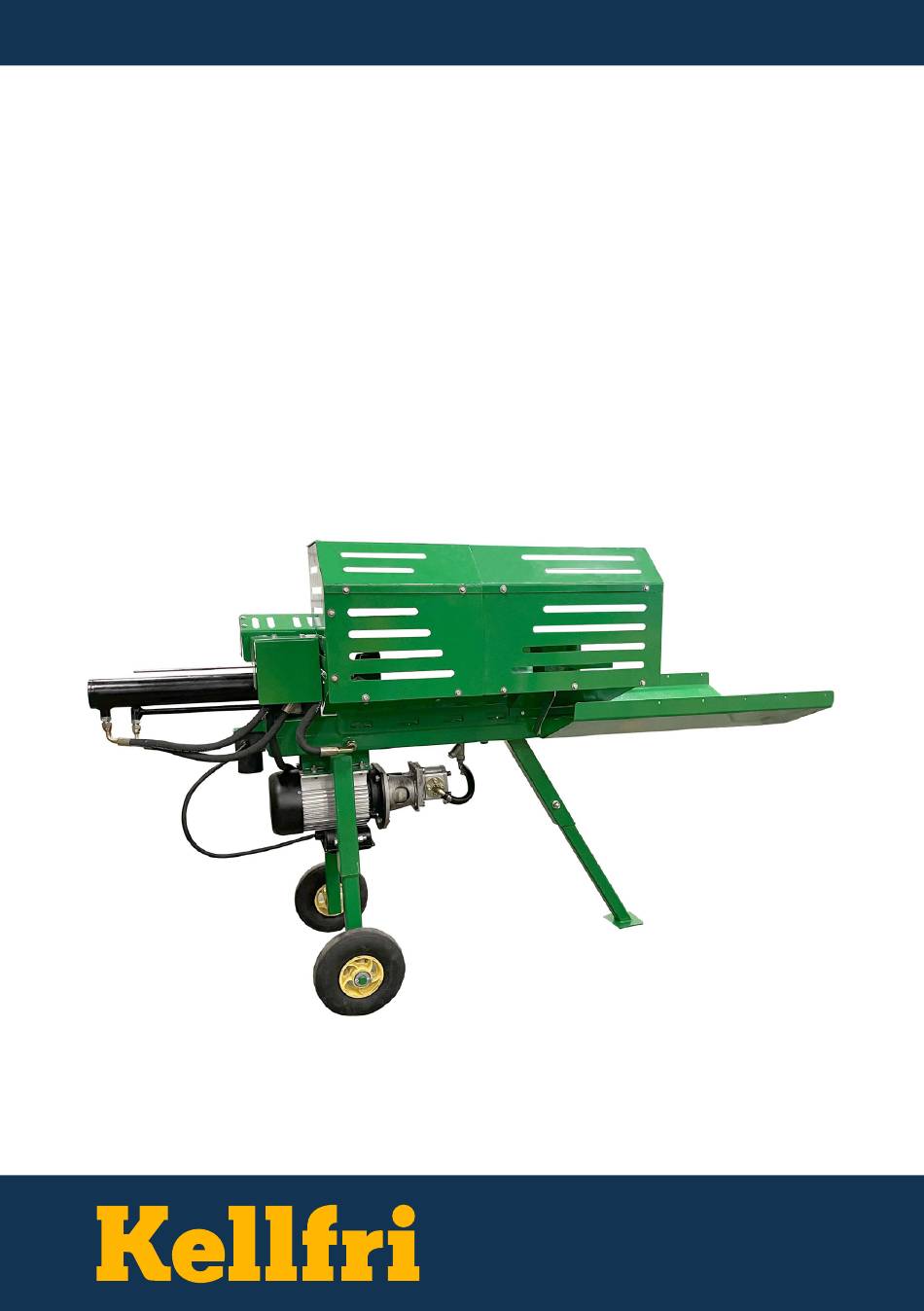

- Page 1 13-HK555 LOG SPLITTER WITH CAGE ELECTRICALLY - OPERATED, 7 TONNES NOTE: Colour of cage may vary. Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
- Page 2 Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual.
-
Page 3: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Storsvängen 2, 532 38 SKARA, Sweden. Tel: +46 511 242 50 The safety instructions can also be downloaded from Kellfri’s website: www.kellfri.co.uk... -
Page 5: Before Use
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. - Page 6 Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise caution when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin.
-
Page 7: After Use
Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. - Page 8 FIREWOOD MACHINES • Read the operating manual carefully and familiarise yourself with the machine before starting to use it. • Electric-operated machines may only be connected to an earthed socket with an appropriate fuse. The socket must be installed by a qualified electrician. •...
- Page 9 MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. •...
-
Page 10: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high- pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. - Page 11 CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating greases First aid measures.
- Page 12 PARTS NOTE: Colour of cage may vary. Washer assembly on cage roof, see page 17. Left and right 2 pcs. M6x10 M6x16 M6x21 M6x21 M8x20 2 pcs 6 pcs. + nut + washer + washer, nut + washer, nut 3 pcs 2 pcs 21 pcs 3 pcs...
- Page 13 ASSEMBLY NOTE: All bolts must first be tightened by hand and retightened after assembly. The machine is heavy! It is therefore recommended that assembly is carried out by two people. A lifting device may be required. Be aware of the risk of crushing! Assemble stabilisers and legs with castors.
- Page 14 M6x21 + washer, nut Select the plate with 6 holes. 2 holes 3 holes 2 holes M6x10 M6x21 3 holes + washer, nut Longer plate. NOTE: Left and right. The bent edge should point downwards. Table of Contents...
- Page 15 M6x21 + washer, nut M6x21 M6x10 M6x21 + washer, nut M6x10 Table of Contents...
- Page 16 M6x21 M6x21 + washer, nut + washer, nut M6x16 + nut The cage roof is mounted together with the washer. You choose whether you want to mount the washer on the top or the bottom. Table of Contents...
- Page 17 Drainage plug. Place a suitable container un- derneath to collect the oil. Remove the plug. When the oil is drained, refit the plug. Hydraulic oil. Fill with oil, max. approx. 8 litres. Fill with new oil before using the log splitter. Important to bear in mind: Any liquids should be collected and transported to a recycling station designated by your local authority.
- Page 18 Power switch. ON/OFF Emergency shutdown. Operating handle. Pull both handles to enable splitting. - Release 1 handle = log splitter stops - Release 2 handles = splitter returns Placement of power cable to power switch. Table of Contents...
- Page 19 The log splitter seen from various angles. When the cage assembly is complete, retighten all bolts around the whole log splitter. RECYCLING When it is scrapped, the equipment/product must be dismantled and transported to a recycling station designated by your local authority. Any liquids should be collected and transported to a recycling station designated by your local authority.
- Page 20 Clean the grooves on both sides. The splitter returns slowly to the return position. Over time, dirt, chips and sawdust accumulate in the grooves. • Extend the pressure plate to its end position. • Switch off the power. • Using a wide-bladed screwdriver, tap out the material that is stuck in the groove. •...
- Page 21 ADJUSTABLE STROKE LENGTH The splitting length can be infinitely adjusted between 0 - 500 mm. The desired stroke length is set using the adjustable stop lug. Stop lug 0 - 500 mm Pressure plate Do as follows: • Move the pressure plate to the desired position. (Use both control levers.) •...
- Page 22 Version 1.1 Table of Contents...
- Page 23 ITEM SPARE PART NO. DESIGNATION ITEM TYPE QUANTITY R13-HK555.001 Frame R13-HK555.002 Cylinder 73/40-430 R13-HK555.003 Pressure plate R13-HK555.004 4-way splitting wedge R13-HK555.005 R13-HK555.006 Length adjustment R13-HK555.007 Washer, length adjustment R13-HK555.008 Stop, length adjustment stop R13-HK555.009 Stabiliser R13-HK555.010 Wheel carrier R13-HK777.001 Wheel 245 mm for log splitter - 25 mm R13-HK555.011 Dip stick R13-HK555.012...
- Page 24 Version 1.1 Table of Contents...
- Page 25 ITEM SPARE PART NO. DESIGNATION ITEM TYPE QUANTITY R13-HK555.030 Side cover, control levers R13-HK555.031 Inclined bar A-DIV R13-HK555.032 R13-HK555.033 Cage bottom R13-HK555.034 Start/Stop A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV A-DIV SPARE PART NO.
- Page 26 SERVICE INTERVAL REMEDY • Change after the first 10 hours. Oil change • Thereafter every 50 hours or once • Use hydraulic oil SHS 32 or SHS 46. per year. • The tank is emptied by removing the plug under the tank.
- Page 27 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied.
-
Page 28: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
