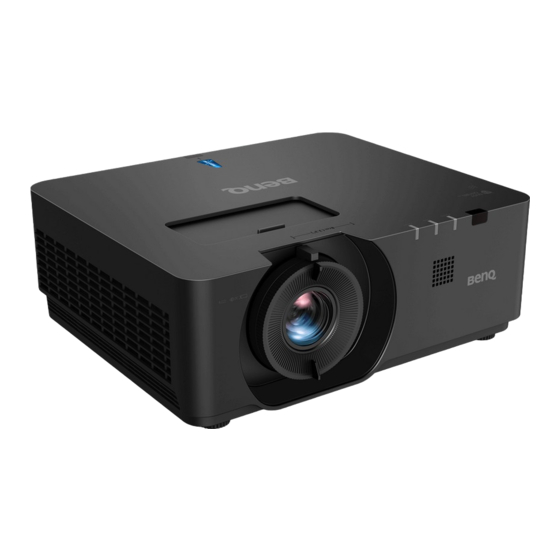

LU960
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ RS232

Summary of Contents for BenQ RS232

  • Page 1 LU960 Projector RS232 Command Control Installation Guide...

  • Page 2: Table Of Contents

    Introduction ............................. 3 Wire arrangement ................................ 3 RS232 pin assignment ..............................3 Connections and communication settings ..................4 RS232 serial port with a crossover cable ....................... 4 Settings .................................. 4 RS232 via LAN ................................6 Settings .................................. 6 RS232 via HDBaseT ..............................6 Settings ..................................

  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.

  • Page 4: Connections And Communication Settings

    On-screen images in this document are for reference only. The screens may vary depending on your Operating System, I/O ports used for connection, and the specifications of the connected projector. Determine the COM Port name used for the RS232 communications in Device Manager.
  • Page 5 Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected. Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check...

  • Page 6: Rs232 Via Lan

    PC or laptop D-Sub 9 pin LAN cable Settings Determine the COM Port name used for the RS232 communications in Device Manager. Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
  • Page 7 Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None...

  • Page 8: Command Table

    • If a command with correct format cannot be executed under certain condition, it will echo Block item. • If RS232 control is performed via LAN, a command works whether it starts and ends with <CR>. All the commands and behaviors are identical with the control through a serial port.
  • Page 9 Read Mute Status <CR>*mute=?#<CR> Write Volume + <CR>*vol=+#<CR> Write Volume - <CR>*vol=-#<CR> Volume level for Write <CR>*vol=value#<CR> customer Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR> Audio pass Through Write <CR>*audiosour=off#<CR>...
  • Page 10 Write Infographic <CR>*appmod=infographic#<CR> Yes Write User1 <CR>*appmod=user1#<CR> Write User2 <CR>*appmod=user2#<CR> Write User3 <CR>*appmod=user3#<CR> Write ISF Day <CR>*appmod=isfday#<CR> Write ISF Night <CR>*appmod=isfnight#<CR> Write <CR>*appmod=threed#<CR> Write Sport <CR>*appmod=sport#<CR> Write HDR10 <CR>*appmod=hdr10<CR> Write <CR>*appmod=hlg<CR> Write Video <CR>*appmod=video<CR> Read Picture Mode <CR>*appmod=?#<CR> Write Contrast + <CR>*con=+#<CR>...
  • Page 11 Temperature-Normal Color Write <CR>*ct=cool#<CR> Temperature-Cool Color Write <CR>*ct=cooler#<CR> Temperature-Cooler Color Write Temperature-lamp <CR>*ct=native#<CR> native Color Temperature Read <CR>*ct=?#<CR> Status Write Aspect 4:3 <CR>*asp=4:3#<CR> Write Aspect 16:6 <CR>*asp=16:6#<CR> Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect 2.35:1 <CR>*asp=2.35#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR> Write Aspect Auto <CR>*asp=AUTO#<CR>...
  • Page 12 value Overscan Adjustment Write <CR>*overscan=+#<CR> Overscan Adjustment Write <CR>*overscan=-#<CR> Overscan Adjustment Read <CR>*overscan=?#<CR> value 4 Corners Top-Left-X Write <CR>*cornerfittlx=-#<CR> Decrease 4 Corners Top-Left-X Write <CR>*cornerfittlx=+#<CR> Increase 4 Corners Top-Left-X Read <CR>*cornerfittlx=?#<CR> Status 4 Corners Top-Left-Y Write <CR>*cornerfittly=-#<CR> Decrease 4 Corners Top-Left-Y Write <CR>*cornerfittly=+#<CR>...
  • Page 13 Bottom-Left-X Status 4 Corners Write Bottom-Left-Y <CR>*cornerfitbly=-#<CR> Decrease 4 Corners Write Bottom-Left-Y <CR>*cornerfitbly=+#<CR> Increase 4 Corners Read <CR>*cornerfitbly=?#<CR> Bottom-Left-Y Status 4 Corners Write Bottom-Right-X <CR>*cornerfitbrx=-#<CR> Decrease 4 Corners Write Bottom-Right-X <CR>*cornerfitbrx=+#<CR> Increase 4 Corners Read Bottom-Right-X <CR>*cornerfitbrx=?#<CR> Status 4 Corners Write Bottom-Right-Y <CR>*cornerfitbry=-#<CR>...
  • Page 14 Write <CR>*hdr=hlg#<CR> Write HDR status <CR>*hdr=?#<CR> Reset current picture Write <CR>*rstcurpicsetting#<CR> settings Reset all picture Write <CR>*rstallpicsetting#<CR> settings Projector Write <CR>*pp=FT#<CR> Position-Front Table Projector Write <CR>*pp=RE#<CR> Position-Rear Table Projector Write <CR>*pp=RC#<CR> Position-Rear Ceiling Projector Write <CR>*pp=FC#<CR> Position-Front Ceiling Projector Position Read <CR>*pp=?#<CR>...
  • Page 15 On-Status Write Signal Power On-on <CR>*autopower=on#<CR> Write Signal Power On-off <CR>*autopower=off#<CR> Signal Power Read <CR>*autopower=?#<CR> On-Status Standby Write <CR>*standbynet=on#<CR> Settings-Network on Standby Write <CR>*standbynet=off#<CR> Settings-Network off Standby Read Settings-Network <CR>*standbynet=?#<CR> Status Standby Write Settings-Microphone <CR>*standbymic=on#<CR> Standby Write Settings-Microphone <CR>*standbymic=off#<CR> Standby Read Settings-Microphone <CR>*standbymic=?#<CR>...
  • Page 16 Write 115200 <CR>*baud=115200#<CR> Read Current Baud Rate <CR>*baud=?#<CR> Read Lamp Hour <CR>*ltim=?#<CR> Read Lamp2 Hour <CR>*ltim2=?#<CR> Write Normal mode <CR>*lampm=lnor#<CR> Write Eco mode <CR>*lampm=eco#<CR> Write SmartEco mode <CR>*lampm=seco#<CR> Write SmartEco mode 2 <CR>*lampm= seco2#<CR> Write SmartEco mode 3 <CR>*lampm= seco3#<CR> Write Dimming mode <CR>*lampm=dimming#<CR>...
  • Page 17 Read Blank Status <CR>*blank=?#<CR> Write Freeze On <CR>*freeze=on#<CR> Write Freeze Off <CR>*freeze=off#<CR> Read Freeze Status <CR>*freeze=?#<CR> Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR> Read Menu Status <CR>*menu=?#<CR> Write <CR>*up#<CR> Write Down <CR>*down#<CR> Write Right <CR>*right#<CR> Write Left <CR>*left#<CR> Write Enter <CR>*enter#<CR>...
  • Page 18 Receiver-top+front Remote Write <CR>*rr=tr#<CR> Receiver-top+rear Remote Receiver Read <CR>*rr=?#<CR> Status Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR> Read Instant On Status <CR>*ins=?#<CR> Write Lamp Saver Mode-on <CR>*lpsaver=on#<CR> Write Lamp Saver Mode-off <CR>*lpsaver=off#<CR> Lamp Saver Mode Read <CR>*lpsaver=?#<CR> Status Projection Log In Write <CR>*prjlogincode=on#<CR>...
  • Page 19 Write Load Lens memory 5 <CR>*lensload=m5#<CR> Write Load Lens memory 6 <CR>*lensload=m6#<CR> Write Load Lens memory 7 <CR>*lensload=m7#<CR> Write Load Lens memory 8 <CR>*lensload=m8#<CR> Write Load Lens memory 9 <CR>*lensload=m9#<CR> Write Load Lens memory 10 <CR>*lensload=m10#<CR> Read Lens memory Read <CR>*lensload=?#<CR>...
  • Page 20 Write Green Gain - <CR>*GGain=-#<CR> Write Set Green Gain value <CR>*GGain=value#<CR> Read Get Green Gain value <CR>*GGain=?#<CR> Write Blue Gain + <CR>*BGain=+#<CR> Write Blue Gain - <CR>*BGain=-#<CR> Write Set Blue Gain value <CR>*BGain=value#<CR> Read Get Blue Gain value <CR>*BGain=?#<CR> Write Red Offset + <CR>*ROffset=+#<CR>...
  • Page 21 Read Get Saturation value <CR>*saturation=?#<CR> Write Gain + <CR>*gain=+#<CR> Write Gain - <CR>*gain=-#<CR> Write Set Gain value <CR>*gain=value#<CR> Read Get Gain value <CR>*gain=?#<CR> Write Color Gamut Auto <CR>*cgamut=auto#<CR> Write Color Gamut BT.709 <CR>*cgamut=bt.709#<CR> Write Color Gamut BT.2020 <CR>*cgamut=bt.2020#<CR> Write Color Gamut DCI-P3 <CR>*cgamut=dci-p3#<CR> Read Color Gamut Value <CR>*cgamut=?#<CR>...
