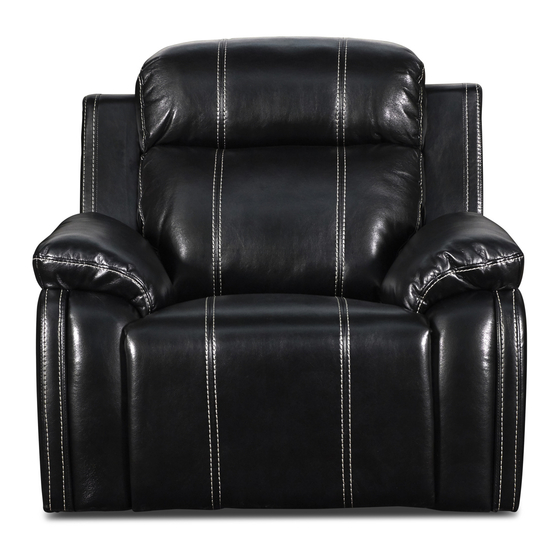

New Classic Furniture U3969-14p1-eby Assembly Instruction

Thank you for purchasing this quality product. Be sure to check all

packing materials carefully for small parts, which may have come loose

list and/or hardware list shown below. It is recommended to have two

people during assembling and to remove the backs and base of the furniture

out from the box.

Please follow the drawings below to assemble the item

Step 1: Cut the white zip ties with scissors.

Step 3: Please align and insert the LSF wing

and RSF wing onto the back rest.Please make

sure the wings are inserted all the way and

secured into position.

LSF

Assembly Instruction

RSF

All images shown are for illustration purpose only.

Actual product may vary due to product enhancement.

Step 2:Please align and insert the metal

bracket (F) on the back rest onto the metal

bracket (M) of the seat

metal brackets (F) and (M) are inserted all

the way and secured into position.

.Please

make sure the

Table of Contents

Need help?

Do you have a question about the U3969-14p1-eby and is the answer not in the manual?

Page 1 Assembly Instruction Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose list and/or hardware list shown below. It is recommended to have two people during assembling and to remove the backs and base of the furniture out from the box.
Page 2 Power Assembly Instruction Item Quantity Description Picture Transformer 1 PC Cable 1 PC All images shown are for illustration purpose only. Actual product may vary due to product enhancement.
