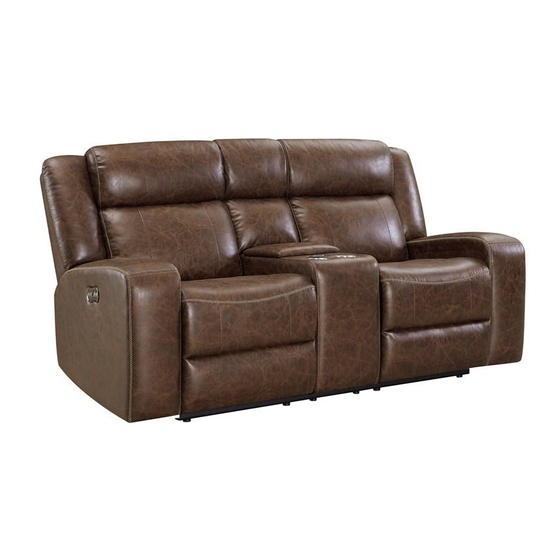

New Classic Furniture U3969-25-eby Assembly Instruction

Thank you for purchasing this quality product. Be sure to check all
packing materials carefully for small parts, which may have come loose
list and/or hardware list shown below. It is recommended to have two
people during assembling and to remove the backs and base of the furniture
out from the box.
Please follow the drawings below to assemble the item
Step 1: There is a zipper at the bottom of
the console, please open the zipper to find
the console back and take it out for assembly.
Then open the console storage to find the
hardware to assemble the console back.
Step 3: Please align and insert the LSF wing
and RSF wing onto the back rest.Please make
sure the wings are inserted all the way and
secured into position.
LSF
Assembly Instruction
x2
Step 2:Please align and insert the metal
bracket (F) on the back rest onto the metal
bracket (M) of the seat
metal brackets (F) and (M) are inserted all
the way and secured into position.
F
M
Please unzip the back of the console
base and insert the
through the pre-drilled holes and align
it through the holes on the bottom of
the console back. Tighten each bolt by
turning it counter-clockwise until the
console back is secured in place.
RSF
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
.Please
make sure the
bolts upward
