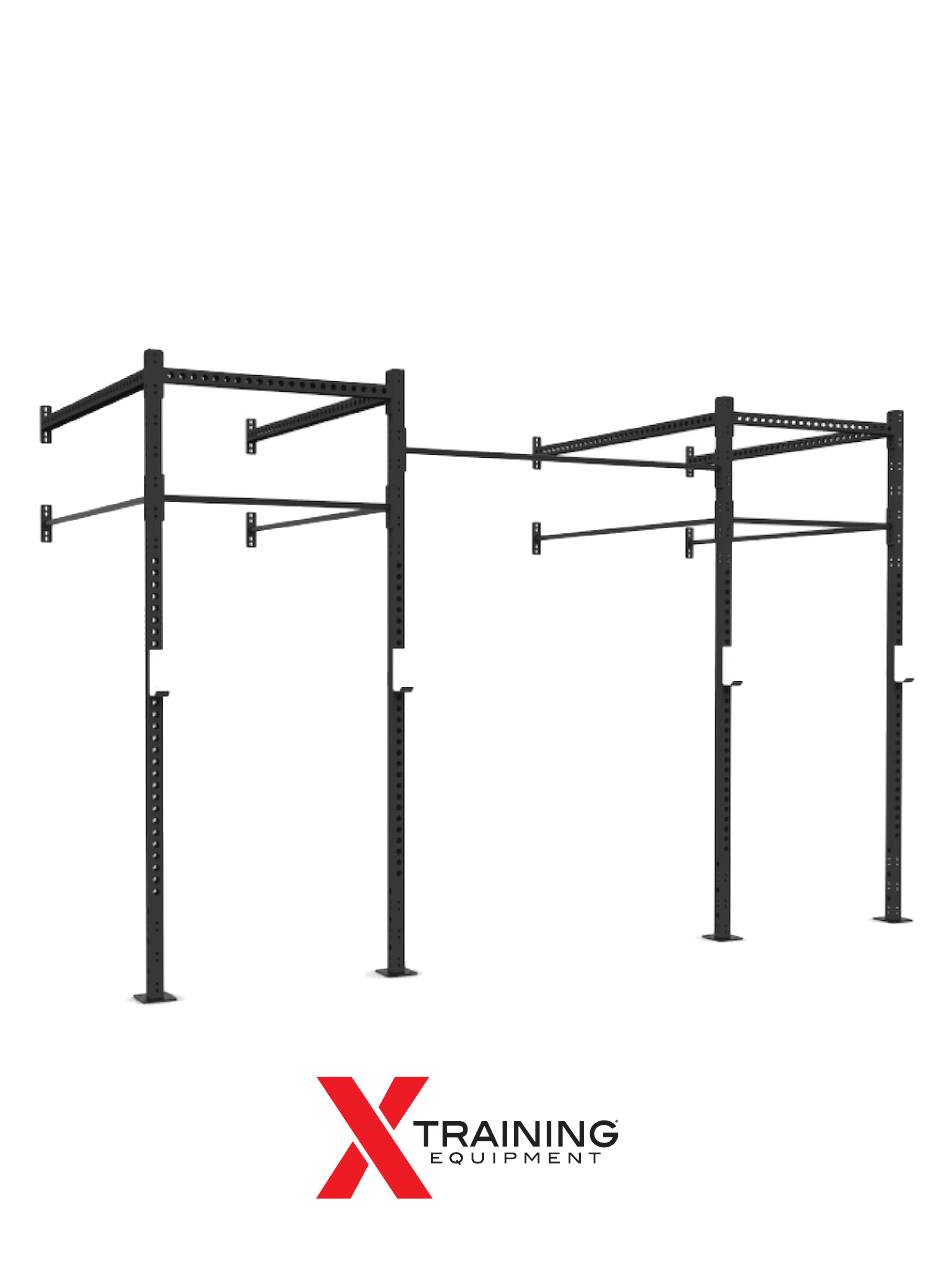

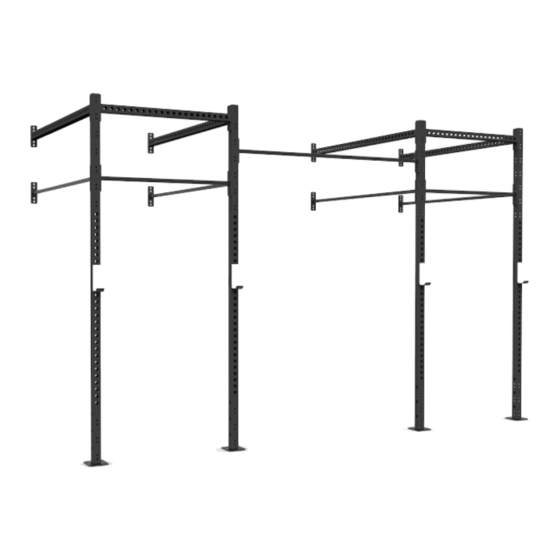

- Page 1 WALL-MOUNTED PULL-UP RIG ASSEMBLY GUIDE X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 2 OVERVIEW Congratulations on your new Wall-Mounted Rig! The X Training Equipment® Pull-up Rig is the centerpiece to your gym, we are proud to offer a number of freestanding and wall-mounted rig configura- tions to fit your needs. Our rigs are designed to be modular and can be uprgraded or re-configured as your business expands.
-
Page 3: What You'll Need
Concrete Drill Bit Wood Stringer + Mounting Hardware PARTS GUIDE 4ft Pull-up Bar J-Cup 4ft Crossbeam M12 Bolt 9ft (108”) M12 Washer Upright Beam 6ft Pull-up Bar M12 Nuts 14mm 6ft Crossbeam Concrete Anchors X Training Equipment • support@xtraining.com • (877) 348-7464... -
Page 4: What's Included
WHAT’S INCLUDED The list below displays the quantity of each part included based on the length of your pull-up rig. Please review your inventory of parts upon receipt and let us know if you have any discrepencies. 10FT 14FT 20FT 24FT 30FT 34FT... - Page 5 ASSEMBLIES The diagram below shows how many how many of each assmebly type is needed based on the rig length. ASSEMBLIES NEEDED 10FT 14FT 20FT 24FT 30FT 34FT 40FT 44FT X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 6 J-Cup holes facing out J-Cup holes facing out Front/Back J-Cup Spacing Side Spacing 6ft Pull-up Bar 4ft Pull-up Bar M12 Washer 9ft (108”) M12 Nuts Upright Beam 6ft Crossbeam 4ft Crossbeam M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 7 With your partner, carefully tilt the assmebly up and move to desired loca- tion and mark the bolt locations on the wall. Tilt the assmbly back down to mount your stringer. Mark bolt locations X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 8 Once you have mounted your stringer, tilt the assembly back up and bolt it into desired location. If you are mounting into concrete walls, you can simply use concrete anchors without a wood stringer. X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 9 Upright Beams, one 4ft Pull-up Bar, one 4ft Crossbeam, two 6ft Crossbeams, and three 6ft Pull-up Bars. 6ft Pull-up Bar 4ft Pull-up Bar M12 Washer 9ft (108”) M12 Nuts Upright Beam 6ft Crossbeam 4ft Crossbeam M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 10 6ft Pull-up Bar. This step is not needed if your rig ends with a Squat Station(4ft section). Example: 20FT 4ft Pull-up Bar M12 Washer 6ft Pull-up Bar 9ft (108”) M12 Nuts Upright Beam 4ft Crossbeam M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 11 Tilt it back down to mount your stringers(if applicable). Then tilt the assmebly back up and secure it to the rig and wall. Repeat this step for each Squat Station. Refer to ‘Assemblies’ page for reference. X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 12 1 2 3 4 STEP SEVEN To fully secure the rig, bolt it to the floor using the provided Concrete Anchors. This step will vary depending on your structure. Contact a qualified contractor for additional help. 14mm Concrete Anchors Again Faster Equipment • service@againfaster.com • (877) 763-8775...
- Page 13 COMPLETE Congrats, your Pull-up Rig is now complete! It is important to check your bolts are securly tightened before every use. X Training Equipment • support@xtraining.com • (877) 348-7464...
