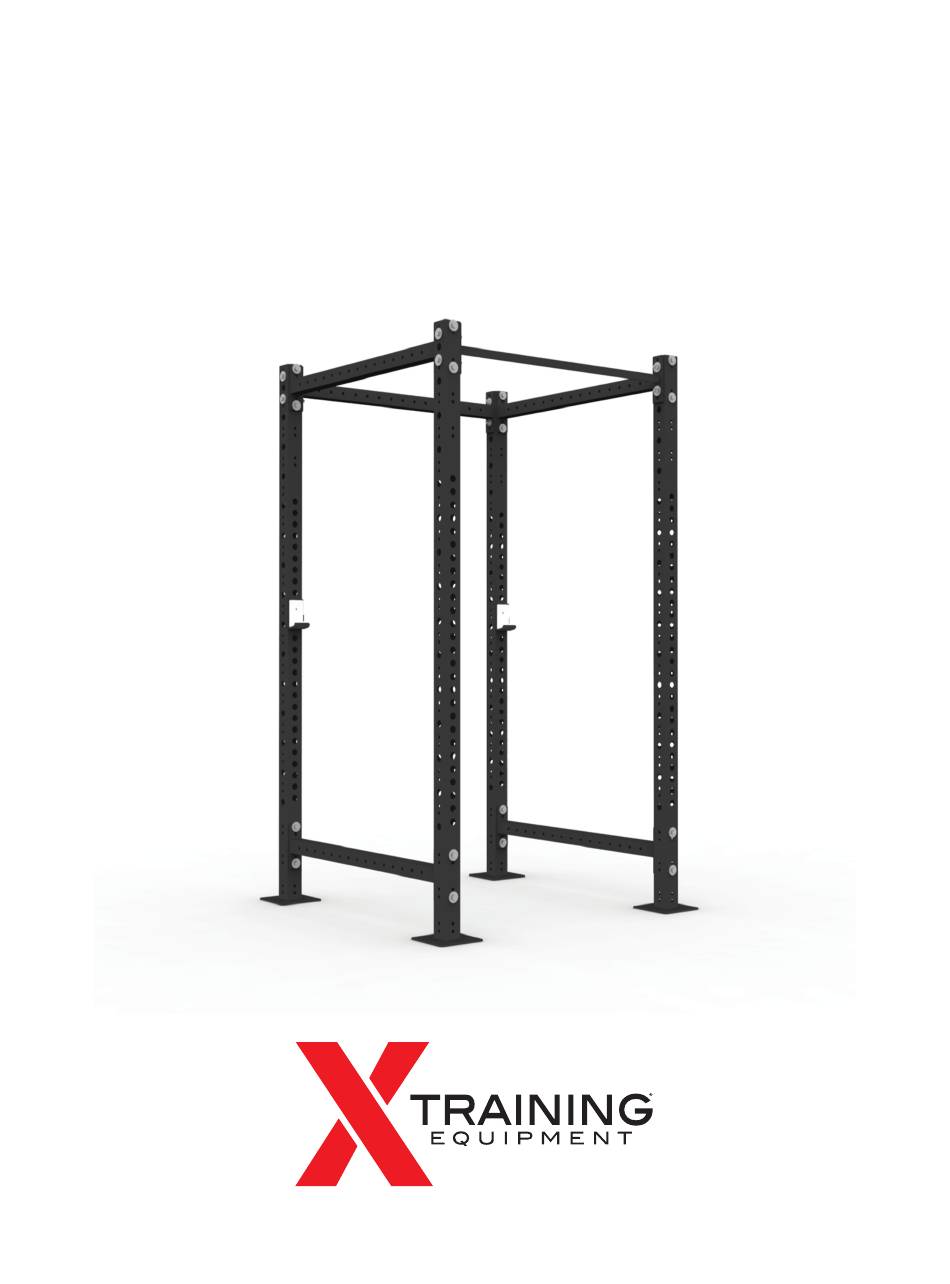

- Page 1 4X4 POWER RACK ASSEMBLY GUIDE X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 2 OVERVIEW Congratulations on your new 4x4 Power Rack! The 4x4 Elite Power Rack is a heavy-duty squat stand with pull-up bar ready for any WOD you can throw at it. With our modular design, this rig can be added onto or extended as your gym grows. With a number...
-
Page 3: What You'll Need
J-Cup 4ft Pull-up Bar 110mm M12 Bolt 8ft (93”) Upright Beam M12 Washer 4ft Crossbeam M12 Nuts Note: Some configurations will come with 2x Pull-up Bars and 4x Crossbeams 14mm Concrete Anchors X Training Equipment • support@xtraining.com • (877) 348-7464... - Page 4 Be sure the Upright Beams are facing the same direction with the closer J-Cup hole spacing facing outward. J-Cup holes facing out J-Cup holes facing out 4ft Crossbeam M12 Washer 8ft (93”) Upright Beam M12 Nuts 110mm M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 5 4ft Crossbeams. Again, be sure the J-Cup hole spacing is facing outward. J-Cup holes facing out J-Cup holes facing out 4ft Crossbeam M12 Washer 8ft (93”) Upright Beam M12 Nuts M12 Nuts 110mm M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 6 Tilt up each side so you can easily assemble step three 4ft Pull-up Bar M12 Washer M12 Nuts 4ft Crossbeam 110mm M12 Bolt Note: Some configurations will simply use 2x Pull-up Bars on this step X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 7 1 2 3 STEP FOUR With your partner, carefully tilt the assembled 4x4 Power Rack upright and then move into desired location in your gym. X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 8 To prevent this rig from tipping over, secure it to the floor using the provided Concrete Anchors. This step will vary depending on your structure. Contact a qualified contractor for additional help. 14mm Concrete Anchors X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 9 COMPLETE Congrats, your Power Rack is now complete! It is important to check your bolts are securly tightened before every use. X Training Equipment • support@xtraining.com • (877) 348-7464...
