- Page 1 X-2 SQUAT STAND ASSEMBLY GUIDE X Training Equipment • support@xtraining.com • (877) 348-7464...

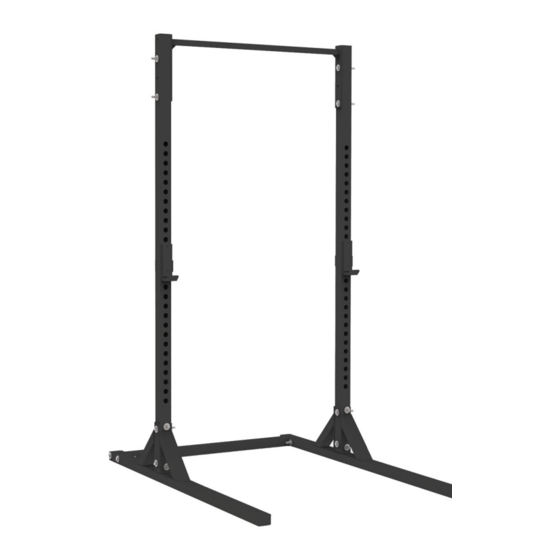

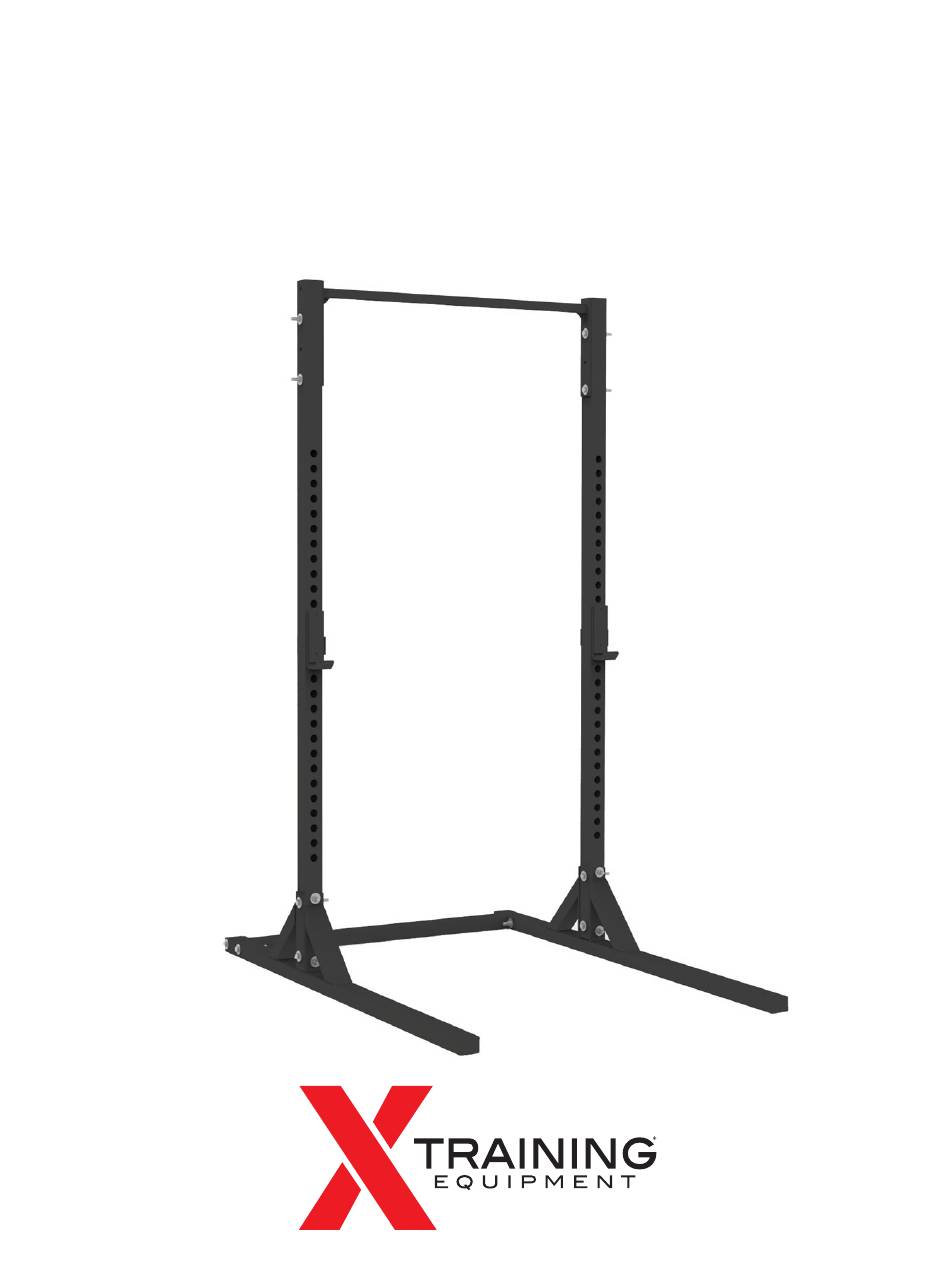

- Page 2 OVERVIEW Congratulations on your new X-2 Squat Stand with Pull-up Bar! Rated for up to 1,000 lbs, this squat stand is incredibly sturdy and great for any type of lifter. The pull-up bar attachment extends X-2 Squat Rack's use beyond a simple bench press and squat station. This stand is a popular option for those who do not want to do any floor or wall-mounting,...
-
Page 3: What You'll Need
WHAT YOU’LL NEED 19mm 19mm Ratchet Wrench WHAT’S INCLUDED Left Base J-Cup Right Base 110mm M12 Bolt Pull-up Bar Upright Beam M12 Washer M12 Nuts Crossbeam X Training Equipment • support@xtraining.com • (877) 348-7464... - Page 4 The Left and Right Bases can be distinguished by the opening for the Upright Beam that faces inward. Upright Bracket facing inward Upright Bracket facing inward M12 Washer Right Base Left Base M12 Nuts Crossbeam 110mm M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 5 STEP TWO Bolt the Upright Beams into each Base making sure the J-Cup holes are facing out as shown below. J-Cup holes facing out M12 Washer M12 Nuts Upright Beam 110mm M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 6 STEP THREE Bolt the Pull-Up Bar to the Upright Beams at desired height. 87” 91” 95” 99” M12 Washer Pull-up Bar M12 Nuts 110mm M12 Bolt X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 7 1 2 3 STEP FOUR Place your J-Cups at desired height. J-Cup X Training Equipment • support@xtraining.com • (877) 348-7464...
- Page 8 COMPLETE Congrats, your X-2 Squat Stand is now complete! It is important to check your bolts are securly tightened before every use. X Training Equipment • support@xtraining.com • (877) 348-7464...
