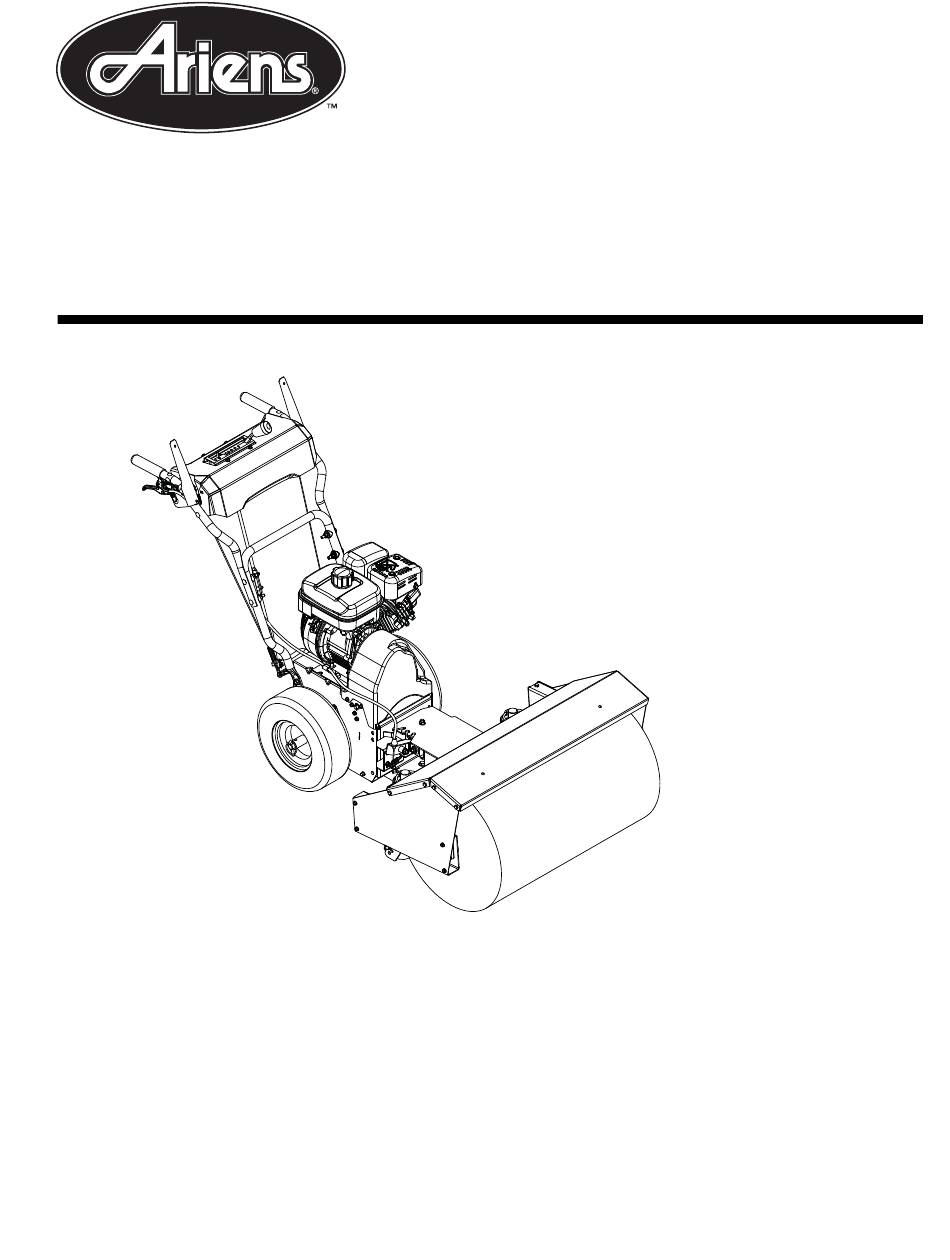

All-Season Power Brush 28
Parts Manual
Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.
Il est possible d'utiliser de l'essence contenant jusqu'à 10% d'éthanol (E10) ou 10% de MTBE (éther méthyl-tertiobutylique) sur cette
machine.
L'utilisation d'une essence contenant plus de 10% d'éthanol (E10) ou de 10% de MTBE annulent la garantie
En esta máquina puede utilizarse gasolina con hasta un 10% de etanol (E10) o hasta un 10% de MTBE (éter de metil butil terciario).
El uso de cualquier otro tipo de gasolina con un porcentaje superior al 10% de etanol (E10) o al 10% de MTBE invalidará la garantía
del producto.
Models
921025 – Power Brush 28
(Serial Number 035000 and up)
921313 – Power Brush 28
(Serial Number 035000 and up)
04374300 10/11
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All-Season Power Brush 28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ariens All-Season Power Brush 28

Summary of Contents for Ariens All-Season Power Brush 28

  • Page 1 All-Season Power Brush 28 Parts Manual Models 921025 – Power Brush 28 (Serial Number 035000 and up) 921313 – Power Brush 28 (Serial Number 035000 and up) Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is acceptable for use in this machine.
  • Page 2 RODUCT EGISTRATION Before you operate your unit, carefully and completely The Ariens dealer must register the product at the time of read manuals supplied with the unit. The contents will purchase. Registering the product will help the company provide you with an understanding of safety instructions process warranty claims or contact you with the latest and controls during normal operation and maintenance.

  • Page 3: Table Of Contents

    ODELS ABLE ONTENTS Model 921025 28” All-Season Power Brush ECALS 6 Hp Subaru EX17 Engine Decals ........4 Serial No.

  • Page 4: Ecals

    ECALS Model 921025, 313 08000736 07800330 07800331 Item Part No. Qty. Description 08000733 Decal, Power Brush 28 - Ariens 07800330 Decal, Danger - Power Brush 08000513 Decal, Ariens Heritage 07800331 Decal, PTO Warning 08000736 Decal, Control...
  • Page 5 OTES...

  • Page 6: Ngine And Rive

    NGINE AND RIVE Model 921025, 313...
  • Page 7 NGINE AND RIVE Model 921025, 313 Item Part No. Qty. Description 08200611 Engine, Subaru EX17 All Season 120V (921025) 08200706 Engine, Subaru All Season Recoil (921313) 00495051 Bracket, Mount-Idler Arm 05500820 Bushing, Sleeve 05500107 Bushing, Sleeve 00493600 Traction Idler Arm 03731800 Belt Finger 06307400...

  • Page 8: Friction Drive

    RICTION RIVE Model 921025, 313...
  • Page 9 RICTION RIVE Model 921025, 313 Item Part No. Qty. Description 00494051 Shift Fork 05500028 Bushing, Polyliner 05500026 Bushing, Polyliner 06944800 Clip, Spring 00383000 Flange, Bearing 07400034 11 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50 04092600 Sprocket, Pinion 07500023 Plug, Hole 00373051...

  • Page 10: Wheels And Axles

    HEELS AND XLES Model 921025, 313 Item Part No. Qty. Description 07100227 Tire/Wheel Assembly Right Hand 15 x 5.00 - 6 07100228 Tire/Wheel Assembly Left Hand 15 x 5.00 - 6 07100726 AR Tire, 15 x 5.00 - 6 K478 05700001 Clip, Snap 06436300...
  • Page 11 OTES...

  • Page 12: Handlebars And Controls

    ANDLEBARS AND ONTROLS Model 921025, 313...
  • Page 13 ANDLEBARS AND ONTROLS Model 921025, 313 Item Part No. Qty. Description 00656151 Handlebar, Lower 00494967 Rod, Shift, Lower 04310100 Clutch Paddle Block 04310451 Clutch Handle, Left Hand 04310551 Clutch Handle, Right Hand 04316651 Bracket, Interlock 04317751 Detent Plate 04318351 Handlebar, Upper, Right Hand 04320400 Interlock Arm 04320500...

  • Page 14: Brush Head

    RUSH Model 921025, 313...
  • Page 15 RUSH Model 921025, 313 Item Part No. Qty. Description 53216100 Cover with Decals, 28" Brush 00258159 Cover, Right Hand Side 00256659 Cover, Left Hand Side 05947900 12 Bolt, Hex .25-20 x .50 06543500 Nut, Locking Top Flange .25-20 07400034 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50 00267451 Cover, End 03278551...

  • Page 16: Brush Drive Unit

    RUSH RIVE Model 921025, 313...
  • Page 17 RUSH RIVE Model 921025, 313 Item Part No. Qty. Description 00268951 Pulley, Attachment 00262251 Arm, Pivot Lock 00297800 Hub, Coupling 02499300 Gear Box Assembly 53216200 Adapter with Decal, Brush Frame 03295351 Adapter, Broom Frame 03634600 Spacer 05412000 Bearing 05500106 Bushing, Sleeve 10 05515800 Bushing, Flange 11 05947300...

  • Page 18: Brush Frame

    RUSH RAME Model 921025, 313 Item Part No. Qty. Description 00180100 Brush, 18" Diameter x 28" Wide 00180600 Sprocket, Reduction Idler 00180859 Mount, Reduction Idler 00181200 Shaft, Brush 03278451 Frame, Brush 01014200 Bearing Flange 00368500 Chain, Roller 00386100 Chain, Roller 00428700 Bearing Flange 10 02997400...
  • Page 20 Ariens 655 West Ryan Street Brillion, WI 54110 920-756-4688 Fax 920-756-2407 www.ariens.com...

This manual is also suitable for:

921025921313
