Clevertronics CLP LIFELIGHT CLIFE Series Installation & Maintenance

Zoneworks and DATA Monitored Options

Lifelights with part numbers CLIFE-ZW, CLIFE-DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilises the power
cable to provide data communication or a dedicated data cable to/from data router installed on a dedicated
data trunk connected to a central Server (can also be connected via Ethernet/Internet/Fibre). Zoneworks
software on the server is used to monitor, coordinate testing and collate test data from each Lifelight.
Zoneworks Lifelights can be commissioned by a single push of the test switch or scanning of the supplied
barcode. The LED Test Switch indicator provides a multifunction indication of the status of the Lifelight
during testing and normal operation:
State LED Operation
Commissioned LED on Solid (Green)
Un-commissioned LED flashes at 0.5Hz (0.5s Green, 0.5s Yellow)
Emergency Light Test In Progress LED flashes at 3s On (Yellow) & 0.5s Off
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)

DALI EM Option

Lifelights with part numbers CLIFE-DALI are fitted with DALI modules (nodes) that facilitate connection
and integration to 3 rd Party Lighting Control Systems. Before installing the CLIFE-DALI please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The CLIFE-
DALI will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
UK Instruction Sheet Template – V1.1 – Updated: 20/11/2020
are fitted with Zoneworks communications modules

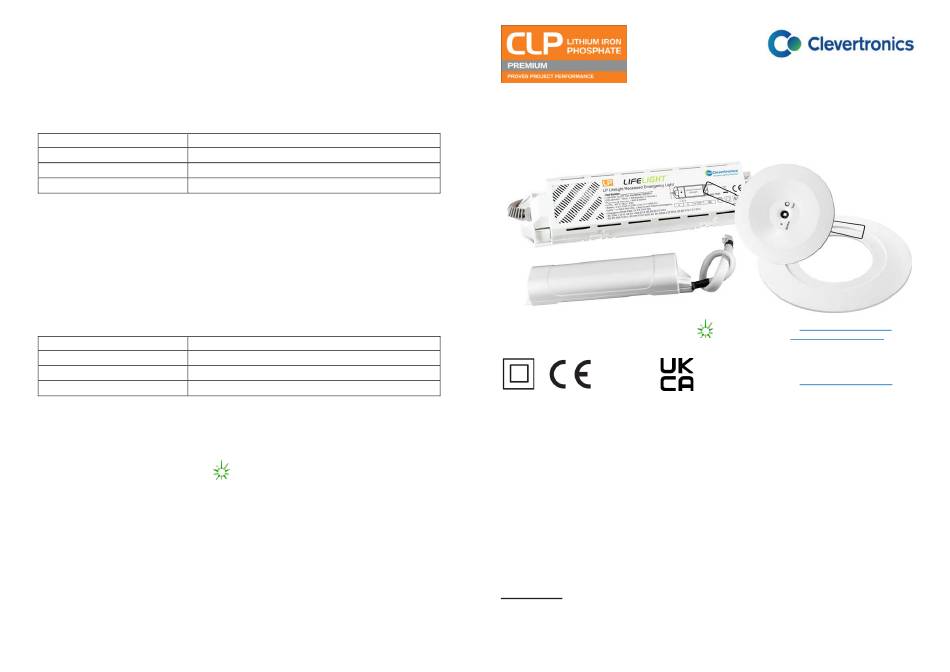

CLP™ LIFELIGHT Recessed Emergency
Luminaire
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
IP20
Models: CLIFE-xx
Testing Options:
Manual Test xx = Blank
Zoneworks xx = ZW
Z/W DATA xx = DATA
DALI Comp. xx = DALI
Spare Parts:
1100925 LifeLight Head Assembly, Round, LT, 1LED
1550092 BATT:CLP 3.2V 3200mAh 260mm lead,no BRKT, With SLEEVE
CLIFE-CKIT-500 CLIFE-CKIT-500,Lifelight, Control Only, CLP Lithium
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.
