Clevertronics L10 LIFELIGHT PRO-SM Series Assembly, Installation & Maintenance Instructions

Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
For products with a Dome (-D), the Dome may require removal to successfully scan the fitting with a
camera using the CleverSparky App.
Maintained fittings (LLIFEM-PRO-SM-vv-xx-yy-zz-ww) cannot be scanned with a camera using the
CleverSparky App as the maintained light source interferes with the camera scanning function. To
register the fitting manually enter the serial number from the QR code and visually read the test result
and enter manually into CleverSparky.
Zoneworks HIVE Monitored Options
Fittings with part numbers -HV/-HVG are fitted with Zoneworks communications modules (nodes). These
fittings are monitored using RF transceiver modules operating in the ISM band connected to a central
Server (can also be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to
monitor, coordinate testing and collate test data from each fitting. Zoneworks Fittings can be
commissioned by scanning the supplied barcode. The LED Test Switch indicator provides a multifunction
indication of the status of the fitting during testing and normal operation:
Option State
HV, HVG, Commissioned
Un-commissioned
HV, HVG
With network connectivity
Un-commissioned
HV, HVG
Without network connectivity
HV, HVG Emergency Light Test In Progress
For further information of installation of a Zoneworks system, please refer to the Zoneworks Users Guide
and Commissioning Guide
DALI EM Option
Luminaires with part numbers having -DALI
rd
and integration to 3 Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
Instruction Sheet Template - V1.3 – Updated 20/01/2022
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS,
green 250mS, yellow 250mS, green
250mS, green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 1s , 0ff 1s
are fitted with DALI modules (nodes) that facilitate connection
TM

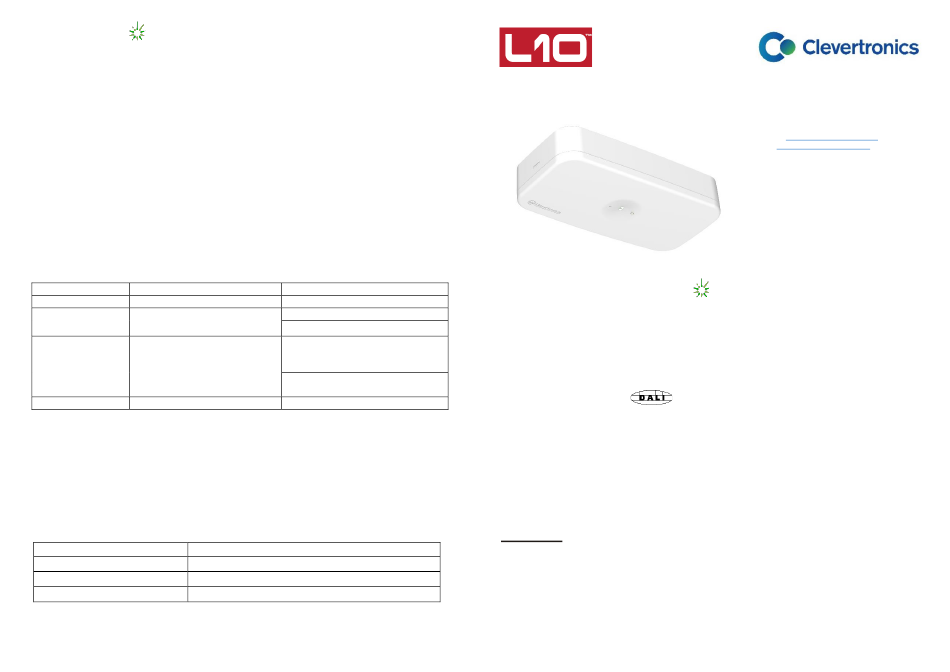

L10 LIFELIGHT PRO Surface Mount Emergency
Luminaire
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements
of AS2293.3: 2019 and AS/NZS CISPR15: 2017
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
LLIFEx-PRO-SM-vv-xx-yy-zz-ww
Models:
Testing:
Manual Test xx = Blank
Zoneworks HIVE xx = HV/HVG
DALI Registered. xx = DALI
Spare Parts:
1530231 Replacement Battery
8003081 Replacement Emergency LED Board
8003501 Replacement Emergency Driver
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
are
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Options:
Dome z=D
Tamperproof yy=TP
Colour, Black ww=BLK
Non-Maintained x=Blank
Maintained x=M
Switched Active vv=SA
1942264 V1.0 29 March 2022
