Clevertronics L10 LIFELIGHT PRO Instruction Leaflet

DALI EM Option
Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection
rd
and integration to 3 Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
To confirm operation of the fitting the Lighting Control System can only use the status query type
command. To "test" the sign this status query will need to be synchronised with the formal test of the
UPS from its battery source. The sign will report a fault if the LED lamp bar is not illuminated.
DO NOT run a Start Function Test or Start Duration Test command. If either of these is run, the
fitting will go into test mode and the fitting will switch off as it will be internally disconnected from main
power and there is no battery so the LED lamp won't run – the unit will report a failed test. This
condition cannot be rectified, and the fitting will report this forever as it can never pass a test of this type.

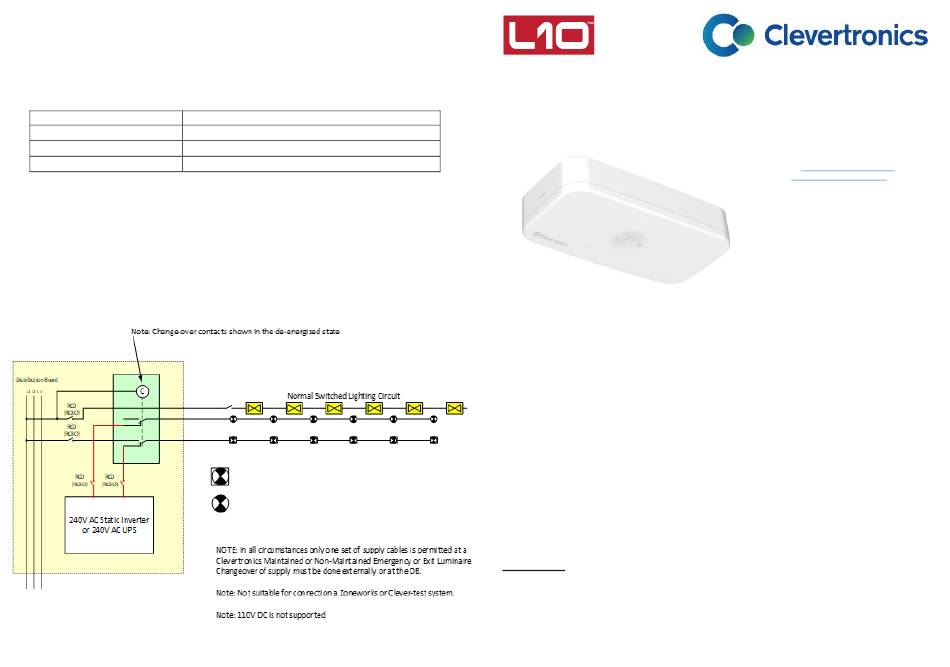

UPS Wiring and Connecting arrangements
TM
L10 LIFELIGHT PRO Surface Mount Emergency
Luminaire
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements of
AS2293.3: 2005 and AS/NZS CISPR15: 2017
Models: LLIFEx-PRO-SM-UPS-yy
Testing:
Manual Test xx = Blank
DALI xx = DALI
Spare Parts:
8003081 PCA: LLPRO HEAD Alum #CT10640-D4 - GW CSHPM
8002924 PCA: xLIFEPro #CT10142-L9 2C250/550 CTP AU
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Options:
yy = BLK Colour, Black
x = M Maintained
1942485 V1.1 10 June 2021
