LG PZCWRCG3 Installation Manual

INSTALLATION MANUAL

AIR

CONDITIONER

Please read this installation manual completely before installing the product.

Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

Please retain this installation manual for future reference after reading it

thoroughly.

Cable Assembly

PZCWRCG3

P/NO : MFL67602807

Rev.00_170116

www.lg.com

Table of Contents

Need help?

Do you have a question about the PZCWRCG3 and is the answer not in the manual?

Page 1 Please read this installation manual completely before installing the product. Installation work must be performed in accordance with the national wiring standards by authorized personnel only. Please retain this installation manual for future reference after reading it thoroughly. Cable Assembly PZCWRCG3 www.lg.com P/NO : MFL67602807 Rev.00_170116...
Page 2 Cable Assembly Installation Manual TABLE OF CONTENTS Part Description ..............3 Installation Guide ...............4 n Wiring diagram for using group control .............4 n Steps of installation..................4 2 Cable Assembly...

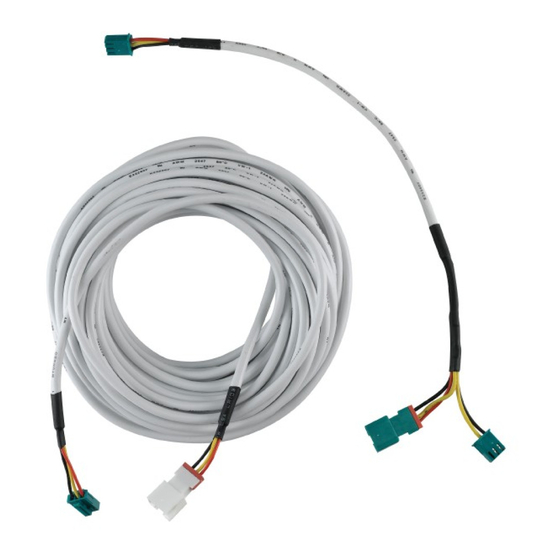

Page 3 Part Description Part Description This accessory is used for group control while using the wired remote controller. Cable assembly for indoor units: 1EA Cable assembly used for connecting indoor to other indoor: 1EA Installation Manual 3...
Page 4 Installation Guide Installation Guide Wiring diagram for using group control Wired controller Installing step Please Connect wire For detailed installation scene, refer to below wiring diagram. Note : Cable assembly for indoor units Cable assembly used for connecting indoor to other indoor - Please connect cable assembly with already connected indoor unit Indoor MAIN PCB...
