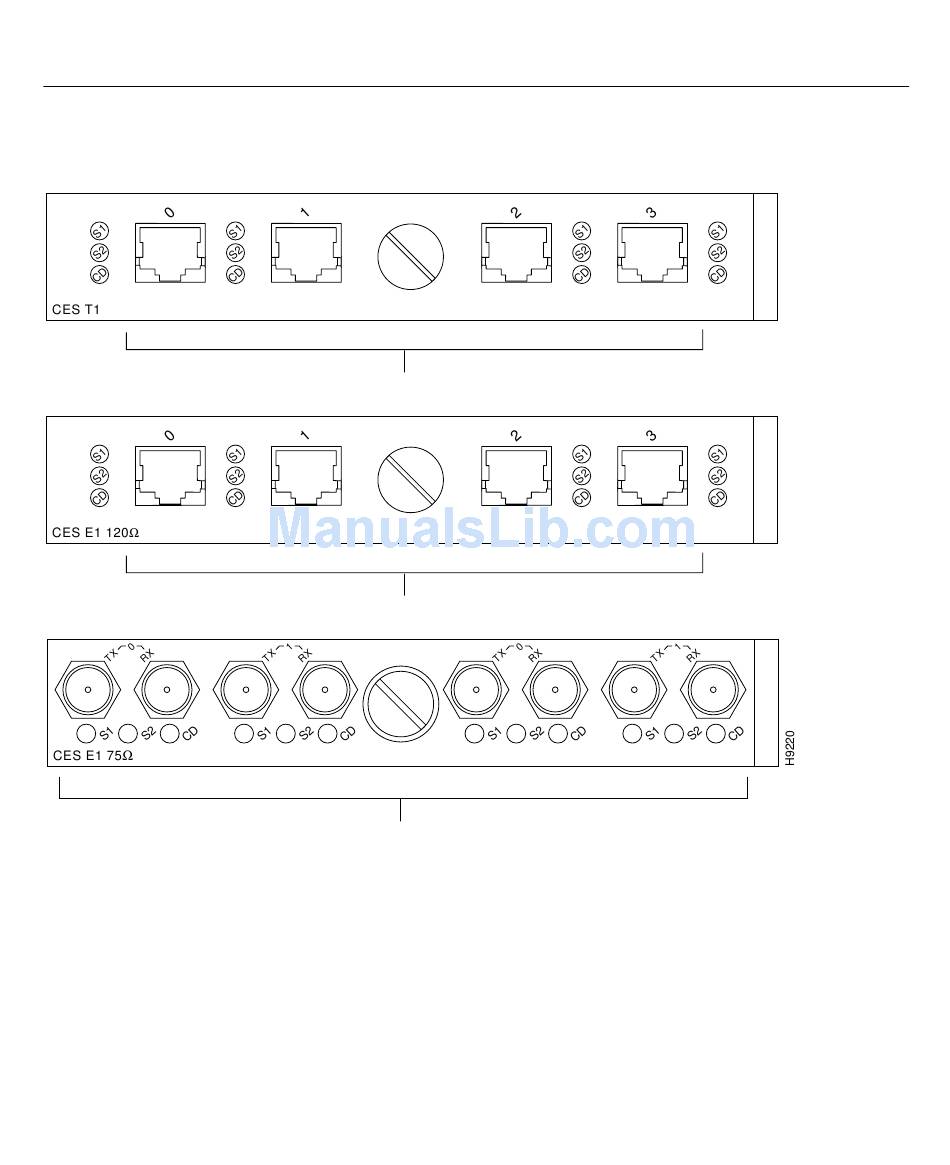

Figure 8-3
CES T1 and E1 Connections and LEDs
RJ-48c connectors
RJ-48c connectors
BNC connectors
The LEDs for the CES T1 and CES E1 modules exhibit the illumination states shown in
Table 8-2.
Connecting the Interface Cables and Checking the LEDs
Cabling and Configuring the CES Port Adapter Modules 8-9
