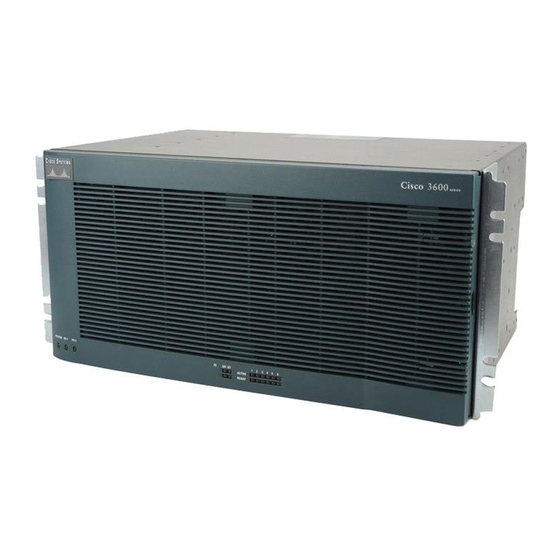

Cisco 3660 Installation Manual

Installation On Cisco 3660 Routers
This chapter describes how to install a NEBS Level 3/ETSI kit on your Cisco 3660 router and contains
the following sections:
Attaching The 23-Inch Rack-Mounting Brackets, page 4-1
•
Installing The Ground Lug, page 4-4
•
Making Network Connections, page 4-6
•
Installing The Alarm Terminal Block, page 4-7
•
If you have yet to install your Cisco 3600 series router, see the publication Cisco 3600 Series
Note
Hardware Installation Guide.
You can access this document online and on the documentation CD-ROM that you received with
your router
Access Routers > Cisco 3600 Series Routers > Hardware installation documents for Cisco 3600
series
Attaching the 23-Inch Rack-Mounting Brackets
The NEBS kit for Cisco 3660 routers comes with rack-mount brackets for installing the Cisco 3600
series routers in 23-inch or 24-inch racks.
Attach the mounting brackets to the chassis as shown in
screws provided. Attach the second bracket to the opposite side of the chassis.
78-5450-06 B0
at: Cisco Product Documentation > Access Servers and Access Routers > Modular
NEBS Level 3 and ETSI Compliance Kit Installation Guide for Cisco 3620, Cisco 3640, and Cisco 3660 Routers
C H A P T E R
Figure 4-1, Figure 4-2, or Figure
4
4-3, using the
4-1
