Lynx yellobrik ORR 1402 Quick Reference

Technical Specifications
Optical Inputs
2 x ber optic Inputs
Duplex (Singlemode) using LC/PC Connectors
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M,
SMPTE 292M; SMPTE 259M
Input range (wavelength) 1260nm to 1620nm
RX sensitivity: -9dBm @ 12Gbit/s
2x RX data present LEDs on side of module
SDI Outputs
2 x SDI video on 75 Ohm BNC connector
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M,
SMPTE 292M; SMPTE 259M
Multi-standard operation from 270Mbit/s to 12Gbit/s
Return Loss: >15dB up to 1.5GHz ; >10dB up to 3GHz ;
>7dB up to 6GHz ; >12dB up to 12GHz
Power
+12V DC @ 1.9W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG
yellobrik
-10dBm below Gbit/s
®
Broadcast Television Equipment
yellobrik
®
ORR 1402

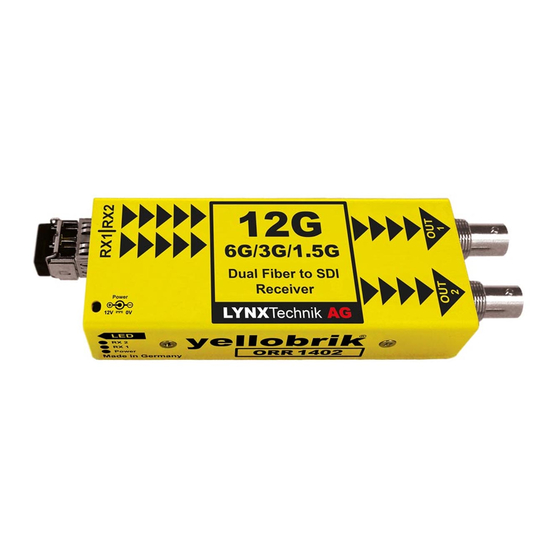

Dual Channel 12G Fiber to SDI Receiver
Power
12V 0V
DC Power Input
LC Fiber Optic
Inputs (2)
®
12G
6G/3G/1.5G
Dual Fiber to SDI
Receiver
LYNXTechnik AG
RX2 Data RX1 Data
Present Present
Power
Quick
Reference
SDI Video
Outputs (2)
