Technical Specifications
Optical Input
1 x Fiber optic input (LC/PC Connection)
SMPTE 297M - 2006
Input range (wavelength) 1260nm to 1620nm
RX sensitivity -2dBm to -10dBm
RX active LED on side of module
SDI Outputs
2 x SDI video on 75 Ohm BNC connector
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Power
+12V DC @ 2W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
|
Broadcast Television Equipment
yellobrik
®

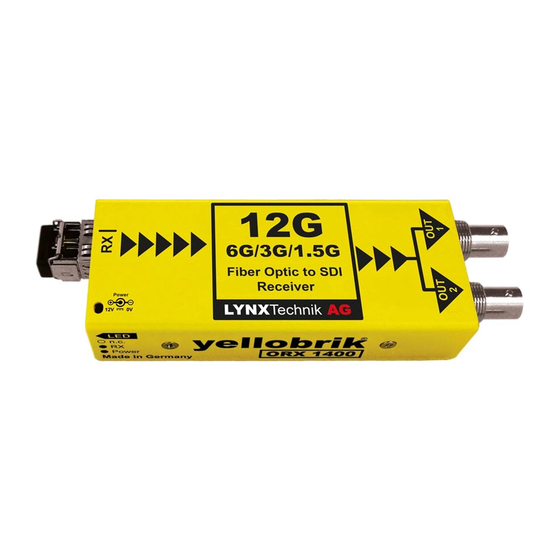

ORX 1400
12G Fiber Optic to SDI Receiver

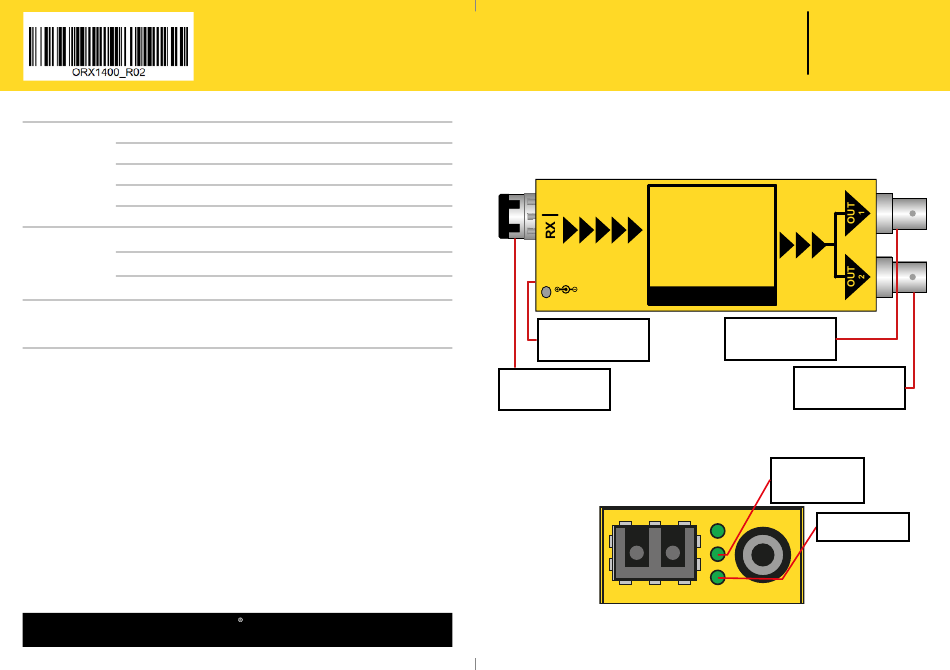

Power
⎓
12V
0V
DC Power
Input
LC/PC Fiber
Input
Quick
®
Reference
12G
6G/3G/1.5G
Fiber Optic to SDI
Receiver
LYNXTechnik
AG
SDI Video
Output 1
SDI Video
Output 2
RX Data
Present
Power
