Technical Speci cations
Optical
SMPTE 297M - 2006
Input
Singlemode Version: ORX 1802-2 LC/ ORX 1802 ST/SC
Transmitter: 1260nm-1620nm (-3 dBm to -19dBm)
LC/ST/SC Connection
Multimode Version: ORX 1802 MM
Receiver: 780nm-880nm (0dBm to -15dBm)
LC/PC Connection
SDI Output
2 x SDI video on 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Return Loss: >15dB up to 1.5GHz ; >10dB up to 3GHz
+12V DC @ 1.9W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®
ORX 1802 (LC,ST,SC,MM)

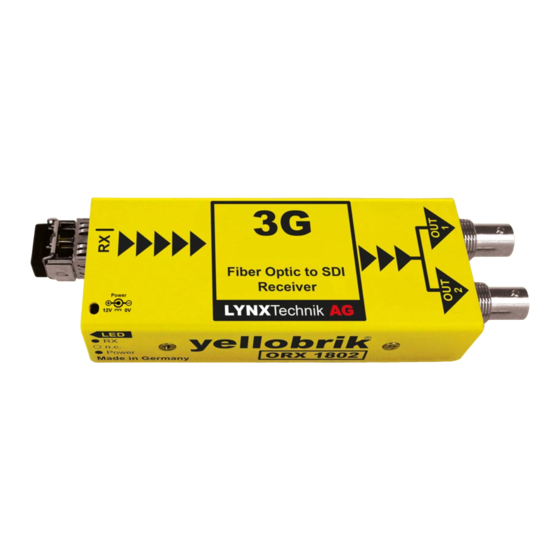

3G Fiber Optic to SDI Receiver
Power
12V
0V

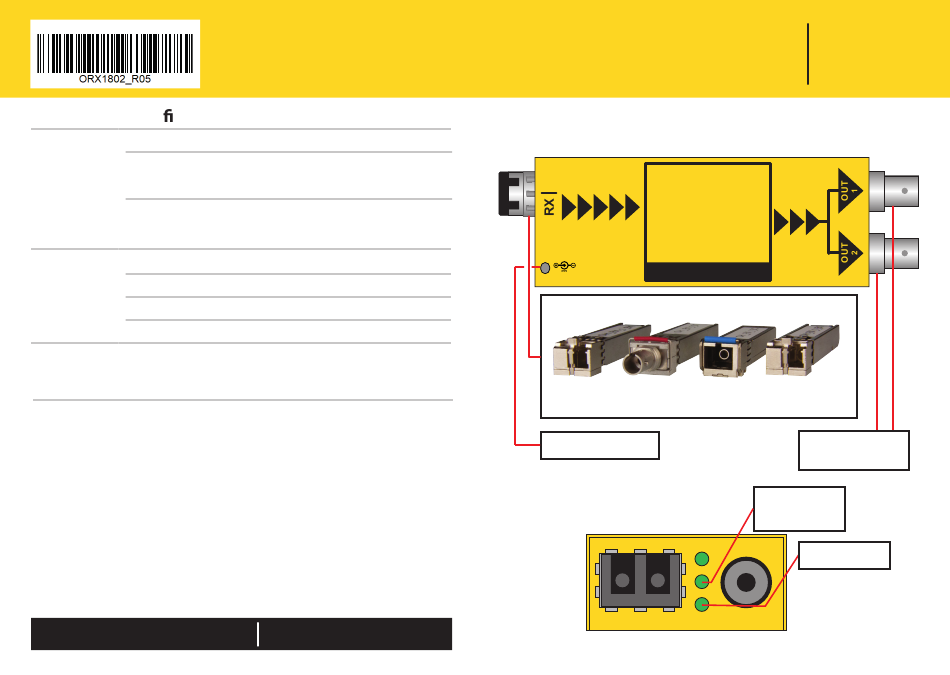

Fiber Input - Four options are available
LC
Singlemode
DC Power Input
®
3G
Fiber Optic to SDI
Receiver
LYNXTechnik
AG
SC
LC
ST
Multimode
Singlemode
Singlemode
RX Data
Present
Quick
Reference
SDI Video
Outputs (2)
Power
