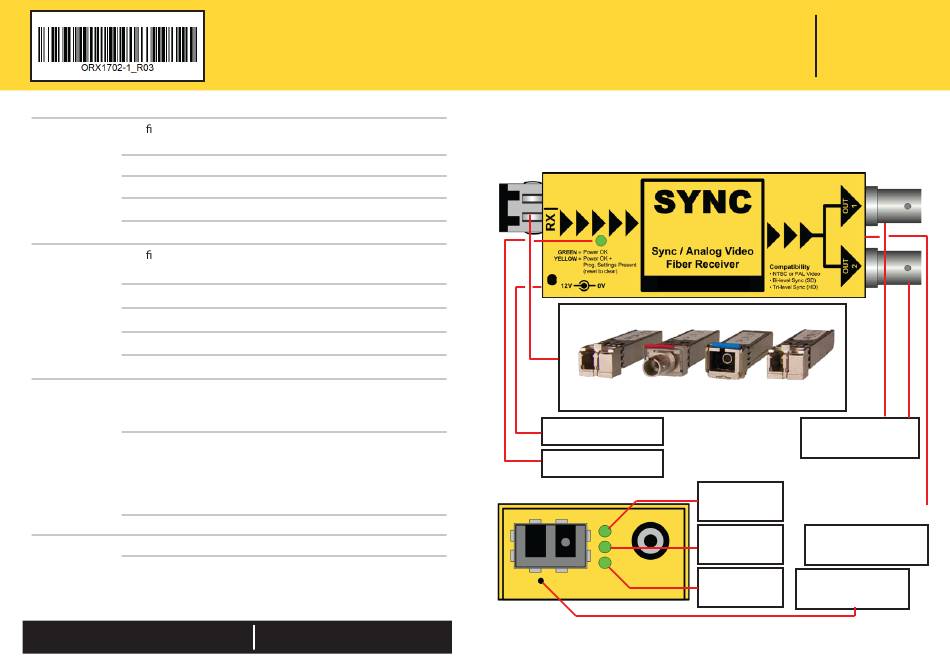

Technical Specifications
Fiber Input
1 x ber optic Input
LC, ST or SC connection
Singlemode
SMPTE 297M - 2006
Input range (wavelength): 1260nm to 1620nm
RX sensitivity: -3dBm to -19dBm
RX active LED on side of module
Fiber Input
1 x ber optic input
LC connection
Multimode
SMPTE 297M - 2006
Input range (wavelength) 780nm to 880nm
RX sensitivity: 0dBm to -15dBm
RX active LED on side of module
Analog
Sync = analog black burst / SDTV bi-level / HDTV tri-level
Output
Video = NTSC / PAL composite video
2 identical outputs provided. 75 Ohm BNC connectors
NTSC SMPTE 170M, PAL CCIR624
Analog tri-level sync SMPTE ST 274, ST 296
720p, 1080i 50/59.94/60
1080p 23.97/24/25
1080psF 23.97/24
Return loss: 46.5dB to 10MHz
Power
+12VDC @ 3.5W nominal - (supports 8 - 24VDC input range)
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®

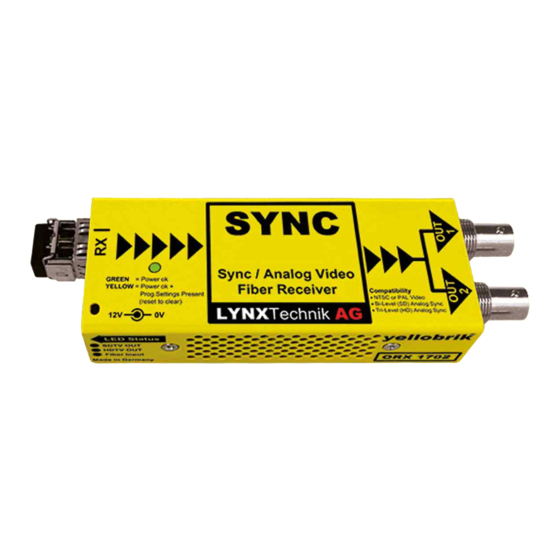

ORX 1702-1 (LC,ST,SC,MM)
Sync / Analog Video Fiber Receiver
Fiber Output - Four options are available
LC
Singlemode
DC Power Input
®
LYNXTechnik
AG
ST
SC
LC
Singlemode
Singlemode
Multimode
Analog (SD) Video
or Sync Outputs
SDTV Mode
(Video/Sync)
HDTV Mode
(Sync)
(F/W updates + control)
Fiber
Factory Reset
RX Active
Quick
Reference
USB Port
(through hole)
Advertisement
Table of Contents
Related Manuals for Lynx yellobrik ORX 1702-1 LC
Summary of Contents for Lynx yellobrik ORX 1702-1 LC
- Page 1 +12VDC @ 3.5W nominal - (supports 8 - 24VDC input range) (Sync) (F/W updates + control) We are constantly adding additional yellobrik modules. Fiber Factory Reset Please visit our website for the latest product updates. RX Active (through hole) www.lynx-technik.com LYNXTechnik ® Broadcast Television Equipment...
- Page 2 Please retain the plug and use if For more information and to download the yelloGUI application please the cable is ever disconnected from the module. goto: http://yellogui.lynx-technik.com Operation Power Lead Strain Relief Operation of the ORX 1702-1 is fully automatic. The ber input is The module has a small hole in the case located above the power automatically detected and converted to an analog sync signal.
