Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Phoenix
Summary of Contents for Happybeds Phoenix

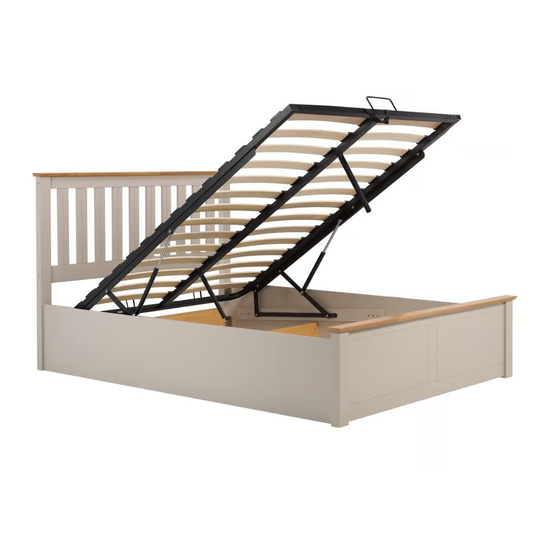

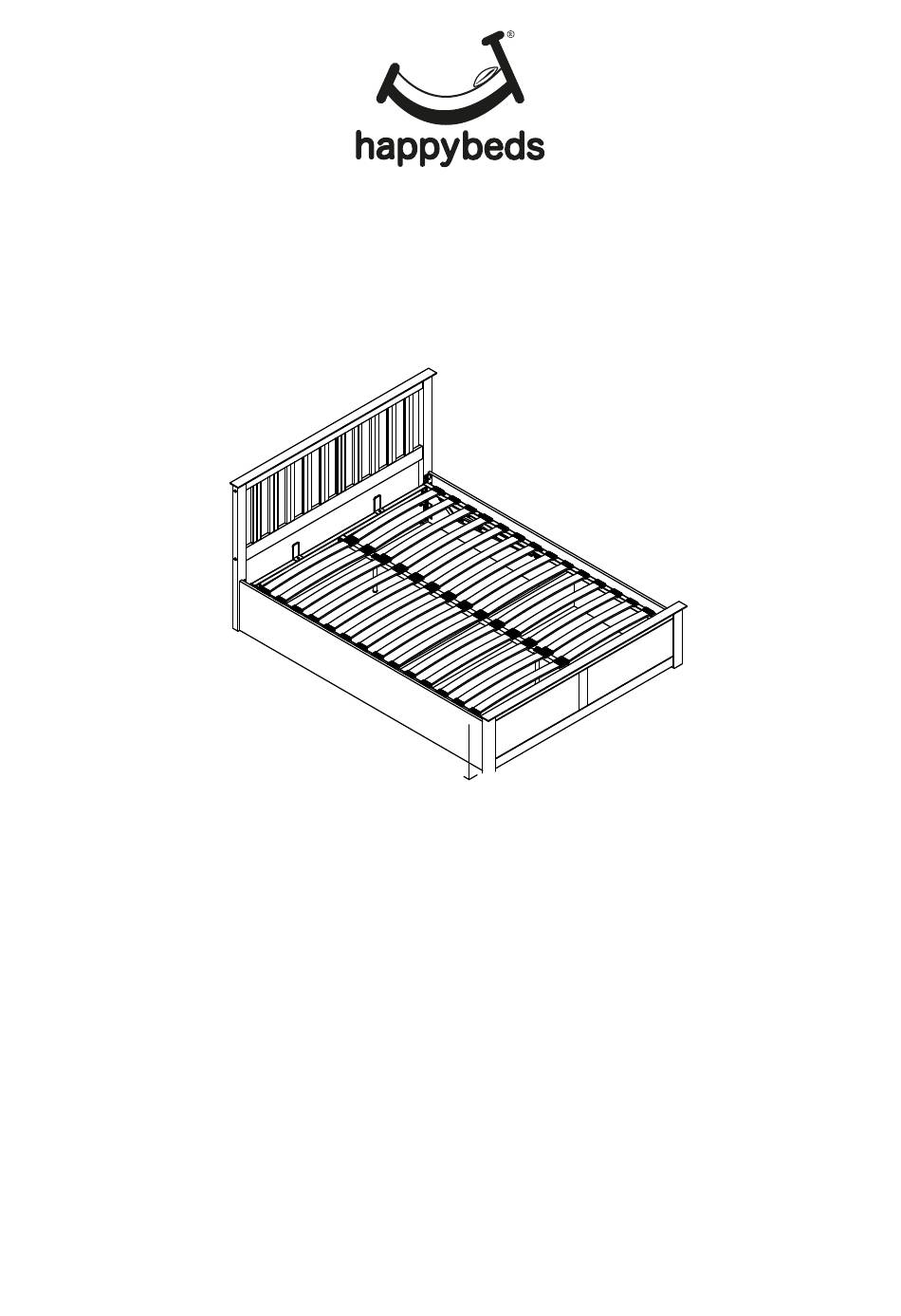

- Page 1 Assembly Instructions Phoenix - Double/King Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 Vendor: S000307 Parts List Parts Description Top Bar Headboard Frame Left Wooden Post Right Wooden Post Footboard Left Side Rail Right Side Rail Centre Storage Panel Back Storage Panel Hydraulic Arm Spacer Left Side Metal Bar Right Side Metal Bar Headboard End Metal Bar Footboard End Metal Bar Center Metal Bar...
- Page 4 Vendor: S000307 Hardware List (Found in box #) Parts Description Mini Fix 8 x 30 mm Wooden Dowel Metal Corner Block M6 x 90 mm Barrel Nut M6 x 15 mm JCBC Bolt M8 x 25 mm JCBC Bolt M8 x 15 mm JCBC Bolt M8 x 35 mm JCBC Bolt Bracket 20 mm x 58 mm Base Handle...
- Page 5 Vendor: S000307 Step 1: Attach the headboard frame (2) and back storage panel (9) to the left wooden post (3) and right wooden post (4). Secure the headboard frame using hardware parts B, D and O, then secure the back storage panel with hardware parts B,E and I.
- Page 6 Vendor: S000307 Step 3: Firstly screw the minifit part A to the top bar (1) as shown and than fix the top bar (1) to the footboard frame (5) using hardware parts A. BACK VIEW Step 4: Firstly, fix the hydraulic pump to each hydraulic base as shown in diagram 4.1. Next, fix the left &...
- Page 7 Vendor: S000307 Step 5: Join together the left side rail (6) and right side rail (7) with the centre storage panels (8) using hardware parts A and B. Step 6: Fix side rail to the headboard and footboard with hardware as shown. Page 6 of 10...
- Page 8 Vendor: S000307 Step 7: Fix metal corner block C to the edge of footboard and side rails with bolt G as shown. Step 8: Join together all the bed base parts (11),(12),(13),(14) and (15) using hardware parts K,Q,R and also attach hardware part P by slot to the part (14). And than attach hardware parts J using hardware part K as shown.Important note: Please assemble follow arrow direction.
- Page 9 Vendor: S000307 Step 9: Insert the slats (17) to hardware parts M and N then press into the base making sure they are secure. Step 10: Assemble the bed base on the right & left hydraulic frame and fix bolts L starting from ' 1 ' to ' 3 ' as shown and fix the support leg (16) to the bed base as shown and than stick it the self adhesive S as shown.
- Page 10 Vendor: S000307 Step 11: Adjust the bed base making sure that the distance to the footboard is approximately 15 mm to above. Tighten all bolts and screws now. HEADBOARD 15 mm to above FOOTBOARD Page 9 of 10...
- Page 11 Vendor: S000307 CAUTION : PLEASE USE HYDRAULIC PUMP STOPPER FOR SAFETY PURPOSE. HYDRAULIC PUMP STOPPER (LOCK IN) (LOCK OUT) Page 10 of 10...
-
Page 12: General Care And Maintenance
