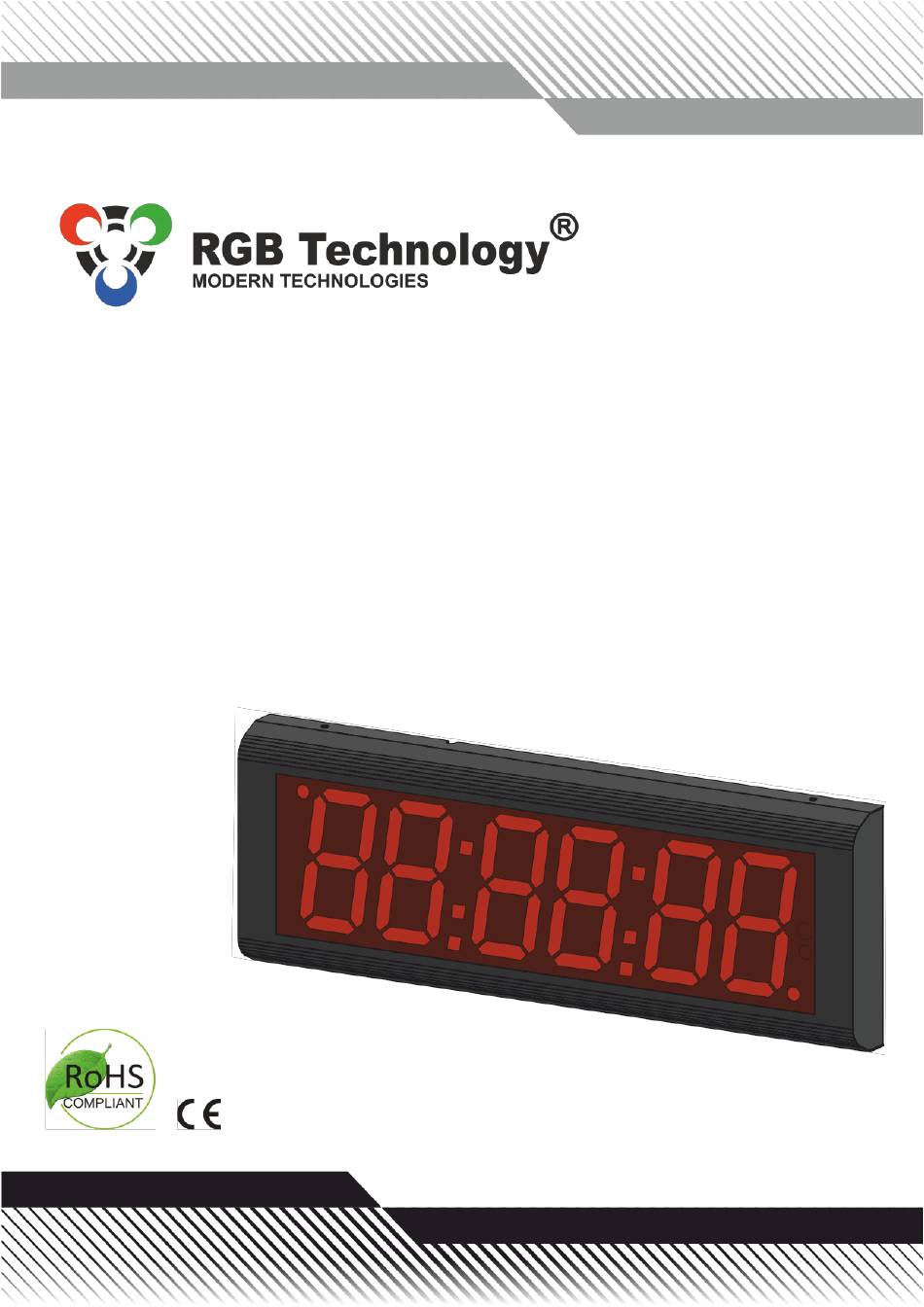

OPERATION AND MAINTENANCE MANUAL
ZBS10-L PoE CLOCKS
Product code:
301-E3-53
*Explanatory figure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZBS10-L and is the answer not in the manual?

Questions and answers

Summary of Contents for RGB Technology ZBS10-L

  • Page 1 OPERATION AND MAINTENANCE MANUAL ZBS10-L PoE CLOCKS Product code: 301-E3-53 *Explanatory figure...
  • Page 2: Table Of Contents

    Manufacturer ..................................3 Specifications ..................................3 Transport and storage ................................ 3 Device construction ................................3 Dimensions of the ZBS10-L PoE device ........................4 4.1.1 Mounting the ZBS10-L PoE device ........................4 Installation of the device ..............................4 ZBS10-L PoE application ............................. 5 ZBS10-L PoE configuration ............................
  • Page 3: Manufacturer

    Due to the protective packing the module should be stored in the temperature not lower than -25°C and not higher than +60°C at the humidity below 99%RH. 4 Device construction ZBS10-L PoE is cased in a powder-coated steel housing. The properly installed device meets the IP4X tightness requirements. The figure shows ZBS10-L PoE clock det.
  • Page 4: Dimensions Of The Zbs10-L Poe Device

    4.1 Dimensions of the ZBS10-L PoE device All the dimensions shown in the drawings are given in [mm]. fig. 2 4.1.1 Mounting the ZBS10-L PoE device fig. 3 5 Installation of the device Proper installation consists in mounting the device in one of ways proposed by Producer. Only the correct installation of the device ensures its proper operation and maintaining the device parameters.
  • Page 5: Zbs10-L Poe Application

    5.1 ZBS10-L PoE application The ZBS10-L PoE device is designed to display time and date. Additionally the clock could be used as a time standard for other devices. For the proper operation of the device, it should be correctly configured.
  • Page 6: Accuracy

    Master clock is a time standard for Slave clocks. Also it controls the displayed information. Thanks to that all the clocks show exactly the same time and type of information e.g. display the temperature simultaneously. The cooperation is possible between different models of RGB Technology clocks. DTR_301-E3-XX-001_EN_a...
  • Page 7: Initial Start-Up

    10 Initial start-up Step 1: Connect the device to the power supply, IEEE 802.3at compliant Step 2: Properly connected system should display pre-set (current) time and date. 11 Disposal and recycling 11.1 Recycling of the package The packaging materials must be segregated , then recycled in accordance with local regulations for waste disposal regulations.
