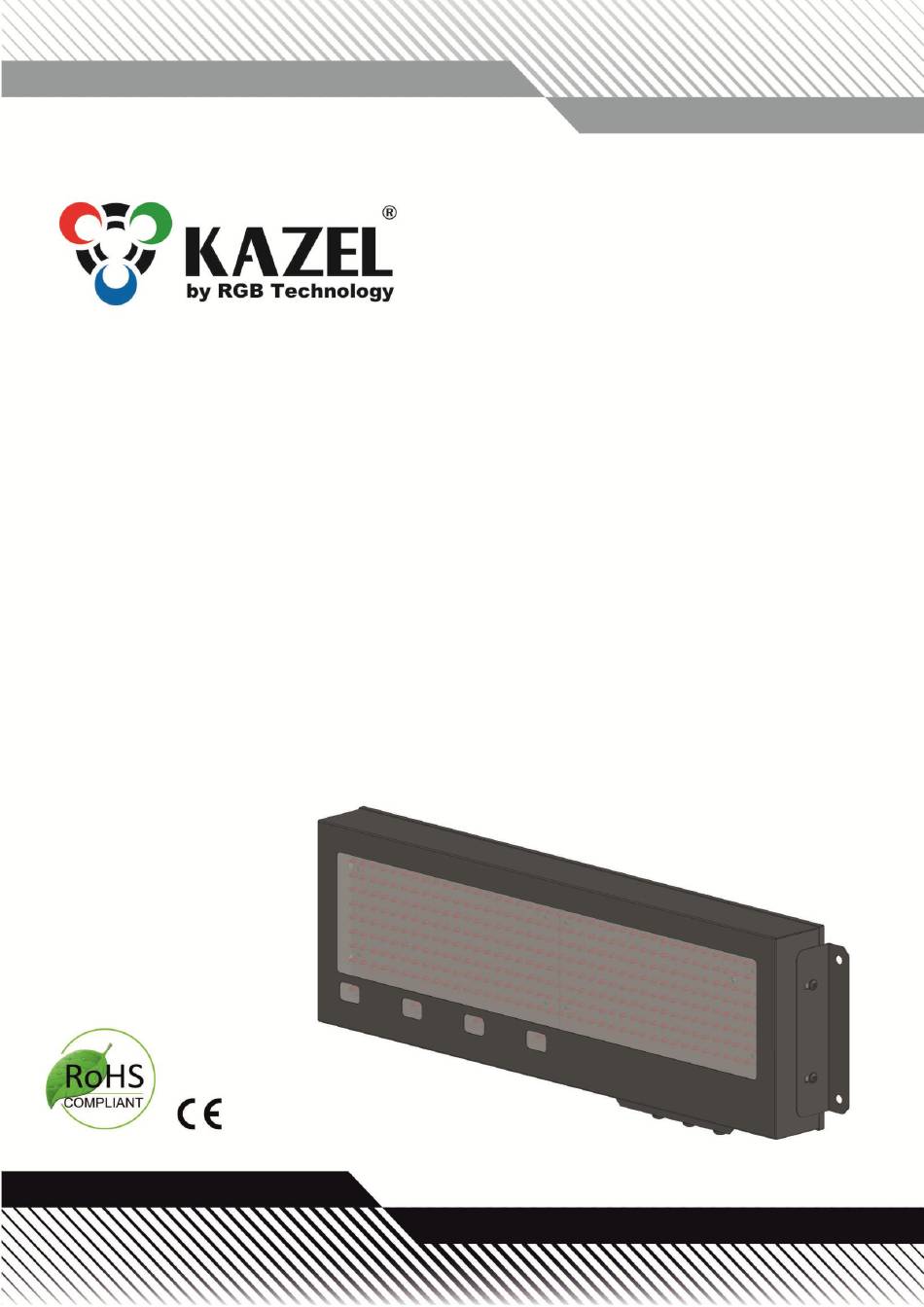

- Page 1 OPERATION AND MAINTENANCE MANUAL RM-470 OPERATION AND MAINTENANCE MANUAL Product code: RM-470 314-05-01 Product code: 314-05-01 Explanatory figure...
-
Page 2: Table Of Contents
Table of contents: Specification ............................3 Transport and storage ......................... 3 Device construction ..........................3 RM-470 construction ........................3 RM-470 dimensions ........................4 3.2.1 Dimensions without accessories ..................4 Device installation ..........................4 RM-470 application ........................4 "Autolearn” function ........................4 RM-470 manual configuration (Communication protocol selection) .......... -
Page 3: Specification
1. Specification RM-470 remote display Dimensions: 679mm x 242mm x 74mm / 26.7in x 9.5in x 2.9in Digit height: 120mm / 4.7in Accepted input voltage range (long-term): 100 ÷ 240 VAC Accepted input voltage range (short-term): 85 ÷ 264 VAC Accepted input voltage range: 47 ÷... -
Page 4: Rm-470 Dimensions
3.2 RM-470 dimensions 3.2.1 Dimensions without accessories Fig. 2 4. Device installation The device should be mounted on a flat surface, with the wires facing down. Only the correct installation of the device ensures its proper operation and the maintenance of the device parameters, such as housing tightness to the declared IP class. -
Page 5: Rm-470 Manual Configuration (Communication Protocol Selection)
The “Autolearn” function also detects gross/net measurements if the following markers are sent in the frame: - for the Net measurement: 'n' and 'N' from the ASCII table, - for the Gross measurement: 'g' and 'G' from the ASCII table. In this case, the marker position will also be saved. -
Page 6: Supported Parameters And Baud Rates
2) proto - This option enables the selection of the communication protocol saved in the display memory, which enables cooperation with the selected weighing indicator. The protocol is changed by pressing the microbutton. Saving the selected protocol is accomplished by long holding down the microbutton (until the message "Saved"... -
Page 7: Web-Panel
4.3.4 Web-panel The embedded Web panel allows: - selecting the communication protocol of the weighing indicator, - changing the network settings, - checking the version of and updating the display software, The detailed information concerning the Web-panel operation and its capabilities can be found in the device operation manual. -
Page 8: List Of Connectors Of The Display Controller Board
5.2 List of connectors of the display controller board Table 3 lists the controller connectors (Fig. 5, det. B) in RM-470 remote display. The connectors can be accessed by pulling out the controller board drawer, without opening the entire device, or removing any connections or parts. -
Page 9: Rs-232 Connector
5.2.1 RS-232 connector For configuration purposes, the user connects the remote display to the computer with installed RGB WagSet 2 software via RS-232 connector. 5.2.2 RS-485 / RS-422 connector For configuration purposes, the user connects the remote display to the computer with installed RGB WagSet 2 software via RS-485 / RS-422 connector. -
Page 10: Mounting Rails
6.2 Mounting rails Fig. 8 Fig. 9 6.3 Mounting brackets Fig. 10 Pole mounting brackets are available in the following sizes: 2" - pole outer diameter 60.3 mm, 3" - pole outer diameter 84.0 – 88.9 mm, 4"... -
Page 11: Automatic Brightness Control Of The Remote Display
7. Automatic brightness control of the remote display RM-470 has a brightness sensor installed on the LED panel as standard. When the automatic control profile is enabled, the device adjusts its brightness responsively to the intensity of daylight. det. A – brightness sensor Fig.
