  6. Operating & parts manual

Bandit 75 Operating & Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

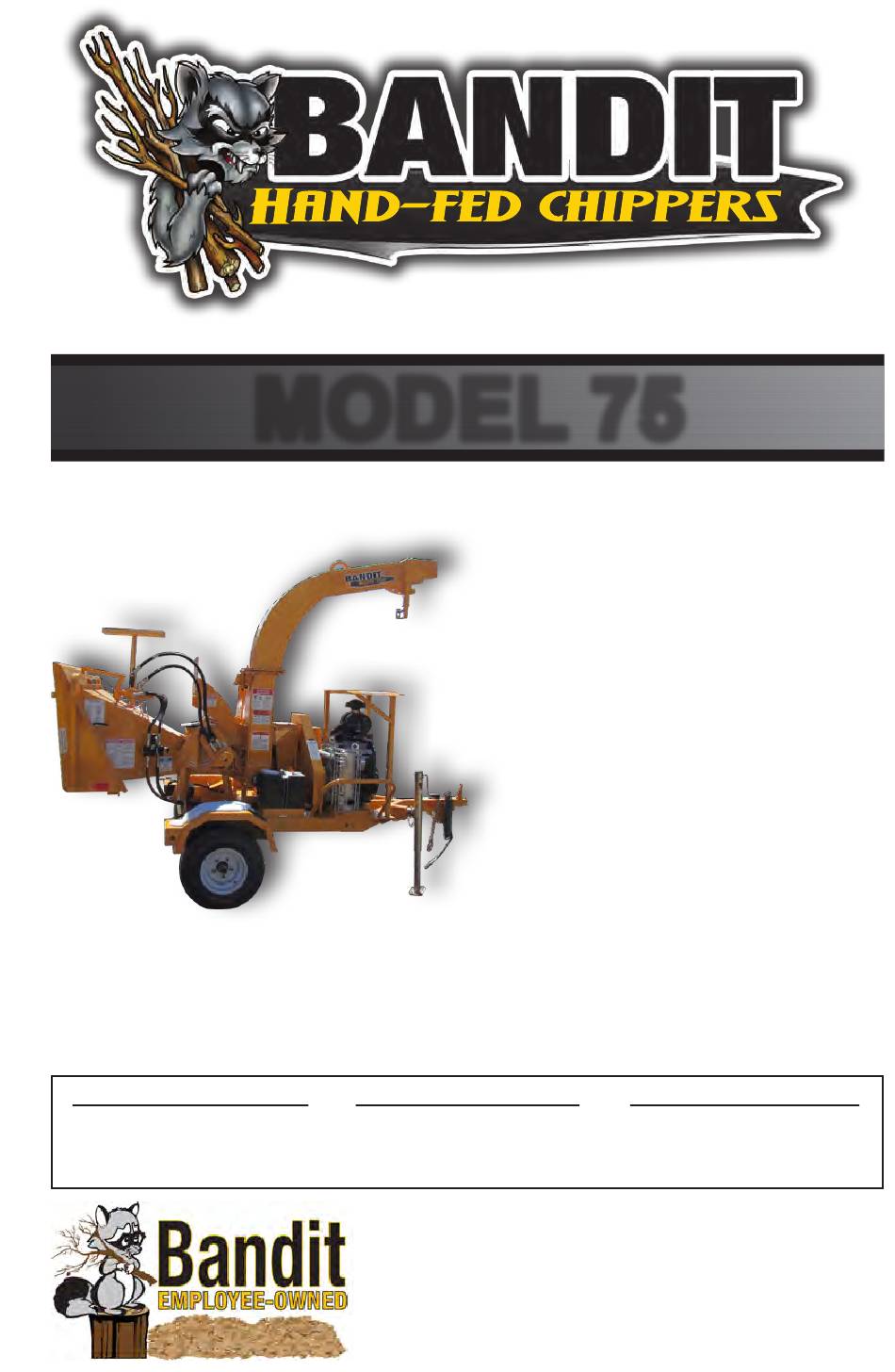

OPERATING & PARTS MANUAL
MODEL 75
Model No: __________________________
Serial No: __________________________
Engine Make: _______________________
Serial No: __________________________
Clutch Make: ________________________
Model: ___________ S/N _____________
DEALER:
Name: _____________________________
Address: ___________________________
City/State: __________________________
Phone No: __________________________
Delivery Date: _______________________
Copyright 1/21
ATTENTION:
Depending on what replacement parts you are ordering, we will need the following information:
CHIPPER COMPONENTS
ENGINE COMPONENTS
CLUTCH COMPONENTS
Serial Number
Brand
Brand
Model Number of Chipper
Engine Serial Number
Clutch Serial Number
Engine Model Number
Clutch Model Number
MANUFACTURED BY BANDIT INDUSTRIES, INC
6750 Millbrook Rd. • Remus, MI 49340
PHONE:
989
561-2270
(
)
PHONE:
800
952-0178 IN USA
(
)
FAX:
989
561-2273 ~ SALES DEPT.
(
)
FAX:
989
561-2962 ~ PARTS/SERVICE
(
)
WEBSITE:
www.banditchippers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bandit 75

Summary of Contents for Bandit 75

  • Page 1 Brand Brand Model Number of Chipper Engine Serial Number Clutch Serial Number Engine Model Number Clutch Model Number MANUFACTURED BY BANDIT INDUSTRIES, INC 6750 Millbrook Rd. • Remus, MI 49340 PHONE: 561-2270 PHONE: 952-0178 IN USA FAX: 561-2273 ~ SALES DEPT.
  • Page 2 CALIFORNIA PROPOSITION 65 WARNING Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. • Always start and operate the engine in a well-ventilated area. • If in an enclosed area, vent the exhaust to the outside.
  • Page 3 ACCIDENTS INVOLVING BRUSH CHIPPERS CAN AND SHOULD BE PREVENTED... Operator training and enforcement of safety policies are ESSENTIAL! Bandit Industries, Inc. Safety Booklet...
  • Page 4 If you have purchased a Brush Bandit® Chipper second hand, know someone that has, or have resold a Brush Bandit® Chipper - please contact us. Please fax us at (989) 561-2273 or e-mail us at www. banditchippers.com with the chipper model number, chipper serial number, and current owners name, address, etc.
  • Page 5 The following safety features have been developed for, and are currently being used on Brush Bandit® Chippers. They are available from your local Bandit® Dealer. Some are new and some have been presented before. We urge you to update your chippers with these devices.
  • Page 6 Also supply the inside width dimension of the inlet end of the infeed hopper or existing 18” deep folding infeed pan. Folding infeed pans were optional on Bandit Chippers for many years. The 18” deep infeed pan became standard equipment on Bandit hand-fed chippers in February 1994.
  • Page 7 The chipper hood must NEVER be opened, or pushed closed if the disc/drum is turning. When you supply the chipper model and serial number, this kit is available through your local Bandit® dealer. You also need to supply us with the engine make and model, then we will include the electric schematic to wire the device into the engine system.
  • Page 8 Have you heard reports or seen your employees bending over and reaching into the infeed hopper, near the feedwheels? Along with the wooden push paddle and the infeed hopper tray, Bandit Industries, Inc. began installing on their mechanical feed hand fed chippers the patented “Last Chance Stop” cable system. This system has been standard on Bandit®...
  • Page 9 FEED CONTROL BAR FEED CONTROL BAR R E V E R Brush Bandit® Chippers that are designed to be hand fed have F E E D a simple, easy to reach feed control bar located across the top and A R D F O R W down both sides of the infeed hopper.
  • Page 10 Don’t slam the chipper hood open! It damages the hinge! The hinge needs periodic lubrication to properly operate and to avoid excessive wear! The hinge, hood rest, and hood require scheduled inspection. If they are damaged, replace them! Use only a Bandit factory replacement part.
  • Page 11 Insert a small branch into the feedwheel(s). If the chips discharge properly, the chipper is clear and normal operation may resume. Bandit Industries, Inc. Safety Booklet viii...
  • Page 12 Striped tape can be obtained through your local Bandit® dealer. The striped tape can be ordered by the foot under part number 900-9901-69.
  • Page 13 When the need arises to replace a machine component with a decal attached, be sure and replace the decal. Replacement decals are available, and can be purchased from the manufacturer or your Bandit Dealer. Peel back about half of the backer paper on the decal. Position it on the flat, dry, clean surface so it is smooth and secure.
  • Page 14 Training is essential! It is extremely important for everyone who operates a wood chipper to be trained. Operating instructions for the chipper are included in Bandit manuals, decals, and training videos with each chipper sold. We also highly recommend that you use the NAA chipper safety video.
  • Page 15 11. _____ The customer has received instruction and fully understands that warranty will not apply if the machine is operated with replacement parts or equipment not manufactured or recommended by Bandit Industries, Inc. 12. _____ The customer has received, been advised, and understands the manuals, and the Safety/Service video supplied with the chipper.
  • Page 16 Copyright 2-17 FORM #Q-111 DATE PURCHASE: ______________________ TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION MODEL: ________________________________ SERIAL NUMBER: _______________________ Please return to: Customer Data Department 6750 Millbrook Road DEALER NAME: ________________________ Remus, MI 49340 _______________________________________ Phone: (800) 952-0178 in USA Phone: (989) 561-2270 Fax: (989) 561-2273...

  • Page 17: Table Of Contents

    MODEL 75 TABLE OF CONTENTS TABLE OF CONTENTS Serial Number Locations ...................5 Safety Procedures ......................6 Equipment Specifications ..................11 Machine Orientation Reference................12 Operation ........................13 Transportation Procedures..................23 Maintenance ......................24 Hydraulics .........................48 Hydraulic Fluid Requirements ................47 Hydraulic Pressure Settings ................48 Control Valve ......................49 Pressure Adjustment Procedures ..............50...

  • Page 19: Serial Number Locations

    MODEL 75 SERIAL NUMBER LOCATIONS TYPICAL CHIPPER SERIAL NUMBER AND/OR WORK ORDER NUMBER LOCATIONS NOTICE 1. Serial Number on side of frame 2. Work Order Number on side of tongue The engine information is located on the engine block. The clutch information is located on the clutch plate (if equipped).
  • Page 20 Improper use of the product can result in severe maintenance and repair of this BANDIT product. As personal injury. Personnel using the equipment must with any piece of equipment, safety should always...

  • Page 21: Safety Procedures

    All tools not in use should machine. You may obtain additional copies of this be secured in a tool box. manual from your Bandit Dealer. Always be cautious and careful when operating Operators must at all times be located within easy your equipment.
  • Page 22 MODEL 75 SAFETY PROCEDURES SAFETY PROCEDURES DANGER Never sit, stand, lay, climb or ride anywhere on this Do not remove the hood pin until the chipper disc machine while it is running, operating, or in transit. has come to a complete stop. The chipper disc will You will be injured.
  • Page 23 MODEL 75 SAFETY PROCEDURES SAFETY PROCEDURES WARNING Do not go near hydraulic leaks. High pressure The knives must be securely fastened and oil easily punctures skin causing serious injury, torqued in position. If one comes loose or breaks gangrene, or death. Avoid burns from fl uid. Hot during operation, the machine will be damaged and fl uid under pressure can cause severe burns.
  • Page 24 All nuts and bolts equipment unless specifically recommended or should be checked daily, especially the anvil and requested by Bandit Industries Inc. knife nuts and bolts for torque and fi t. This chipper is designed to be hand fed only. Do...

  • Page 25: Equipment Specifications

    MODEL 75 EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS Approximate Dimensions & Weights (Dimensions & weights will vary depending on optional equipment) Model 75 Length (Infeed Tray 144” (3.7 m) Down) Width 68” (1.7 m) Height 90” (2.3 m) Weight 2,500 lbs. (1,100 kg) Fuel Capacity 7 Gal.

  • Page 26: Machine Orientation Reference

    MODEL 75 MACHINE ORIENTATION REFERENCE MACHINE ORIENTATION REFERENCE D I S D I A S I D I V E S I D I N F 1/21...
  • Page 27 MODEL 75 OPERATION CONTROLS CORRECT OPERATION OF FEEDWHEEL CONTROL BAR PUSH TO FEEDING REVERSE FEEDING If you are in the area of the infeed hopper, always be prepared to operate and within easy reach of the feedwheel control bar ADJUSTING TENSION FOR CONTROL BAR PIVOT AND LAST CHANCE CABLE Normal wear requires periodical adjustment of pivot tension.
  • Page 28 On engine Engine Controls, Adjusters On engine 16 Electric Engine Throttle Adjuster On engine 17 “Bandit” Lever Throttle Adjuster On engine 18 Optional Feedwheel Trap Door Below optional bottom feedwheel (not shown) Adjustable Height Discharge Drive side, on discharge (not shown) Knives &...
  • Page 29 MODEL 75 OPERATION CONTROL OPERATING PROCEDURES FEEDWHEEL CONTROL BAR FEEDWHEEL TRAP DOOR (DUAL FEEDWHEEL OPTION) The feedwheel control bar operates the feedwheel(s). To make the feedwheel(s) operate SAFETY INSTRUCTIONS so they are pulling material into the machine, pull Before opening or closing the feedwheel trap door:...
  • Page 30 MODEL 75 OPERATION CHIPPER HOOD ENGINE DISABLE PLUG This chipper hood engine disable plug is installed NOTICE for safety purposes. It is designed to shut down the The engine disable plug has a circuit fuse. If engine if the hood pin is not properly in place holding the engine will not start or run, check the fuse fi rst the chipper hood in the closed position.
  • Page 31 Check the fuel level daily, running out and repriming is time consuming. Do The Bandit throttle system has (2) positions, HIGH not over fi ll the tank, there must be expansion space and LOW. Engine R.P.M. is controlled by moving the in the top of the tank.

  • Page 32: Operation

    MODEL 75 OPERATION OPERATION DANGER NOTICE Avoid moving parts. Keep hands, feet, and clothing Do not operate this machine unless all machine away from power driven parts. Keep all guards and controls operate properly. They must function, shift shields in place and properly secured. Contact with smoothly and accurately at all times.
  • Page 33 MODEL 75 OPERATION MACHINE OPERATION Figure 1 Travel Path Turn away from the infeed hopper and keep moving after releasing the limb or log. Release limb or log into chipper Butt end of Travel brush fi rst Path Bandit...
  • Page 34 MODEL 75 OPERATION MACHINE OPERATION NOTICE A wooden push paddle has been provided to Chippers are not designed to cut chunk wood, assist in feeding smaller material. It is the owner’s dimensional lumber including rail road ties, or end and operator’s responsibility to use and keep a cut logs standing on end.
  • Page 35 MODEL 75 OPERATION OPTIONAL HYDRAULIC BUMP BAR OPERATION • The optional Hydraulic Bump Bar comes set from DANGER the factory and is non adjustable. The hydraulic bump bar is an optional device • If the Hydraulic Bump Bar is pushed, the which may help prevent accidents.

  • Page 36: Transportation Procedures

    MODEL 75 TRANSPORTATION PROCEDURES TRANSPORTATION PROCEDURES TRANSPORTATION PROCEDURES BEFORE TRANSPORTING THE MACHINE THE FOLLOWING MUST BE COMPLETED 1. Shut the machine down properly. 11. Check lug nuts and retorque if necessary. Check new units before operation, check again 2. Remove all excess debris. Remove any wood after 20-25 miles (32-40 km) and regularly check or debris which may have collected.

  • Page 37: Maintenance

    Expensive damage to the machine will occur if video, and has been properly trained. You can proper preparation is not taken before welding on purchase additional Bandit manuals, decals and the machine. Be sure to disconnect both battery videos fro a nominal fee.
  • Page 38 Rear Chipper Bearing Bolts 5/8” - 11 NC 200 - 220 271 - 298 Anvil 1/2” - 13 NC 65 - 75 88 - 102 Knife Bolts 5/8” - 11 NC Feedwheel Bearing Bolts 1/2” - 13 NC Feedwheel Bearing Set Screws 3/8”...
  • Page 39 If a problem is found, contact your nearest coolant leaks. Check all hoses, fittings, lines, and dealer or Bandit Industries, Inc. Check the chipper tanks. Do not use fingers or skin to check for base, belly band, and hoods for wear or damage.
  • Page 40 PTO clutch manufacturer’s manual. Bandit the radiator with compressed air or pressurized Industries, Inc. does not warranty clutch failures.
  • Page 41 MODEL 75 MAINTENANCE WEEKLY MAINTENANCE ALTERNATOR & FAN BELTS ON ENGINE WHEEL LUG NUTS Inspect belt condition and replace as needed. Keep lug nuts tight, retorque, replace if needed. As applicable adjust and maintain per the engine STEEL FRICTION AREAS manufacturer’s manual.
  • Page 42 MAINTENANCE WHAT TO CHECK RESULTS ITEM Sharp knives - Bandit approved new Proper sharpening procedures will pay knives or professionally sharpened dividends! Maintaining your chipper knives will reduce fuel consumption and Proper knife width and angle increase the life of your chipper.
  • Page 43 MODEL 75 MAINTENANCE TOP 10 CHIPPER MAINTENANCE ITEMS MAINTENANCE WHAT TO CHECK RESULTS ITEM If the engine does not start, check that the Engine Disable Plug is installed correctly. Chipper Hood Engine will not start or will not stay The terminals on the Engine Disable Plug...
  • Page 44 (Brass) Each knife installed in every new machine at Bandit V I L has the Knife Saver used on it before leaving the Remove brass bar after building up area with hard surface weld factory.
  • Page 45 Only Bandit knives and hardware are recommended Chipper knives must be kept sharp at all times for for use in your Bandit chippers. Only then can you be the ultimate chipper and knife performance. The main assured of a quality product that fi ts and performs the cause of poor cutting performance is dull knives.
  • Page 46 Only Bandit knives and hardware are recommended for use in your Bandit chippers. Only then can you be assured of a quality product that fits and performs the best to the standards of excellence that is expected from the Bandit chipper.
  • Page 47 It is always necessary for your protection to be cracks. If a problem is found, contact your nearest extra careful and wear proper hand protection when dealer or Bandit Industries, Inc. handling knives. Make sure to check both knife pockets.
  • Page 48 Use a feeler to 3.0 mm). gauge or the anvil to knife gauge supplied by Bandit 5. Set the closest knife to this distance. to check the clearance of the first knife to the anvil.
  • Page 49 MODEL 75 MAINTENANCE ANVIL ADJUSTMENT v i l v i l t e r j u s Knife Anvil Bolts v i l Torque To Specs n d l v i l l l e r B l o Anvil...
  • Page 50 MODEL 75 MAINTENANCE UNPLUGGING THE CHIPPER DANGER If the chipper is properly maintained and operated If the discharge or hood need to be removed, correctly, the chipper should not plug. In the unlikely always use some sort of mechanical device like an event that the chipper becomes plugged, do not overhead hoist, loader, lift truck, etc.
  • Page 51 MODEL 75 MAINTENANCE DRIVE BELT REPLACEMENT 1. Before attempting any type of maintenance, 7. Remove the old drive belts and place the new drive disengage clutch, wait for the disc/drum to belts on. The engine may have to be adjusted in come to a complete stop, turn off engine, order to do this.
  • Page 52 MODEL 75 MAINTENANCE BELT TENSION SAFETY INSTRUCTIONS NOTICE Before attempting any type of maintenance, DO NOT IGNORE THIS MAINTENANCE RULE disengage clutch, wait for the disc to come to a complete New belts stretch very soon and must be adjusted stop, turn off engine, remove the ignition key, make several times in the fi rst few hours of operation.
  • Page 53 MODEL 75 MAINTENANCE BELT TENSION CHIPPER FIGURE 1 SHEAVE ENGINE MOUNTING CHECK SHEAVE BOLTS ALIGNMENT WITH STRAIGHT EDGE OR STRING RADIATOR END OF ENGINE ENGINE SHEAVE CLUTCH END OF ENGINE ENGINE ENGINE MOUNTING MOUNTING BOLT BOLT POSITIONING JAM NUTS FIGURE 2...
  • Page 54 7. If a problem is found contact the nearest, authorized Bandit dealer or Bandit Industries. Shaft Figure 2 Shaft Lock Nut...
  • Page 55 Do not spend excessive time trying to remove the pin and coupler. If problems occur during pin and coupler removal, contact your nearest dealer or Bandit Industries. Bandit...
  • Page 56 MAINTENANCE SERVICING / CHANGING FEEDWHEEL BEARING WITH THE GRIP TIGHT BEARING BEHIND FEEDWHEEL MOTOR Your Bandit Chipper may be equipped with a The machine is set up with one set screw bearing tapered lock style (Grip Tight) feedwheel bearing and one Grip Tight bearing because the one Grip...
  • Page 57 50 lbs. (22.7 kg) check for binding of any parts, worn hydraulic valve, or any obstructions. If the required force can not be obtained contact your local dealer or Bandit Industries Inc. NOTICE The hydraulic bump bar valve may trip at diff erent forces, depending on the temperature of the hydraulic fl uid.
  • Page 58 PAINT & DECAL CARE PAINT CARE DECAL CARE To help keep up the appearance of your Bandit Decals located on your Bandit equipment contain equipment and reduce the possibility of surface rust useful information to assist you in operating your follow these steps: equipment safely.
  • Page 59 MODEL 75 MAINTENANCE TIRE MAINTENANCE BASIC WHEEL TORQUE REQUIREMENTS (per mfg.) Keep lug nuts properly tightened, check new unit before operation, after the fi rst 10, 25, and again at 50 miles. Check the torque weekly. DESCRIPTION BOLT SIZE TORQUE (FT.-LBS.) TORQUE (Nm) 5 &...

  • Page 60: Hydraulics

    MODEL 75 HYDRAULICS HYDRAULICS WARNING SAFETY INSTRUCTIONS Before attempting any type of maintenance, Do not operate this machine unless all hydraulic disengage clutch, wait for the disc to come to a complete control devices operate properly. They must function, stop, turn off engine, remove the ignition key, make...

  • Page 61: Hydraulic Fluid Requirements

    Based on the varying temperatures of the area When choosing a hydraulic fl uid ‑ these maximum where Bandit equipment is used, and the high and minimum specifi cations must be met: demand and loads placed on this equipment,...
  • Page 62 These typical hydraulic flows and relief pressure settings are with the engine at full RPM. All settings are subject to change. Equipment Model Standard 75 75 Dual Feedwheel Pump GPM (LPM) (11.0) (22.3) Top Feedwheel GPM (LPM) (11.0)
  • Page 63 MODEL 75 HYDRAULICS CONTROL VALVE RELIEF The relief valve is typically located internally in the control valve. Do not adjust this relief valve above 2500 PSI (172 bar). The relief valve system is a simple spring tension design but small pieces of debris can stick the valve partially open which weakens the feedwheel power.

  • Page 64: Control Valve

    MODEL 75 HYDRAULICS HYDRAULIC PRESSURE ADJUSTMENT PRESSURE CHECK KIT SAFETY INSTRUCTIONS With the engine shut down, make sure the hydraulic oil is clean and the tank is 7/8 full. Start the engine to allow the hydraulic oil to warm up. Before checking or adjusting the hydraulic pressure settings, make sure the engine is shut off and the ignition key is in your possession.
  • Page 65 Place the end of the hose in a clean 5 gallon with Live Hydraulics, for machines without Live (19L) pail. Hydraulics contact your local dealer or Bandit Plug the open port of the control valve or main Industries. relief valve.
  • Page 66 MODEL 75 HYDRAULICS CORRECTING HYDRAULIC PROBLEMS HYDRAULIC PUMP CHECK OUT HYDRAULIC PUMP CHECK WITHOUT USING A FLOW METER To check out the hydraulic pump the mechanic will need a needle type control valve, a pressure gauge capable of reading 5000 psi (344 bar), an in-line 2500 psi (172 bar) relief, and a hose long enough to span between the pump and the hydraulic tank.
  • Page 67 MODEL 75 HYDRAULICS CORRECTING HYDRAULIC PROBLEMS HYDRAULIC PUMP CHECK OUT HYDRAULIC PUMP CHECK OUT USING A FLOW METER (WITH RELIEF) To check out the hydraulic pump the mechanic will need a needle type fl ow meter capable of reading 5000 psi (344 bar) and a long enough hose that will go from the fl ow meter back to the fi rst component.
  • Page 68 MODEL 75 HYDRAULICS CONTROL VALVE DETENT ASSEMBLY AND O-RING REPLACEMENT Tools Required: - Small amount of clean hydraulic oil 3/4” Drag Link - Clean working area, free of debris and shop rags Drive Socket - 3/16” Tee handle hex driver - 3/4”...
  • Page 69 MODEL 75 HYDRAULICS HYDRAULIC SYSTEM TROUBLE SHOOTING SAFETY INSTRUCTIONS Before attempting any type of maintenance, disengage clutch, wait for the disc to come to a complete stop, turn off engine, remove the ignition key, make sure the ignition key is in your possession, install the disc/disc lock pin, and disconnect the battery.

  • Page 70: Electrical

    MODEL 75 ELECTRICAL TYPICAL ELECTRICAL WIRING DIAGRAMS WIRING FOR STANDARD 6 PRONG PLUG AND 6 WIRE MAIN CABLE POWER TO BREAKAWAY - BLACK WIRE BREAKAWAY SWITCH 6 Wire Main Cable Color Code Red R (Brakes & Breakaway Switch) White W (Ground)

  • Page 71: Replacement Parts

    Engine Serial Number machine. Engine Spec. Number Bandit Industries Inc. reserves the right to make CLUTCH COMPONENTS changes in models, size, design, installations and Brand applications on any part without notification.

  • Page 72: Decals

    MODEL 75 REPLACEMENT PARTS DECALS Decal locations may vary, these are general locations. 2,16 7,30 28,29 38,47,48 11,18 20,21 31,46 41,45,49,50 22,40,51 2,4,5,6, 14,15,18 25,26,33, 2,16 43,45 28,29 13,24,35 11,17,18 8,34,,39 1/21...
  • Page 73 Basic Maintenance Check List (Red/White) INST-200 ...Open Chipper Hood...Grease 55 900-8900-32 Basic Safety Decal Kit Push to Activate Momentary Bandit Model 75 Logo Decal INST-229 56 900-8901-53 Feed/Reverse INST-230 Hydraulic Bump Bar Reset NOTICE Optional equipment may require additional decals.

  • Page 74: Infeed Assembly

    MODEL 75 REPLACEMENT PARTS INFEED TRAY ASSEMBLY Part Number Description Part Number Description 626-1001-12 Folding Tray Assembly 626-2001-40 Slam Latch Kit 626-200019 Folding Tray Weldment 900-4917-25 Spring Lock for Slam Latch Kit 900-4917-25 Spring Lock for Folding Tray 1/21...
  • Page 75 MODEL 75 REPLACEMENT PARTS INFEED CONTROL BAR ASSEMBLY Part Number Description Part Number Description Control Bar Assembly 980-100141 Control Valve Handle Linkage 626-100060 (Includes 2 - 4) See page Control Valve 626-200020 Control Bar Weldment 626-300001 Pivot Pin 980-100142 Control Bar Valve Linkage Tab...
  • Page 76 MODEL 75 REPLACEMENT PARTS INFEED HOPPER ASSEMBLY Part Number Description Part Number Description 626-1001-10 Infeed Hopper Assembly 980-0509-25 Last Chance Cable Kit 626-200009 Infeed Hopper Weldment Last Chance Orange Cable 900-4904-28 With Clamps 980-0507-42 Wooden Push Paddle 900-4914-18 Plastic Knob...
  • Page 77 MODEL 75 REPLACEMENT PARTS TOP YOKE ASSEMBLY Part Number Description Part Number Description 907-1000-01 Top Yoke Assembly 986-1110-77 Feedwheel Bearing Backer 907-2000-04 Top Yoke Weldment 10 900-1904-14 Feedwheel Bearing 907-2000-05 Yoke Pivot Pin Feedwheel Bearing Bolt - 11 900-4913-62 1/2”-13NC x 1 1/2”...
  • Page 78 MODEL 75 REPLACEMENT PARTS OPTIONAL BOTTOM YOKE (DUAL FEEDWHEELS) Part Number Description Part Number Description 626-200036 Feedwheel Assembly 900-4909-53 Taper Pin & Nut Feedwheel Shaft, Coupler, and 900-4907-06 Nut for Taper Pin 626-100020 Taper Pin Assembly 900-7901-23 Rubber Coupler Guard...

  • Page 79: Chipper Assembly

    MODEL 75 REPLACEMENT PARTS CHIPPER BASE ASSEMBLY Part Number Description Part Number Description See Page 69 Anvil Chipper Hood - Stationary Half 626-200007 with Manual Swivel Discharge 907-2000-16 Feedwheel Guard Chipper Hood - Stationary 626-3000-68 Chipper Disc/Top Yoke Lock Pin...
  • Page 80 MODEL 75 REPLACEMENT PARTS DISC CHIPPER ASSEMBLY Part Number Description Part Number Description 900-4915-83 Shaft Lock Nut Front Chipper Bearing Bolt - 10 900-4907-14 900-4915-84 Shaft Lock Washer 3/4”-10NC x 3” 11 907-3000-44 Disc Lock Collar 907-3000-25 Disc Draw Nut Washer...
  • Page 81 MODEL 75 REPLACEMENT PARTS DRIVE ASSEMBLY Part Number Description Part Number Description 907-2000-27 Beltshield Assembly Chipper Sheave Bushing Chipper Belt Engine Sheave Bushing Chipper Sheave Engine Sheave Bandit...

  • Page 82: Chipper Knife & Hardware

    MODEL 75 REPLACEMENT PARTS CHIPPER KNIFE & HARDWARE Part Number Description 900-9904-43 1/2” x 4” x 8 3/8” Chipper Knife 5/8”-11NC x 2 1/4” Chipper 900-4912-43 Knife Bolt 900-4903-93 5/8”-11NC Chipper Knife Nut Knife Bolt Torque: 180 ft.-lbs. (245 Nm)

  • Page 83: Anvil & Hardware

    Anvil Hardware Only 14 626-0500-77 (Includes 2 - 12) Anvil Eye Bolt - 900-4905-43 1/2”-13NC x 3 1/2” Anvil & Hardware Kit 15 907-2000-07 (Includes 1 - 12) 900-4906-86 1/2” Lock Washer Anvil Bolt Torque: 75 ft.-lbs. (102 Nm) Bandit...

  • Page 84: Discharge Assemblies

    MODEL 75 REPLACEMENT PARTS MANUAL DISCHARGE Part Number Description Part Number Description 626-200037 Flipper Assembly Discharge Bolt - 900-4909-27 900-4917-25 Spring Lock Pin 1/2”-13NC x 2 1/4” 900-4906-88 1/2” Flat Washer 900-7900-93 Rubber Grip Discharge Lock Nut - 001-3004-02 Flipper Hinge 10 900-4906-84 1/2”-13NC...
  • Page 85 MODEL 75 REPLACEMENT PARTS HEIGHT ADJUSTABLE DISCHARGE Part Number Description Part Number Description 626-200037 Flipper Assembly 626-3004-87 Discharge Chain 900-4901-83 Spring Lock Pin 626-3005-60 Discharge Clean-Out Door 900-7900-93 Rubber Grip 001-3004-00 Clean-Out Door 001-3004-02 Flipper Hinge Clean-Out Door Bolt - 11 900-4906-54 3/8”-16NC x 3/4”...
  • Page 86 MODEL 75 REPLACEMENT PARTS HAND CRANK SWIVEL DISCHARGE Part Number Description Part Number Description 937-200064 T-Handle 900-4917-25 1/2” Spring Lock 900-7900-96 Rubber Grip for T-Handle 900-7900-93 Rubber Grip for Spring Lock Split Steel Bushing - 900-1905-59 Sprocket 900-1908-38 1” OD x 3/4” ID x 1”...

  • Page 87: Hydraulics

    Part Number Description Part Number Description See Pages Hydraulic Pump Hydraulic Tank 80 - 83 See Page 75 Autofeed Valve 900-3900-07 Hydraulic Tank Strainer See Page 75 In-Line Pressure Check Kit 900-3900-09 Filter Head See Page 76 Feedwheel Control Valve...
  • Page 88 O-RING FITTING Examples of straight fittings. Part Number Description Part Number Description See Pages See Page 75 Autofeed Valve Hydraulic Tank 80 - 83 See Page 75 In-Line Pressure Check Kit 900-3900-07 Hydraulic Tank Strainer See Page 76 Feedwheel Control Valve...
  • Page 89 MODEL 75 REPLACEMENT PARTS IN-LINE HYDRAULIC PRESSURE CHECK KIT Part Number Description 900-3920-73 5000 PSI Gauge 900-3929-34 Quick Coupler 900-3914-42 Test Nipple 900-3911-47 Rubber Cap for Test Nipple 900-3924-86 Fitting - JIC 900-3926-11 Ball Valve 900-3922-14 Fitting - Hose In-Line Pressure Check Kit -...
  • Page 90 MODEL 75 REPLACEMENT PARTS CONTROL VALVE R I N K I T Part Number Description Part Number Description Feedwheel Control Valve 900-3901-12 Relief Valve Kit 1 900-3920-06A (Includes 3 - 8, 11) 10 900-3900-71 Detent Kit 900-3905-95 Long Valve Handle Kit...
  • Page 91 MODEL 75 REPLACEMENT PARTS HOSE CLAMP HOSE GUARD Part Number Description 900-3934-76 Hose Guard - 4” Long 900-3934-77 Hose Guard - 6” Long 900-3934-78 Hose Guard - 8” Long FLOW DIVIDER Part Number Description Bolt Locking Plate for 1/2” Double...

  • Page 92: Frame Assembly

    MODEL 75 REPLACEMENT PARTS FRAME ASSEMBLY 1/21...
  • Page 93 MODEL 75 REPLACEMENT PARTS FRAME ASSEMBLY Part Number Description Part Number Description 900-5904-67 Fulton 2” Hitch 2,200 Lb. Torflex Axle 900-5905-83 Assembly (No Brake) 900-5901-46 Adjustable Height 2” Ball Hitch 2,200 Lb. Torflex Axle 900-5904-42 Bulldog 2” Ball Hitch 900-5905-82...
  • Page 94 MODEL 75 REPLACEMENT PARTS HYDRAULIC & GASOLINE TANK ASSEMBLY 1/21...
  • Page 95 MODEL 75 REPLACEMENT PARTS HYDRAULIC & GASOLINE FUEL TANK ASSEMBLY Part Number Description Part Number Description 7 Gallon Hydraulic Tank 900-3966-28 Cap for Fuel Tank 626-1001-36 Assembly 900-3967-52 Fuel Tank Strap 7 Gallon Hydraulic Tank 900-3967-53 Carb Canister 626-200018 Weldment...
  • Page 96 MODEL 75 REPLACEMENT PARTS HYDRAULIC & DIESEL FUEL TANK ASSEMBLY 1/21...
  • Page 97 MODEL 75 REPLACEMENT PARTS HYDRAULIC & DIESEL FUEL TANK ASSEMBLY Part Number Description Part Number Description 7 Gallon Hydraulic Tank Return 1/4” NPTF Elbow 1/4” 626-1001-36 900-3908-77 Assembly Hose Barb x 1/4” Hose Barb 7 Gallon Hydraulic Tank Return 1/4” NPTF Elbow 3/16”...
  • Page 98 MODEL 75 REPLACEMENT PARTS HYDRAULIC BUMP BAR Version 2 1/21...
  • Page 99 MODEL 75 REPLACEMENT PARTS HYDRAULIC BUMP BAR Version 2 Part Number Description Part Number Description Hydraulic Bump Bar Assembly 900-4906-88 1/2” Flat Washer 980-2005-44 - 35” Infeed 900-4906-73 1/2”-13NC x 1 3/4” Bolt Hydraulic Bump Bar Assembly 980-3011-43 Spring Tube for Spring Assist 626-2002-07 - 42”...
  • Page 100 MODEL 75 REPLACEMENT PARTS HYDRAULIC BUMP BAR 1/21...
  • Page 101 MODEL 75 REPLACEMENT PARTS HYDRAULIC BUMP BAR Part Number Description Part Number Description 905-3001-99 Valve Push Bar Cover Bump Bar Infeed Tray 980-2003-37 Assembly - 35” Infeed Reset Pivot Handle Cover 980-2003-42 Assembly - 35” Infeed Bump Bar Infeed Tray...

  • Page 102: Service Record

    MODEL 75 SERVICE RECORD SERVICE RECORD SERVICE RECORD DATE DESCRIPTION AMOUNT 1/21...
